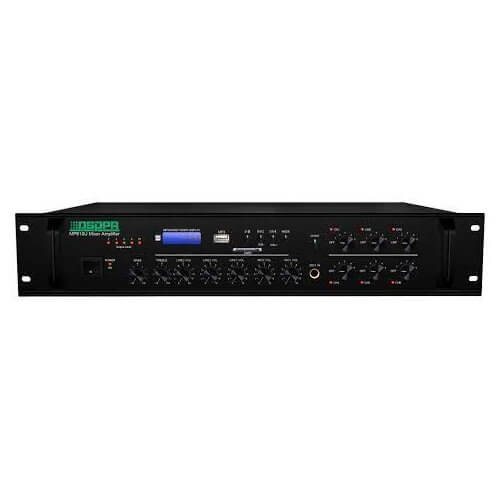

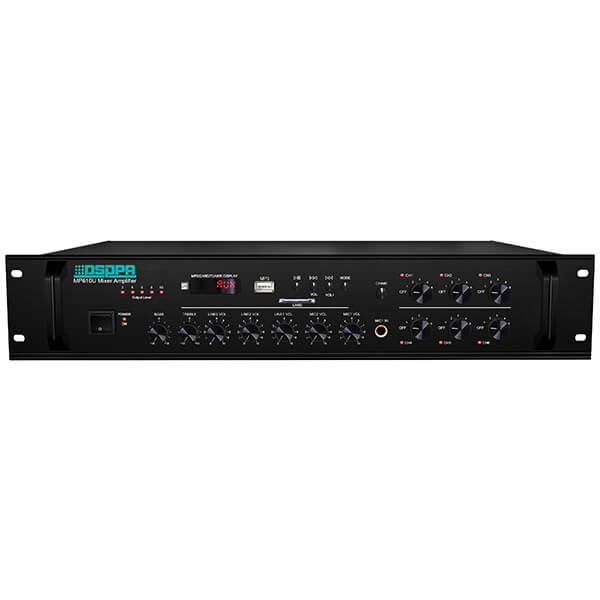

DSPPA MP-610U BT: 250W 6-Zone Mixer Amplifier with USB

The DSPPA MP-610U is a powerful 250W 6-zone mixer amplifier designed for versatility in sound distribution across various environments. With features such as USB, SD card support, FM radio, and Bluetooth connectivity, it is ideal for applications in supermarkets, classrooms, and other public spaces.

Features

• High Power Output: Rated at 250W, suitable for driving multiple speakers in different zones.
• Multiple Input Options: Includes 4 unbalanced microphone inputs and 3 aux inputs for flexible connectivity.
• Zone Control: 6-zone selector allows for individual volume control and output level indication for each zone.
• Built-in MP3 Player: Supports USB and SD card playback, along with FM radio functionality.
• User-Friendly Remote Control: Infrared remote allows for easy operation of MP3/TUNER functions including volume adjustment and EQ settings.
• Protection Mechanisms: Features extensive protection from short-circuit, overload, and high temperature to ensure reliable operation.
• Automatic Cooling System: Ensures quiet operation even during extended use.
• Bass and Treble Control: Provides tone control to enhance audio quality according to user preference.

Specifications

• Model: MP-610U
• Rated Output: 250W
• Speaker Output: 100V & 4-16 Ω
• Input Sensitivity: MIC: 3.0mV (±0.5mV), LINE: 300mV (±50mV)
• Frequency Response: 80Hz - 16kHz (±3dB)
• Distortion: Less than 1% (at 1kHz, 1/3 rated output voltage)
• Signal-to-Noise Ratio: MIC: more than 71dB, LINE: more than 85dB
• Protection: DC voltage; overload; short-circuit.
• Power Requirements: AC 220V - 240V / 50Hz - 60Hz
• Power Consumption: 500W
• Outer Packing Size: (L×W×H) 520×430×195 mm
• Unit Size: (L×W×H) 418×338×88 mm
• Gross Weight: 14kg
• Net Weight: 16kg
