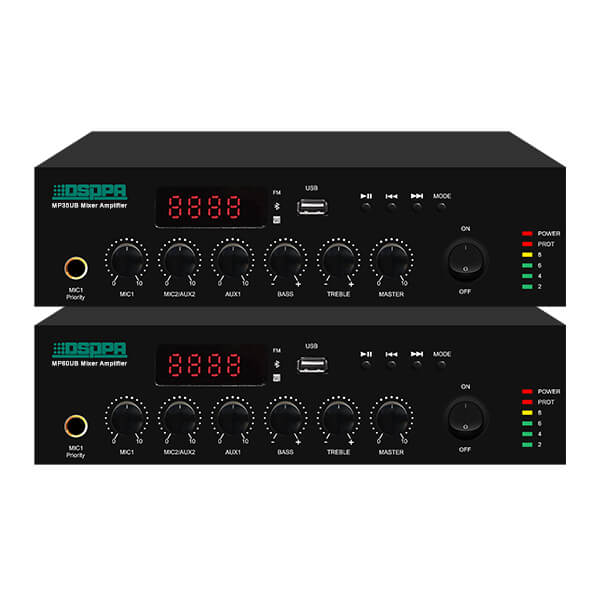

DSPPA MP-60UB: 60W Mini Mixer Amplifier with USB & Bluetooth.

The DSPPA MP-60UB is a versatile 60W mini digital mixer amplifier designed for modern audio needs. Featuring USB, FM, and Bluetooth connectivity, it is perfect for small venues like classrooms, retail stores, and cafes. With individual volume control for microphones and auxiliary inputs, this amplifier ensures high-quality audio performance tailored to your environment.

Features

• Compact Design: The MP-60UB is a 1.5U sized amplifier, making it easy to integrate into various setups.
• Multiple Connectivity Options: Equipped with USB, FM radio, and Bluetooth for seamless audio streaming.
• Flexible Speaker Output: Supports 70V/100V and 4-16Ω speaker outputs, allowing for diverse speaker configurations.
• Multiple Inputs: Features 2 microphone inputs (one XLR and one 6.3mm jack), 2 auxiliary inputs, and EMC signal input for emergency situations.
• Individual Volume Control: Offers separate volume control for each microphone and auxiliary input, plus bass and treble adjustments.
• Remote Control Capability: Includes support for infrared remote control for convenient operation.
• Built-in Protection: Features short-circuit, overload, and high-temperature protection to ensure safe operation.

Specifications

• Model: MP-60UB
• Rated Power: 60W
• MIC1 Input Sensitivity: 7.5mV±1mV
• MIC2 Input Sensitivity: 7.5mV±1mV
• AUX1 Input Sensitivity: 360mV±10%
• AUX2 Input Sensitivity: 360mV±10%
• EMC Input Sensitivity: 200Hz~10kHz (±3dB)
• MIC Frequency Response: 200Hz～10kHz (±3dB)
• AUX Frequency Response: 80Hz～16kHz (±3dB)
• Noise Level: <5mV (4Ω load output terminal)
• Total Harmonic Distortion (THD): <1% at 1KHz
• Treble Adjustment: 10dB (±2)
• Bass Adjustment: 10dB (±2)
• Rated Power Supply: AC~110-240V
• Output Voltage: 70V, 100V (Constant voltage output)
• Priority: EMC > MIC1 > AUX1/AUX2/MIC2
• Machine Size (D×W×H): 198×247×66mm
• Packing Size: 343×302×121mm (1PC)
• Maximum Packing Size: 630×355×283mm (4PCS)
• Net Weight: 2.6kg
• Gross Weight: 3.25kg
