DSPPA MP-600PIII: 250W Mixer Amplifier, 3 Mic &

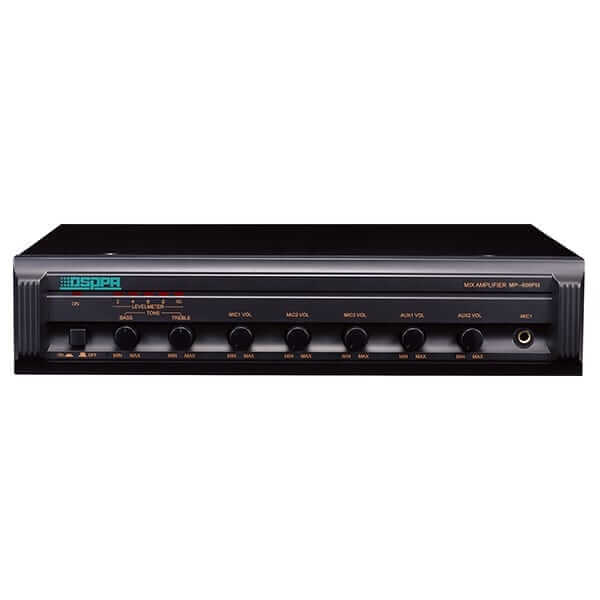

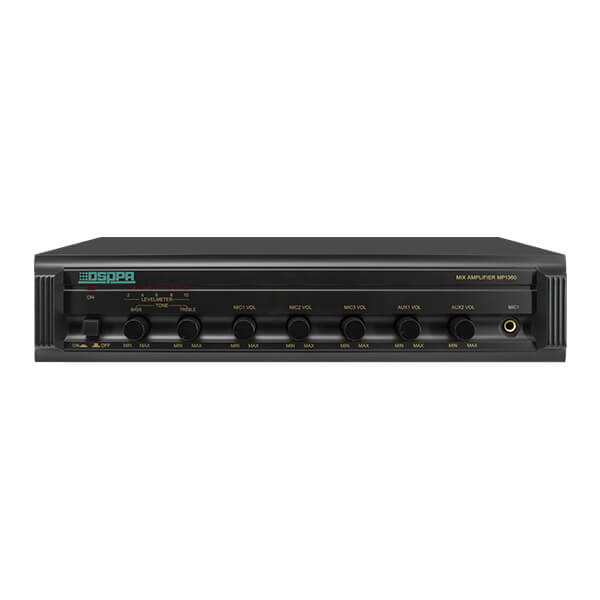

The DSPPA MP-600PIII is a powerful 250W mixer amplifier designed for various applications such as supermarkets and classrooms. With three microphone inputs and two auxiliary inputs, it provides versatile connectivity options for audio mixing. The amplifier features priority and muting functions for Mic 1, allowing for seamless integration into public address systems.

Features

• High Power Output: Rated at 250W, suitable for large spaces.
• Multiple Inputs: Equipped with 3 microphone inputs and 2 auxiliary inputs.
• Priority Function: Mic 1 has a priority and muting function to override other signals.
• Bass and Treble Controls: Allows for tone adjustment to suit different audio environments.
• Complete Protection: Includes short circuit, thermal protection, current limiter, and overload protection.

Specifications

• Rated Output Power: 250W

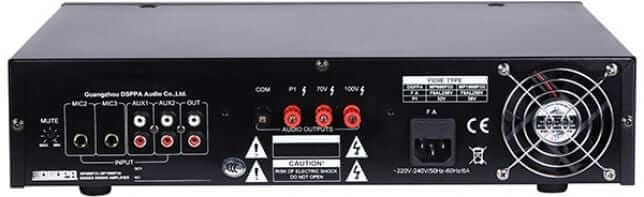

• Speaker Output: 70V, 100V & 4-16 Ω
• Input Sensitivity: Mic 2, 3: 600Ω, ≤3mV; AUX 1, 2, MIC 1: 10kΩ, ≤300mV
• Frequency Response: 50Hz - 16kHz (±3dB)
• Distortion: < 1% at 1kHz, 1/3 rated output voltage
• Signal to Noise Ratio: Mic 1, 2, and 3: >75dB; AUX 1 and 2: >80dB
• Power Requirements: AC 220V-240V/50Hz-60Hz
• Power Consumption: 500W
• Outer Packing Size: (L×W×H) 520×430×195 mm
• Unit Size: (L×W×H) 420×338×88 mm
• Gross Weight: 10.3 kg
• Net Weight: 8.5 kg
