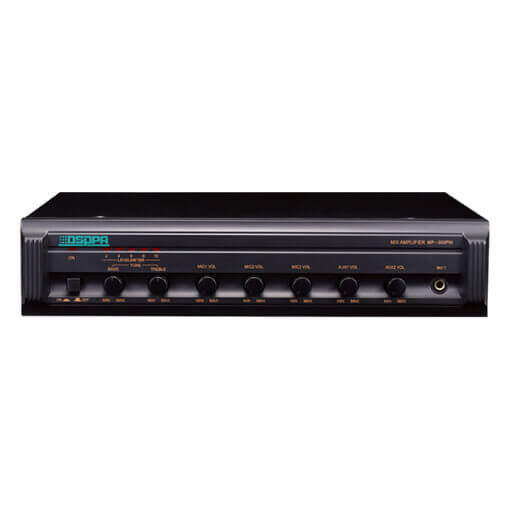

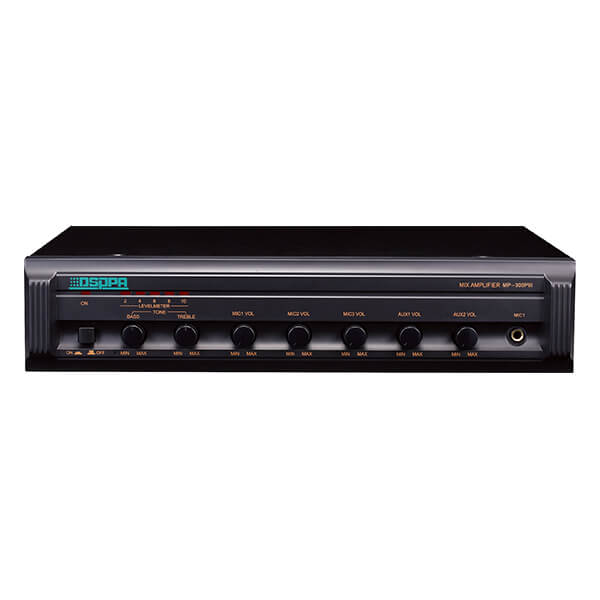

DSPPA MP-300PIII 120W Mixer Amplifier with 3 Mic & 2

The DSPPA MP-300PIII is a powerful 120W line mixer amplifier designed for versatile audio applications. Featuring three microphone inputs and two auxiliary inputs, it is perfect for use in environments such as supermarkets, classrooms, and public address systems. With built-in protection features and adjustable sound controls, this amplifier ensures high-quality audio performance and reliability.

Features

• Powerful Output: Rated at 120W, suitable for various audio applications.
• Multiple Inputs: Equipped with 3 microphone inputs and 2 auxiliary inputs, allowing for flexible audio source management.
• Priority Function: Mic 1 features a priority and muting function, ensuring important announcements are heard.
• Sound Control: Individual volume controls for each microphone and auxiliary input, along with bass and treble adjustments.
• Comprehensive Protection: Includes short circuit protection, thermal protection, and current limiting to safeguard the device.
• Versatile Speaker Output: Supports 70V, 100V, and 4-16 Ω speaker connections.

Specifications

• Model: MP300PIII
• Rated Output: 120W
• Speaker Output: 70V, 100V & 4-16 Ω
• Input Sensitivity: Mic2,3: 600Ω, ≤3mV, unbalanced; AUX1,2, MIC1: 10kΩ, ≤300mV
• Frequency Response: 50Hz - 16kHz (±3dB)
• Distortion: < 1% at 1kHz, 1/3 rated output voltage
• Signal to Noise Ratio: Mic1,2 and 3: >75dB; AUX1 and 2: >80dB
• Protection: AC fuse; DC voltage; overload; short-circuit
• Power Requirements: AC 220V-240V/50Hz-60Hz
• Power Consumption: 250W
• Outer Packing Size: (L×W×H) 520×430×195 mm
• Unit Size: (L×W×H) 420×338×88 mm
• Gross Weight: 10.3 kg
• Net Weight: 8.5 kg
