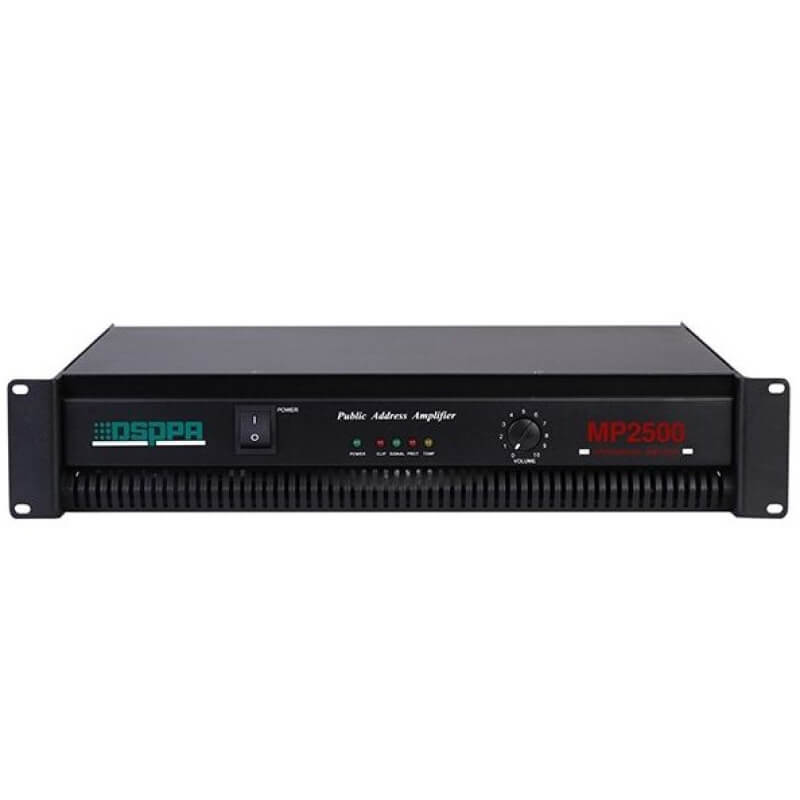

DSPPA MP-2500 - 650W 70V/100V/4-16Ω Power Amplifier

The DSPPA MP-2500 is a high-performance power amplifier designed for commercial and industrial public address applications. With a robust output of 650W, it features versatile speaker outputs and comprehensive protection mechanisms, making it an ideal choice for any sound reinforcement setup.

Features

• Rack Mount Design: Compact 2U height for easy installation in standard racks.
• Versatile Output Options: Supports 70V, 100V, and 4-16Ω speaker outputs for flexible speaker matching.
• Balanced and Unbalanced Inputs: Offers both types of line inputs for compatibility with various audio sources.
• Comprehensive Protection: Built-in safeguards against clip, short circuit, high temperature, and overload.
• LED Indicators: Provides visual feedback for power, signal, clip, protection, and temperature status.
• Cooling System: Equipped with a reliable radiator cooling fan for efficient heat management.

Specifications

• Model: MP2500
• Rated Power: 650W
• Rated Output Voltage: 70V/100V/4-16Ω
• Input Sensitivity: 0dBu
• S/N Ratio: > 80dB
• Damping Factor: 200:1
• Input CMRR: Greater than 90dB
• THD into 4Ω/1kHz: <0.3%
• Frequency Response: 50Hz ~ 15kHz (±3dB)
• Slew Rate: >15V/microsecond
• Power Consumption: 700W
• Power Requirement: AC220~240V/50~60Hz
• Unit Size (mm): 483 x 380 x 88
• Net Weight: 39Kg
