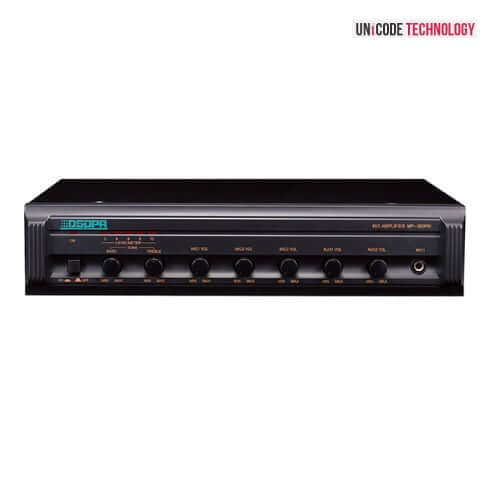

DSPPA MP-200PIII: 60W Mixer Amplifier with 3 Mic &

The DSPPA MP-200PIII is a versatile 60W mixer amplifier designed for various applications, featuring 3 microphone inputs and 2 auxiliary inputs. It offers priority and muting functions for Mic 1, ensuring clear and prioritized audio output. With bass and treble controls, this amplifier delivers exceptional sound quality, making it ideal for environments such as supermarkets, classrooms, and more.

Features

• 70V/100V & 4-16 Ω Flexible Speaker Output: Supports a wide range of speaker configurations.
• 3 MIC Inputs: Allows multiple microphones to be connected simultaneously.
• Priority and Muting Function: Mic 1 can override other input signals for clear communication.
• 2 AUX Line Inputs & 1 AUX Line Output: Facilitates easy connection to additional audio sources.
• Individual Volume Control: Each microphone and line input has its own volume control for precise adjustments.
• Bass and Treble Control: Tailor the sound to your preference for optimal audio performance.
• Complete Protection: Includes short circuit and thermal protection, current limiter, and overload protection.
• LED Level Meter: Provides a visual indication of audio levels for easy monitoring.

Specifications

• Model: MP200PIII
• Rated Output Power: 60W
• Output Regulation: ≤3dB (from off-load to full load)
• Speaker Output: P1, 70V, 100V
• AUX Output: ≥700 mV
• Input Sensitivity: Microphone: ≤3.3mV (unbalanced), Line: ≤300mV (unbalanced)
• Frequency Response: 80Hz-16KHz (±3dB)
• Distortion: ≤1% (1KHz, normal operating status)
• S/N Ratio: Line: ≥74dB
• Tone: Bass: ±10dB (100Hz), Treble: ±10dB (10kHz)
• Protection: AC fuse; DC voltage; overload; short-circuit.
• Power Requirements: AC 220V/50Hz
• Rated Power Consumption: 120W
• Outer Packing Size: (L×W×H) 520×430×195 mm
• Unit Size: (L×W×H) 483×338×88 mm
• Gross Weight: 10.3kg
• Net Weight: 8.5kg
