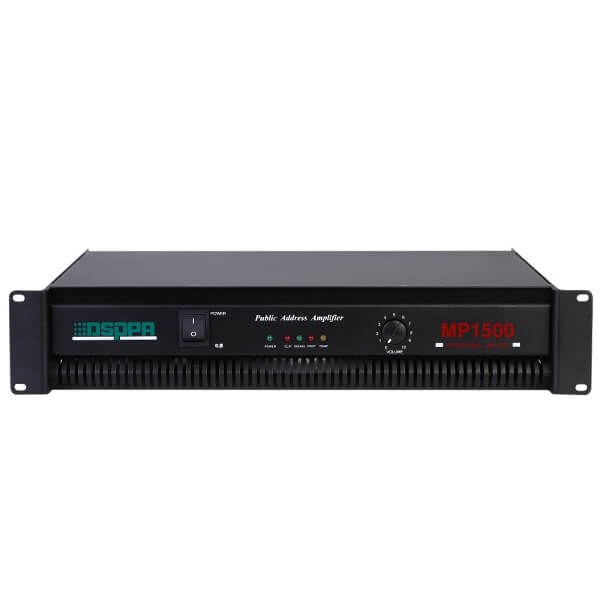

DSPPA MP-1500 - 350W 70V/100V Power Amplifier

The DSPPA MP-1500 is a powerful 350W class B power amplifier designed for commercial and industrial public address applications. Its robust design features a 2U rack mount, offering versatile connectivity and comprehensive protection mechanisms, making it ideal for various audio setups.

Features

• Powerful Output: Delivers a rated power of 350W, suitable for large venues.
• Versatile Speaker Outputs: Supports 70V, 100V, and 4-16 ohm speaker outputs for flexible installation.
• Rack Mount Design: Compact 2U design for easy integration into standard racks.
• Balanced and Unbalanced Inputs: Accommodates both balanced and unbalanced line inputs for each channel.
• Complete Protection: Features indicators for power, signal, clip, protection, and temperature, ensuring safe operation.
• Cooling System: Equipped with an efficient radiator cooling fan for optimal performance under load.

Specifications

• Model: MP1500
• Rated Power: 350W
• Rated Output Voltage: 70V/100V/4-16 ohm
• Input Sensitivity: 0dBu
• Signal-to-Noise Ratio: > 80dB
• Damping Factor: 200:1
• Input CMRR: Greater than 90dB
• Total Harmonic Distortion (THD): <0.3% into 4Ω at 1kHz
• Frequency Response: 50Hz ~ 15kHz (±3dB)
• Slew Rate: >15V/microsecond
• Power Consumption: 700W
• Power Requirement: AC220~240V / 50~60Hz
• Unit Size (mm): 483 x 380 x 88
• Net Weight: 14.5 kg
