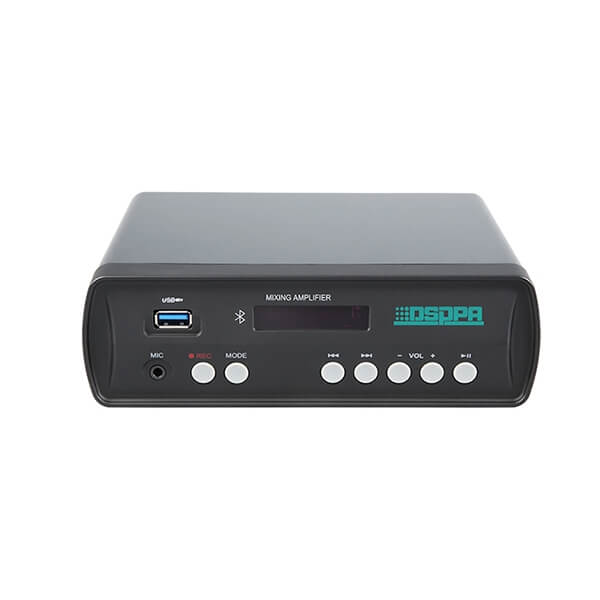

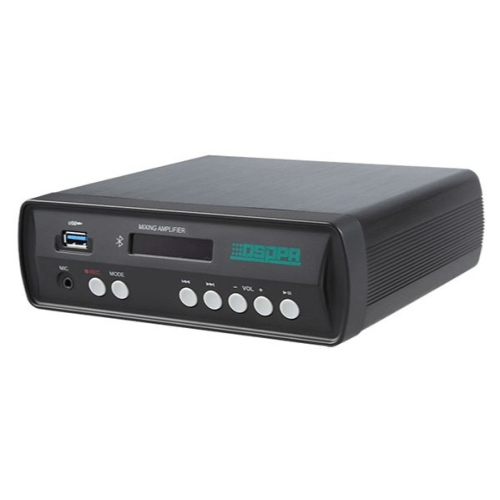

DSPPA MINI-60: 2x30W Class D Amp with USB, Bluetooth, SD

The DSPPA MINI-60 is a compact and efficient 2 x 30W Class D amplifier designed for versatile audio applications. With built-in USB, Bluetooth, and SD card support, it is perfect for small venues like shops, restaurants, and classrooms. Its user-friendly features, including a digital display and remote control, make it an ideal choice for enhancing sound quality in any environment.

Features

• Powerful Output: Delivers 2 x 30W power, suitable for 4Ω-16Ω speakers.
• Multiple Input Options: Supports USB, Bluetooth, and SD card for diverse audio sources.
• Microphone Priority: Front mic input with priority and muting function for clear announcements.
• High Efficiency: Class D design ensures energy-saving performance without compromising sound quality.
• Compact and Durable: Aluminum-alloy casing provides a robust and portable solution for various settings.
• User-Friendly Controls: Features digital volume control and LED display for easy operation.

Specifications

• AUX Input Sensitivity: -6dBV
• MIC Input Sensitivity: -45dBV
• Power Output: 2 x 30W
• Static Power Consumption: 0.24W
• Maximum Power Consumption: 90W
• Harmonic Distortion: < 1%
• Signal to Noise Ratio: MIC: 73dB, AUX: 55dB
• Power Supply Range: DC 12V~24V
• Frequency Response: MIC: 100Hz~16kHz, AUX: 20Hz~22kHz
• Dimensions (L x W x H): 180 x 145 x 60 mm
• Net Weight: 0.8 kg
• Packing Size (L x W x H): 287 x 223 x 108 mm
• Gross Weight: 1.0 kg
