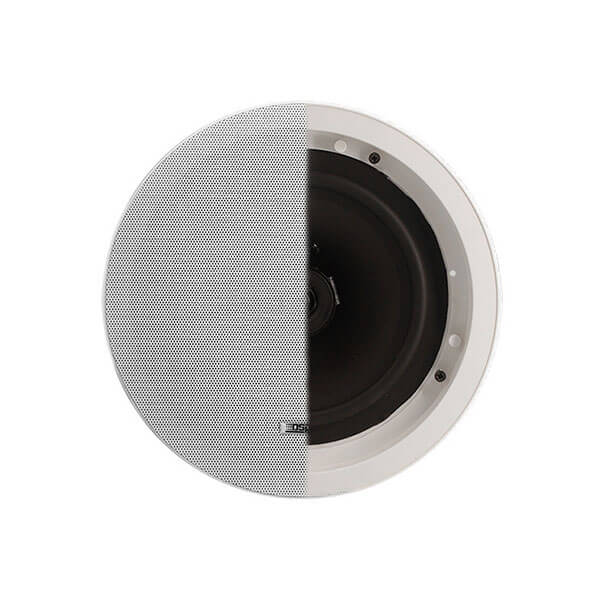

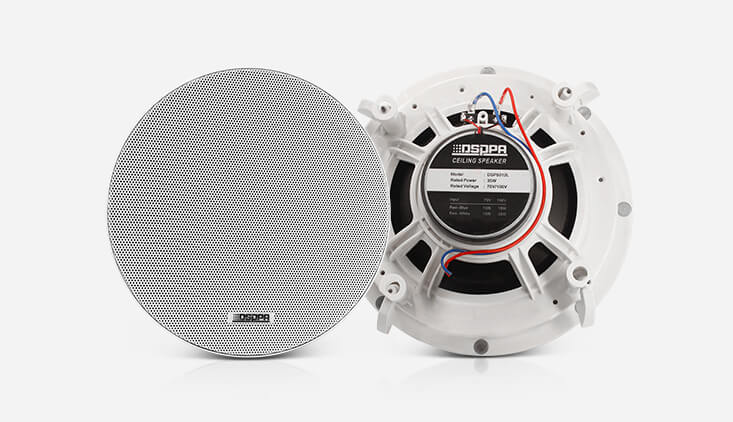

DSPPA DSP-5012 - 35W 8" Coaxial Frameless Ceiling Speaker

The DSPPA DSP-5012 is a high-performance 35W coaxial frameless ceiling speaker, designed for easy installation and exceptional sound quality. With its ultra-narrow edge design and RAL white coating, it seamlessly fits into any indoor environment, making it an ideal choice for both commercial and residential applications.

Features

• Ultra-Narrow Edge Design: The speaker features an ultra-narrow edge with RAL white coating, allowing it to blend perfectly into any indoor setting.
• High Output Power: Equipped with an 8-inch bass unit, this speaker delivers powerful sound with a sensitivity of 86±3dB and SPL of 101±3dB.
• Durable Construction: The magnetic body is made from engineering plastics, and the cone paper is processed from algae heat pressing with waterproof coating for enhanced durability.
• Crisp Treble Unit: The 14mm treble unit ensures clear and crisp high frequencies, providing a wider range coverage.
• Easy Installation: The rotary clip design allows for quick and hassle-free installation, making it suitable for various applications.
• High Reliability: Compliant with IEC268-5 power handling capability standards, it can operate continuously at rated power for 100 hours and withstand twice the rated power for short durations.

Specifications

• Model: DSP5012
• Speaker Unit: 8"×1, 2"×1
• Rated Power: 35W
• Rated Voltage: 70V/100V
• Sensitivity: 86±3dB
• SPL: 101±3dB
• Frequency Response: 55Hz-20KHz
• Product Size: Φ255×100mm
• Weight: 1.4kg
