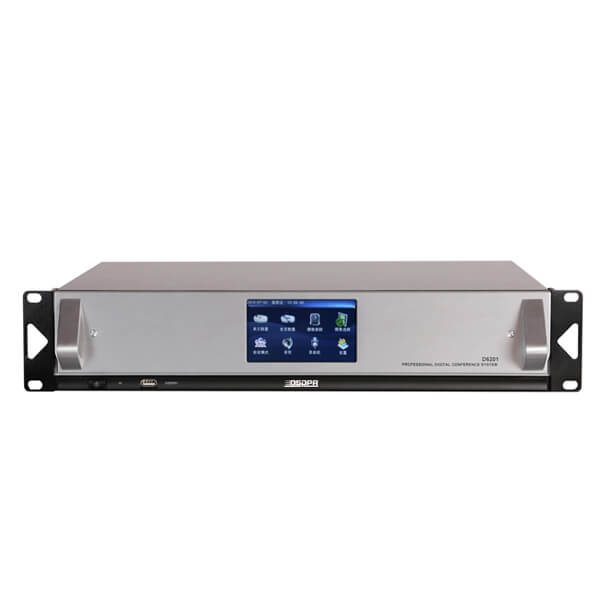

DSPPA D-6201: Smart Conference Controller with 4.3" Touch Screen

The DSPPA D-6201 is an advanced digital conference controller designed for seamless management of conferences. Featuring a 4.3" high-definition color touch screen, it supports up to 128 conference units and can be expanded to 4096 units. This controller integrates high-performance DSP technology, automatic camera tracking, and various data management functions, making it ideal for high-end conference environments.

Features

• 4.3" High-Definition Touch Screen: Provides a user-friendly interface for easy operation.
• Supports Up to 128 Conference Units: Can be expanded to a maximum of 4096 units with extensions for large conferences.
• Built-in DSP Technology: Offers multiple EQ modes for optimal audio performance tailored to different conference situations.
• Automatic Camera Tracking: Connects to four cameras for enhanced visual engagement during conferences.
• Data Management Functions: Includes voting, timed speech, and conference check-in features for efficient management.
• Multi-Language Support: Displays messages in both Chinese and English for international usability.
• Energy Saving Features: Users can adjust system time and backlight duration to conserve energy.
• Inspection Functionality: Allows for automatic or manual inspection of conference units to ensure functionality.

Specifications

• Model: D6201
• LINE Input Voltage: 250 (±30) mV
• ALARM Input Voltage: 250 (±30) mV
• LINE Output Voltage: 1 (±0.1) V
• BALANCE Output Voltage: 1 (±0.1) V
• Frequency Response: 20Hz-20kHz (±3dB)
• SNR: >80 dB
• Harmonic Distortion: <0.3%
• Output Power: ≤110W/3-way, 24V
• Max Power: 350W
• Static Power Consumption: 15W
• Quantity of Maximum Units: 128 pcs
• Control Interface: RJ45, RS232, RS422
• Power Source: AC220V~50Hz/320W
• Net Weight: 6.9 kg
• Dimension: 484×385×88 mm
