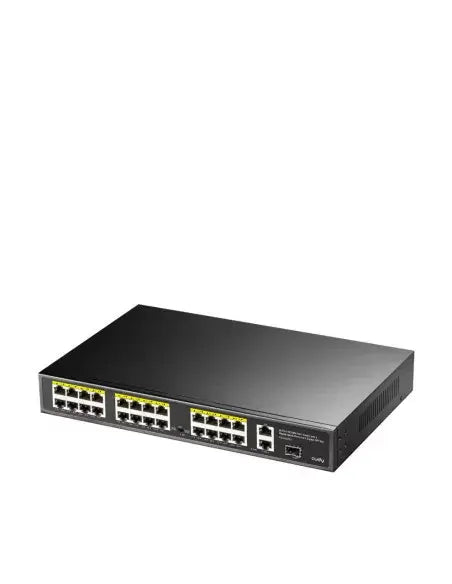

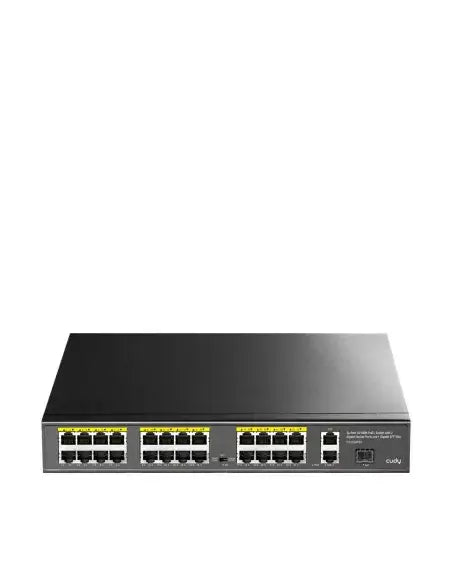

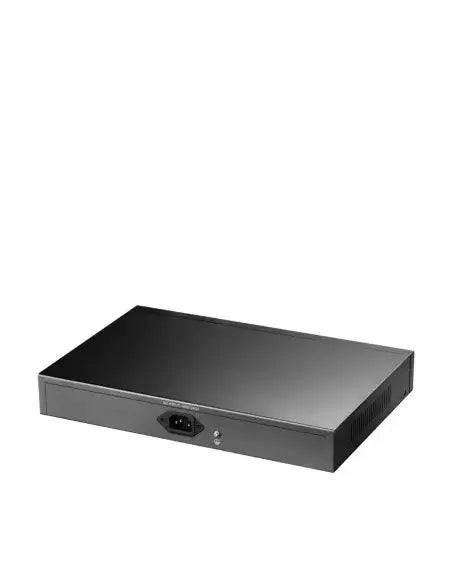

Cudy FS1026PS1 24 Port Fast Ethernet PoE Switch - 290W, 2 Gigabit

The Cudy FS1026PS1 is a powerful 24-port Fast Ethernet PoE+ switch designed to enhance your network capabilities. With support for 290W total power budget, it is ideal for powering multiple devices such as IP cameras, VoIP phones, and wireless access points, ensuring reliable performance in various environments.

Features

• 24 PoE Ports: Equipped with 24 10/100M PoE ports to power devices directly over the network cable.
• 2 Gigabit Uplink Ports: Features two Gigabit Ethernet uplink ports for high-speed connections.
• 1 SFP Slot: Includes one SFP slot for flexible fiber connectivity options.
• IEEE Standards Support: Complies with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at standards for reliable network performance.
• VLAN Support: Offers VLAN mode for enhanced network segmentation and security.
• Extended Range: Capable of extending network reach up to 250 meters.
• Rack Mountable: Designed for easy installation in a 1U rack mount configuration.
• Automatic Port Flip: Supports auto MDI/MDIX for easy cable management.

Specifications

• Total PoE Power Budget: 290W
• Max Power per Port: 30W (IEEE802.3at), 15.4W (IEEE802.3af)
• Ethernet Ports: 24 x 10/100M PoE ports, 2 x Gigabit Ethernet ports, 1 x SFP port
• Operating Temperature: -20°C to 50°C
• Dimensions: 320mm (L) x 210mm (W) x 46mm (H)
• Weight: 1.9 kg
• Power Input: AC 100-240V, 50/60Hz
