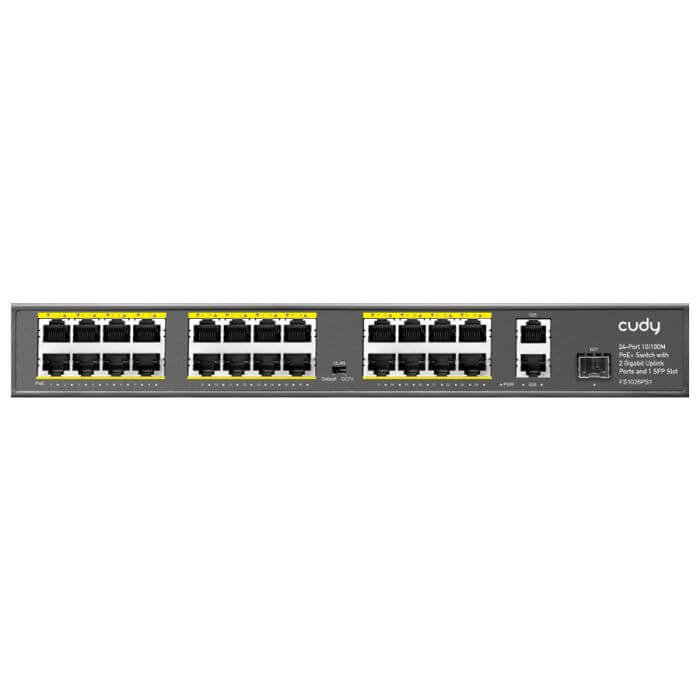

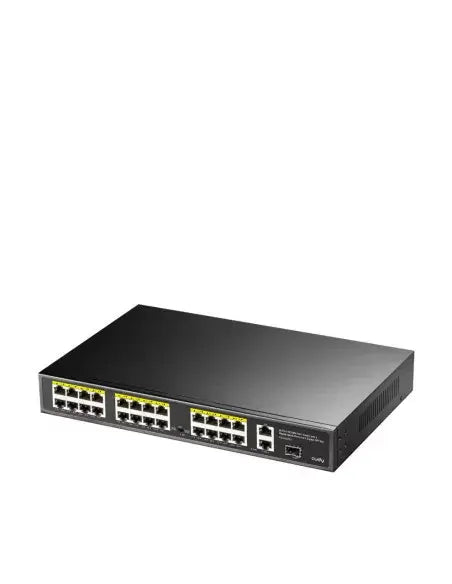

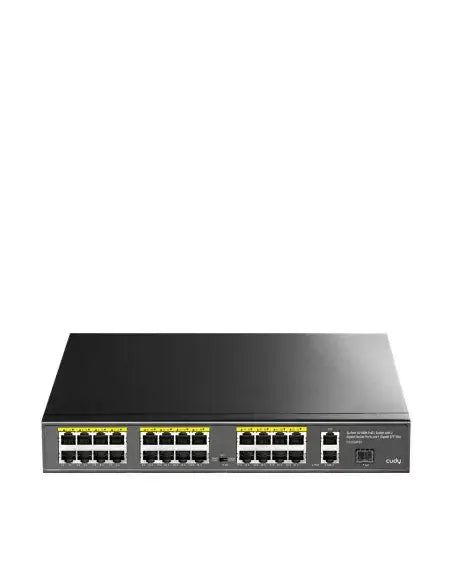

Cudy 24-Port PoE Switch - 290W, Gigabit, 1 SFP

The Cudy 24-Port PoE Switch (FS1026PS1) is an advanced networking solution designed for businesses requiring efficient power and data management. It features 24 PoE+ ports, 2 Gigabit uplink ports, and 1 SFP slot, making it ideal for powering devices such as IP cameras, VoIP phones, and wireless access points. With a robust 290W power budget, this switch supports a maximum of 30W per PoE port, ensuring reliable performance for all connected devices.

Features

• 24 PoE+ Ports: Supports IEEE802.3af/at standards for powering devices over Ethernet.
• Gigabit Uplink: 2 Gigabit Ethernet ports for high-speed data transfer.
• SFP Slot: 1 SFP slot for fiber uplink connectivity.
• VLAN Support: Configurable VLAN mode for enhanced network segmentation.
• Extended Range: Supports an extended range of up to 250 meters on specific ports.
• Rack-Mountable: Designed for easy installation in standard 1U server racks.

Specifications

• Ethernet Ports: 24 x 10/100 Mbps PoE ports, 2 x 10/100/1000 Mbps Gigabit ports
• Max Power Consumption: 300W
• Max Power per PoE Port: 30W
• Power Input: 100-240V AC, 50/60Hz
• Dimensions: 320 mm x 210 mm x 50 mm
• Weight: 1.9 kg
• Operating Temperature: -20°C to 50°C
• Supported Protocols: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
