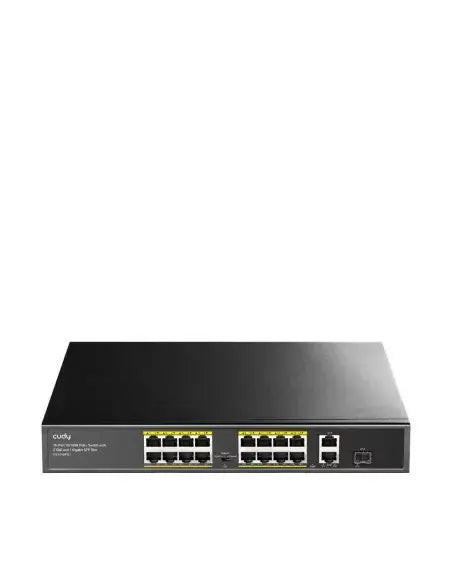

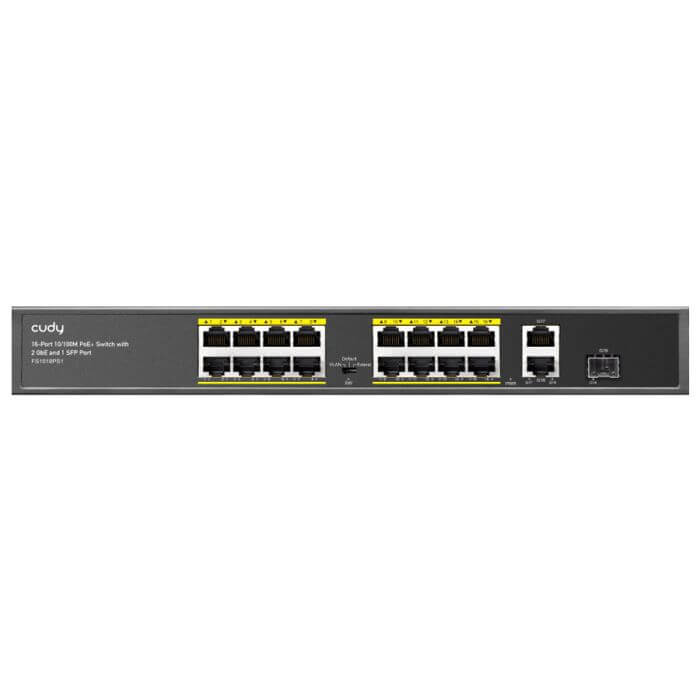

Cudy 16-Port PoE Switch - 190W, Gigabit, 1 SFP

The Cudy 16-Port Fast Ethernet PoE Switch (Model: FS1018PS1) is designed for adaptive and scalable networks, providing efficient power delivery and high-speed connectivity for various devices. With 16 PoE+ ports and a total power budget of 190W, this switch is ideal for powering IP cameras, access points, and other PoE-enabled devices in a reliable manner.

Features

• 16 PoE Ports: Equipped with 16 802.3af/at PoE ports to power devices directly over Ethernet.
• Gigabit Connectivity: Includes 2 Gigabit Ethernet ports for high-speed data transfer.
• SFP Uplink Port: Features 1 SFP slot for flexible network expansion.
• VLAN Support: Supports VLAN configuration for enhanced network segmentation.
• Extender Mode: Allows for extended transmission distance of up to 250m at 10Mbps on selected ports.
• Surge Protection: Built-in surge protection for both power and data ports to ensure device safety.
• Rack-Mountable: Designed for easy installation in a standard rack setup.

Specifications

• Ethernet Ports: 16x 10/100; 2x 10/100/1000
• Max Power Consumption: 10W
• Power Output: 802.3af/at PoE on Ports 1~16

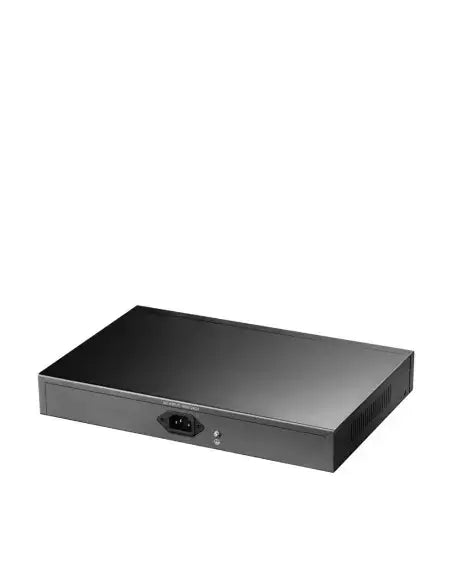

• Power Input: 1x IEC Power Cord (Included)
• SFP Ports: 1x 1.25Gbps
• Operating Temperature: 0°C to 40°C
• Dimensions: 320 x 210 x 50 mm
• Weight: 1.8 kg
• Supported Voltage Range: 100-240V
