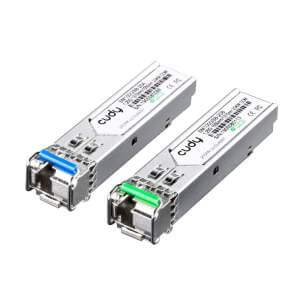

Cudy 1.25G LC Bi-Directional SFP Single-Mode 20km

The Cudy CD-SFP-SMB is an efficient and cost-effective solution for single-mode fibre deployments, offering bi-directional transmission at 1.25Gbps over distances of up to 20km. This product is designed to optimize connectivity while reducing installation costs by utilizing a single fibre for duplex transmission.

Features

• Bi-Directional Technology: Enables duplex transmission over a single fibre using two distinct wavelengths.
• High Data Rate: Supports data transmission speeds of 1.25Gbps.
• Long Distance Support: Capable of transmitting up to 20km using single-mode fibre.
• Cross-Vendor Compatibility: Designed with LC connectors for compatibility across various vendors.
• Environmentally Friendly: Complies with RoHS and SFF8472 standards for sustainability.
• Low EMI and ESD Protection: Ensures reliable performance with minimal interference.

Specifications

• Connector: LC
• Data Rate: 1.25Gbps
• Form Factor: SFP (BiDi)
• Mode: Single Mode
• Supported Distance: 20km
• Wavelength: 1310nm / 1550nm
• Power Supply: +3.3V
• Operating Case Temperature: 0 to 70 °C
• Tx Power: -9 to -3 dBm
• Rx Power: -26 to -3 dBm
