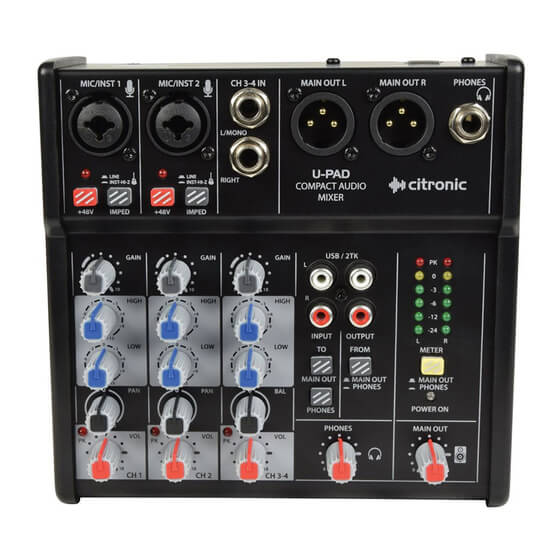

Citronic U-PAD Compact Music Mixer with 2-Channel USB Interface

The Citronic U-PAD Compact Mixer is an essential addition to any recording setup or stage sound system, featuring two mono channels and a stereo input for versatile audio mixing. With studio-grade preamps and low-noise architecture, this mixer ensures high-quality sound reinforcement, making it ideal for both live performances and studio recordings.

Features

• 2 Mono Inputs: Each with combo XLR/jack input for balanced microphone or switchable line/instrument connectivity.
• Stereo Input: Allows playback from devices or line-level instruments.
• Studio-Grade Preamps: Low noise architecture for the cleanest possible sound.
• Individually Switchable Phantom Power: +48V phantom power available for condenser microphones.
• USB Interface: High-quality digital stereo input and output for direct connection to PC/Mac.
• EQ Controls: High and low frequency EQ controls for precise sound shaping.
• Compact Design: Lightweight and portable, perfect for on-the-go setups.

Specifications

• Power Supply: 5.5Vdc (USB)
• Gain: -14 to +40dB
• Low EQ: ±15dB @ 80Hz
• High EQ: ±15dB @ 12kHz
• Phantom Power: +48V individually switchable (XLR inputs only)
• Input Impedance: Mic 2kΩ, Instrument 1MΩ, Line 20kΩ
• Frequency Response: 20Hz - 20kHz (±0.5dB)
• USB Computer Interface: Duplex stereo in/out AD/DA
• Sampling Format: 24-bit, 96kHz max.
• Total Harmonic Distortion + Noise: <0.03% @ 1kHz
• Dynamic Range: 102dB
• Crosstalk: 92dB
• Output: Left + Right balanced XLR (analogue)
• Output Impedance: 120Ω
• Dimensions: 171 x 166 x 66mm
• Weight: 900g
