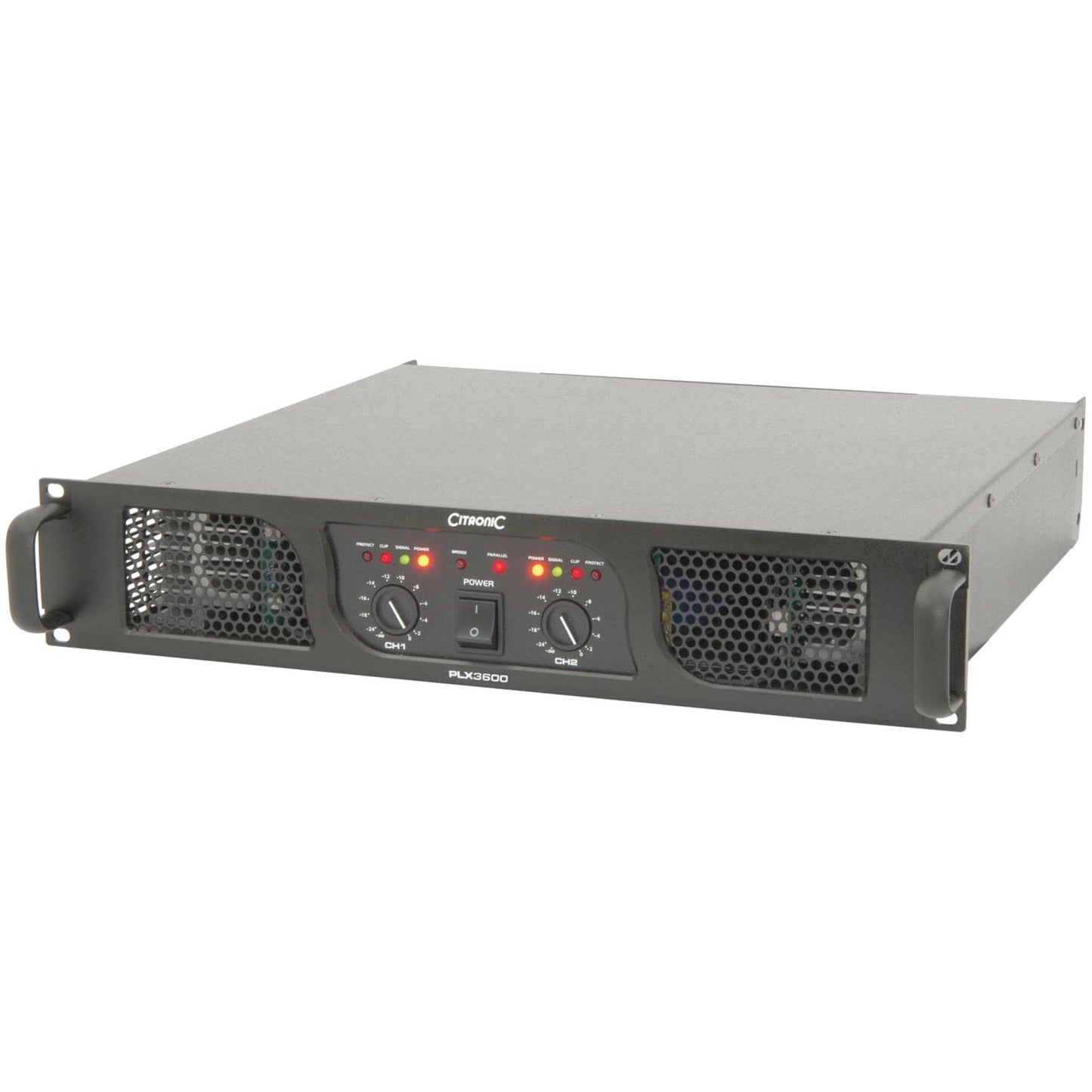

Citronic PLX3600 3600W Power Amplifier with Dual Fan Cooling System

The Citronic PLX3600 Power Amplifier is engineered for medium to large scale PA applications, delivering exceptional power and reliability. With a total output of 3600W, this amplifier features dual fan cooling and class H architecture, ensuring safe and efficient operation even during extended use. It offers multiple connectivity options, including balanced inputs via XLR sockets and speaker outputs on SPK connectors or binding posts, making it versatile for various setups.

Features

• High Power Output: 2 x 1800W @ 2 Ohms, 2 x 1350W @ 4 Ohms, and 2 x 800W @ 8 Ohms.
• Bridge Mode: Can be bridged for high power mono operation, delivering 2900W at 4 Ohms.
• Dual Fan Cooling: Designed for long-duration use, keeping the amplifier cool under heavy loads.
• Class H Architecture: Provides efficient power delivery while minimizing heat generation.
• Protection Features: Short-circuit, overload, D.C. and thermal protection ensure safe operation.
• Removable Handles: For low profile installation in 19" rack cabinets (2U size).
• Switchable Ground Lift: Helps eliminate hum and noise in audio systems.

Specifications

• Input impedance: 20k ohms
• Frequency response: 5Hz - 50kHz
• Total Harmonic Distortion: 0.05%
• Slew Rate: 40V/us
• Damping Factor: >400
• Power Supply: 230Vac, 50Hz (IEC)
• Dimensions: 482mm (W) x 453mm (D) x 88mm (H)
• Weight: 26kg
