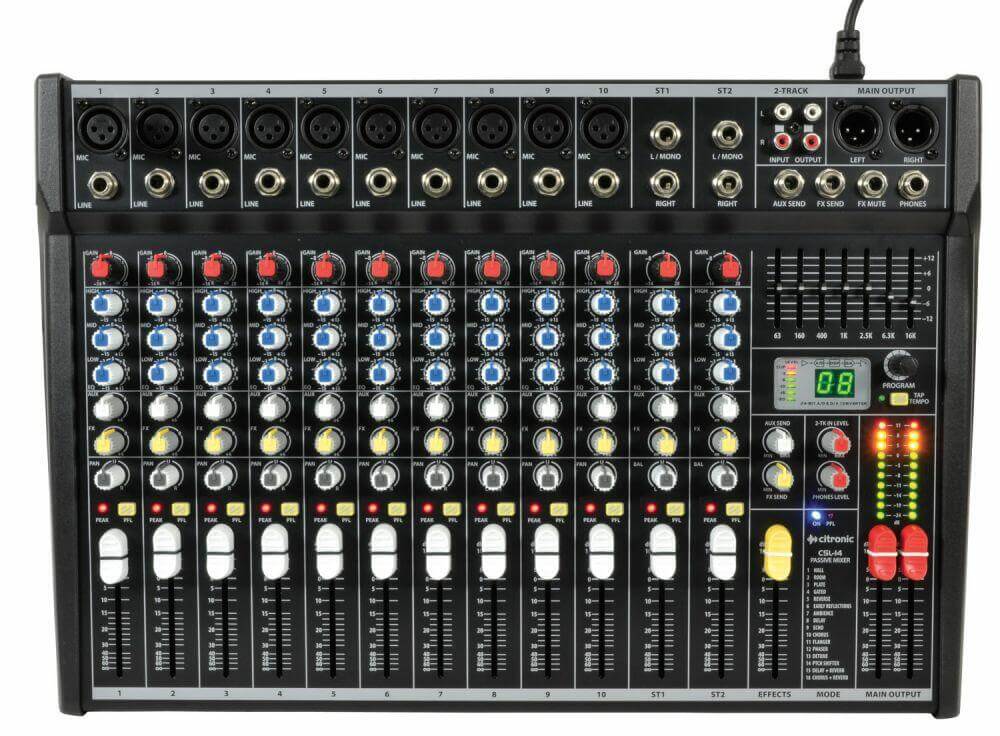

Citronic CSL-14 14-Channel DSP Music Mixer - Compact & Versatile

The Citronic CSL-14 Music Mixer is a highly versatile 14-channel mixing console designed for professional audio applications. Featuring balanced mic/line inputs and dual stereo inputs, each equipped with a 3-band EQ and aux send, this compact console is perfect for mobile PA systems, bars, and special events. With a 16 program DSP section providing vocal effects and a 7-band graphic EQ for global tone control, the CSL-14 delivers exceptional sound quality and flexibility.

Features

• 14 Inputs: Includes 10 balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ.
• 16 Program DSP Effects: Provides a variety of vocal effects with tap tempo functionality.
• 7-Band Graphic EQ: Facilitates global tone control for optimal sound shaping.
• Compact Design: Ideal for venues and stage applications, ensuring portability and ease of use.
• 48V Phantom Power: Supports condenser microphones via XLR inputs.
• Balanced Main Outputs: Ensures high-quality audio output with minimal noise.
• IEC Mains Powered: Standard power supply for reliable operation.
• 19" Rack-Mounting Ears: Optional mounting for easy installation in racks.

Specifications

• Dimensions: 475 x 320 x 107 mm
• Weight: 4.5 kg
• Power Supply: 230Vac, 50Hz (IEC)
• Power Consumption: 25W
• Fuse: T1AL
• Input Level: +24dBu
• Output Level: +26dBu
• Frequency Response: 20Hz-30kHz (0.5dB)
• CMRR: >74dB (mic 1kHz)
• THD + N: <0.01% (channel to main out)
• Crosstalk: >85dB (fader mute), >82dB (channel)
• Noise RMS: -122dBu (EIN), -82dBu (mix)
• EQ High: 12kHz ±15dB shelving
• EQ Mid: 2.5kHz ±15dB band pass
• EQ Low: 80Hz ±15dB shelving
• Input Impedance Mic: 2k Ohms
• Input Impedance Line: 10k Ohms
• Sensitivity Mic: -60 to +14dBu
• Sensitivity Line: -40 to +14dBu
• 2-Track: 2 x RCA in & out (-2dBu)
• Output Impedance: <75 Ohms
• Headphone Output: 6.3mm jack, 30-600 Ohms
• Output Connections: Main L+R balanced XLR
