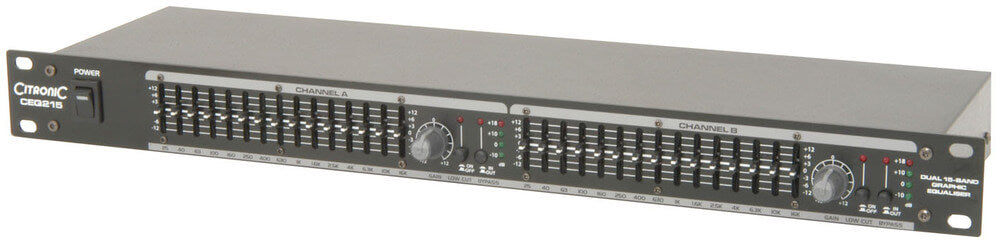

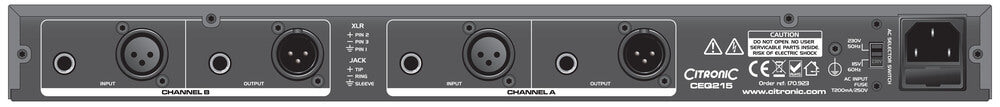

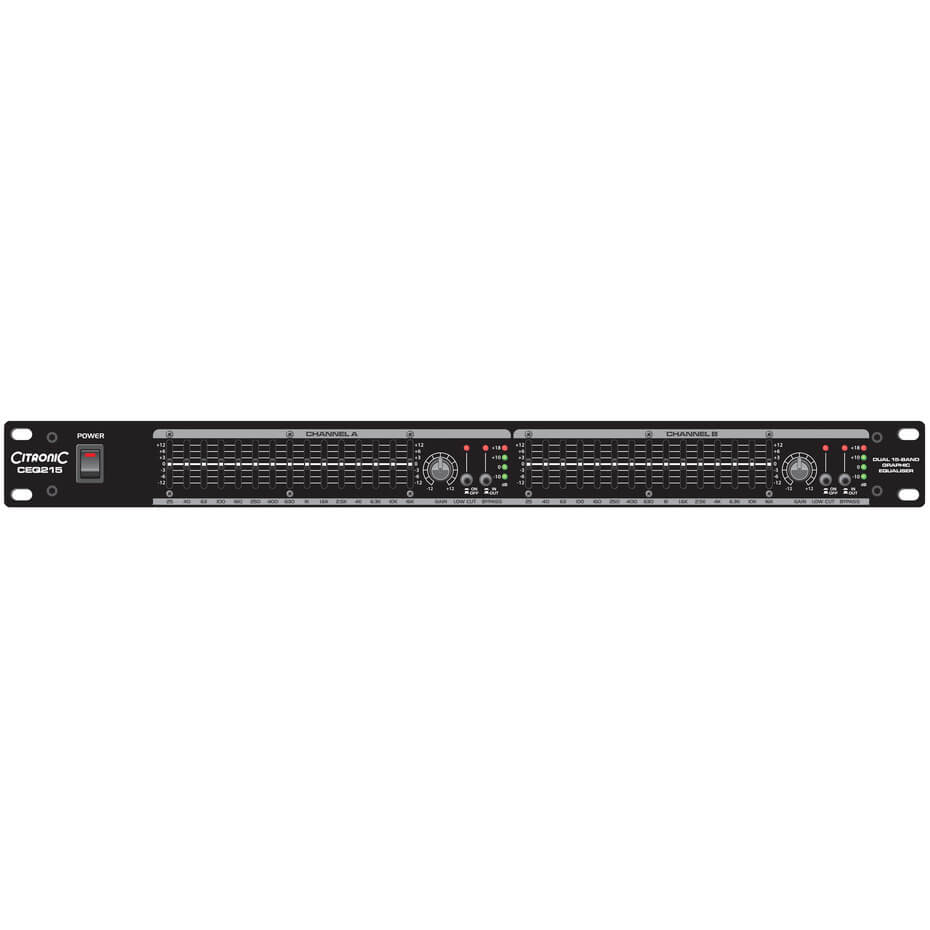

Citronic CEQ215 Dual 15-Band Graphic Equaliser for Pro Audio Control

The Citronic CEQ215 Dual 15-Band Graphic Equaliser is designed for audio professionals seeking precise control over their audio spectrum. With 2x 15-band 2/3 octave ISO spacing, this rack-mountable EQ allows for easy adjustment of frequencies via individual cut/boost faders, ensuring optimal sound clarity and balance. It features a low-cut switch and gain control for each channel, delivering up to 12dB of cut or boost across a frequency range of 25Hz to 16kHz. The integrated LED VU meters provide visual feedback for accurate monitoring, making it an essential tool for DJs, sound engineers, and live performers.

Features

• Dual 15-Band Control: Adjust frequencies with precision using individual faders.
• 2/3 Octave ISO Spacing: Ensures accurate frequency adjustments for optimal sound.
• Low-Cut Switch: Eliminates unwanted low frequencies for cleaner audio output.
• Gain Control: Allows for up to 12dB of cut or boost per channel.
• LED VU Meters: Provides visual feedback for real-time audio monitoring.
• 19" Rack-Mountable: Fits seamlessly into standard flight cases and racks.

Specifications

• Frequency Range: 25Hz to 16kHz
• Input Impedance: Balanced 40k Ohms, Unbalanced 20k Ohms
• Output Impedance: Balanced/Unbalanced 330 Ohms
• Channel Separation: >50dB
• Signal to Noise Ratio: >102dB
• Total Harmonic Distortion (THD): 0.005%
• Power Supply: 115/230Vac, 50/60Hz (IEC)
• Dimensions: 482 x 44 x 138mm
• Weight: 2.0kg
