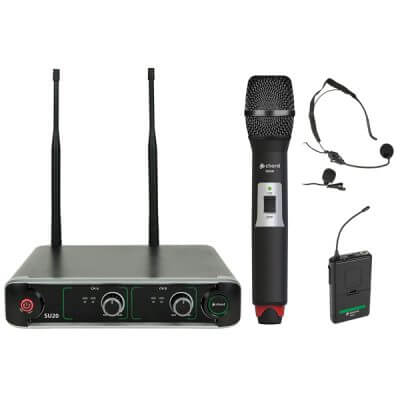

CHORD SU20-C UHF Wireless Microphone System, Handheld & Neckband

The CHORD SU20-C is a versatile dual UHF wireless microphone system designed for professional audio applications. It includes both handheld and neckband microphones, providing flexibility for various performance settings. With a compact half-rack receiver, this system is perfect for installations in 1U 19" rack spaces, making it an ideal choice for stage performances, presentations, and conferences.

Features

• Dual UHF Wireless System: Operates on frequencies 863.42MHz and 864.3MHz for reliable transmission.
• Compact Receiver: Designed for mounting 1 or 2 units into a 1U 19" rack space.
• Flexible Microphone Options: Comes with both handheld and neckband microphones, suitable for different performance styles.
• Balanced Output: Individual outputs on balanced XLR connectors or mixed to a single unbalanced 6.3mm jack socket.
• Detachable Antennas: Allows for front or rear mounting as required, enhancing installation versatility.
• Wide Range: Effective operating range of up to 60 meters for freedom of movement.
• Cardioid Polar Pattern: Reduces background noise and focuses on the speaker's voice for clearer audio capture.

Specifications

• Power Supply: 14Vdc 350mA (adaptor supplied)
• Antenna Connection: BNC
• Output Connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
• Output Impedance: 2.2k Ohms
• Output Level: 400mV (balanced), 200mV (unbalanced)
• Frequency Response: 50Hz - 18kHz (±3dB)
• S/N Ratio: >80dB
• THD: <0.5% @ 1kHz
• Receiver Dimensions: 203 x 187 x 42mm
• Receiver Weight: 845g
• Handheld Transmitter Dimensions: 250 x 47mm
• Handheld Transmitter Weight: 231g (no battery)
• Beltpack Transmitter Dimensions: 110 x 676 x 24mm
• Beltpack Transmitter Weight: 74g
