CHORD NU1-N UHF Wireless Neckband & Lavalier Mic System 863.1MHz

CHORD NU1-N UHF Wireless Neckband & Lavalier Mic System 863.1MHz

171.983CD

Out of stock

R 4,137.00
R 4,137.00
Sale Sold out
Shipping calculated at checkout.

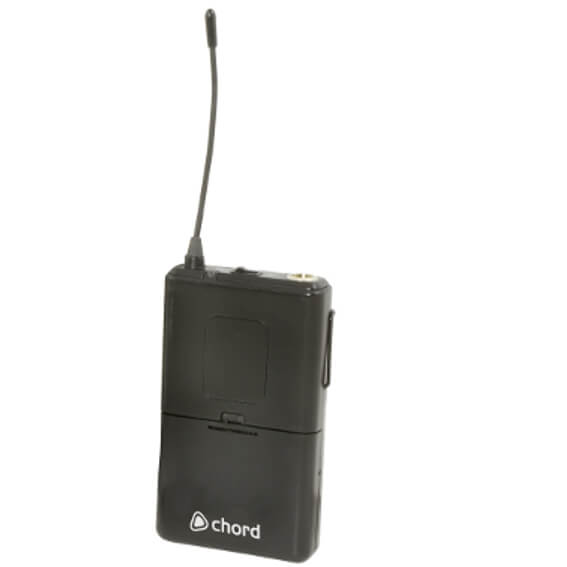

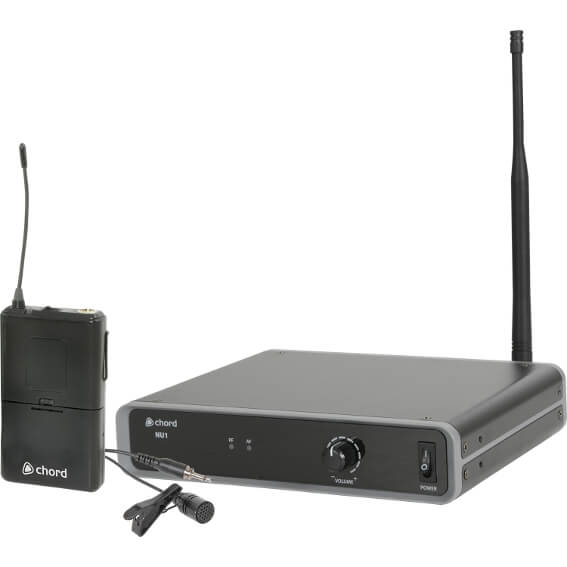

The CHORD NU1-N is a versatile UHF wireless microphone system designed for professional audio applications. Featuring a fixed UHF beltpack transmitter and a half rack-width receiver, this system comes with both neckband and lavalier microphones, making it ideal for presentations, performances, and fitness training. The receiver is compatible with standard 19" racks and includes rack ears and front mounting antenna accessories for easy installation.

Features

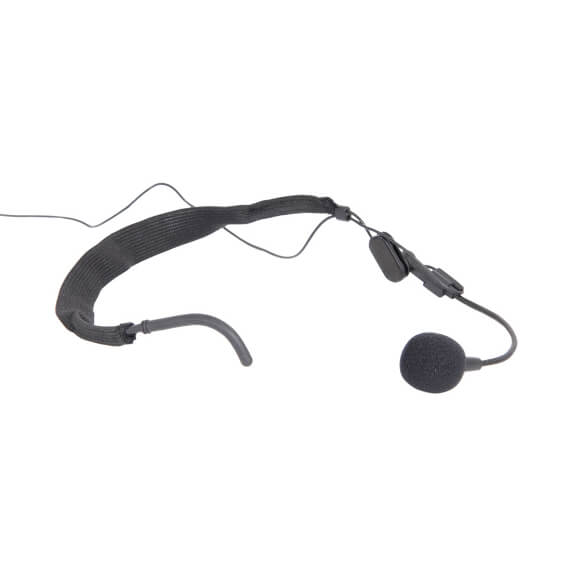

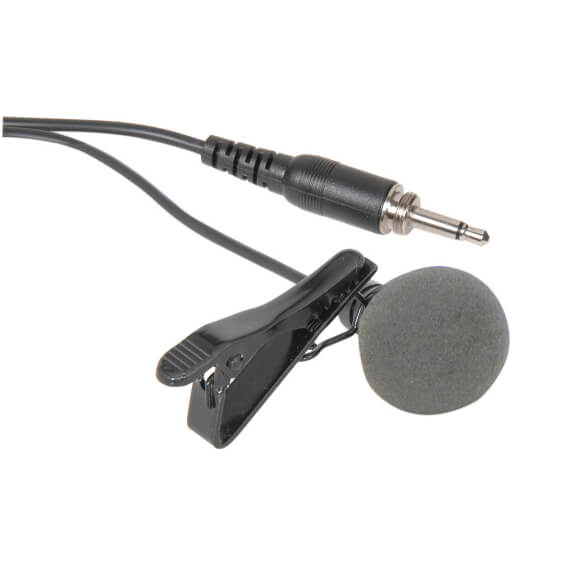

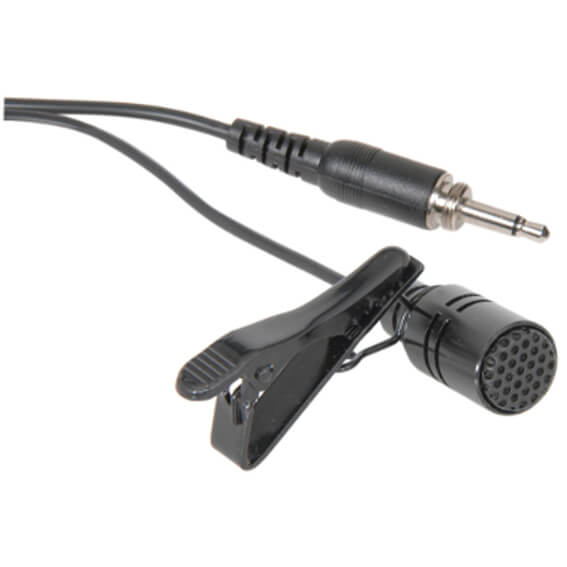

  • Dual Microphone Options: Supplied with both neckband and lavalier microphones for flexible use.
  • UHF Technology: Operates at a frequency of 863.1MHz for reliable signal transmission.

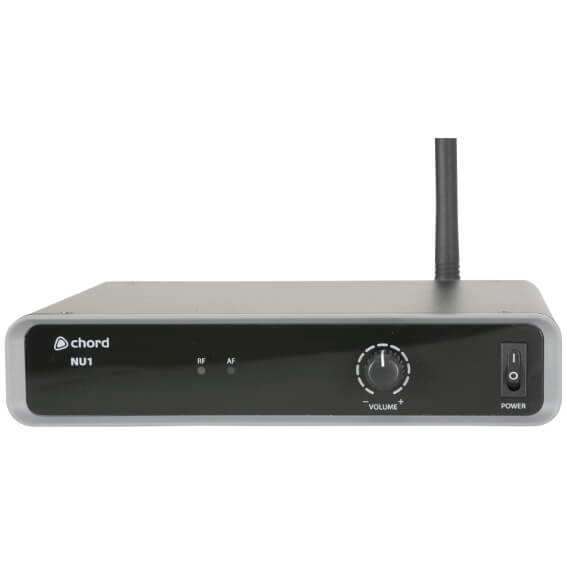

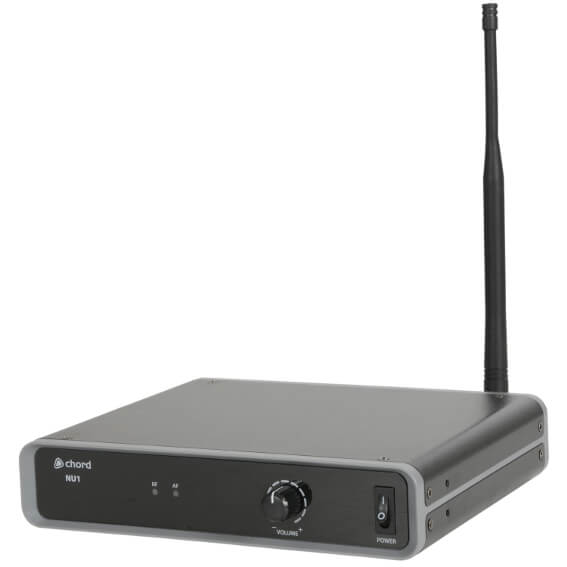

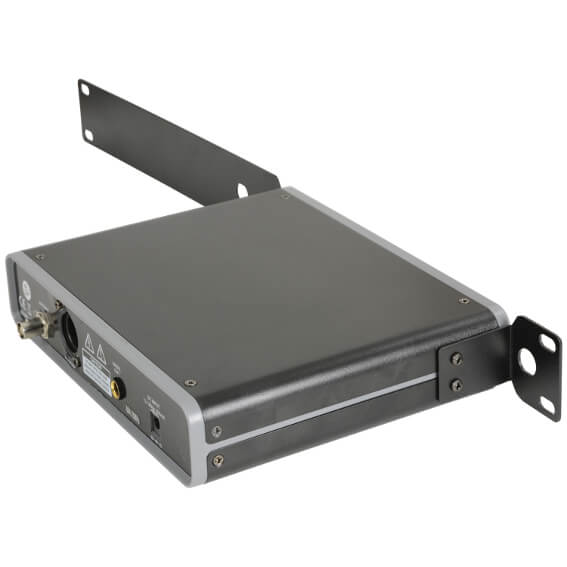

  • Half Rack-width Receiver: Compact design suitable for rack mounting with included accessories.
  • License Free Operation: Compliant for use in the UK and EU without the need for additional licenses.
  • Pilot Tone & Mute Circuit: Ensures stable signal and minimizes interference.

Specifications

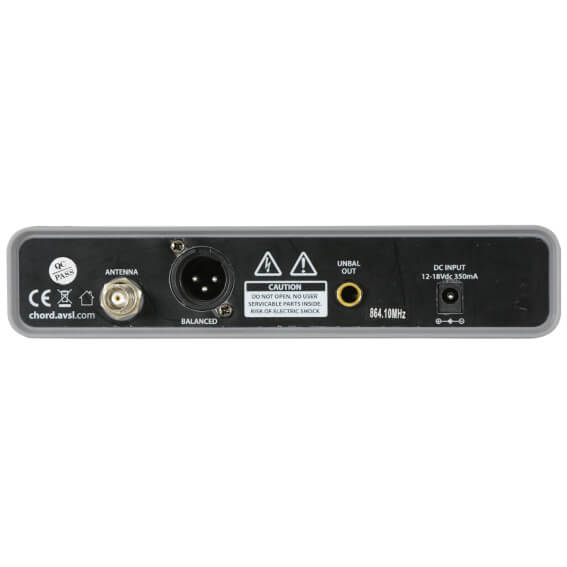

  • Power Supply: 12-18Vdc, 350mA (mains adaptor included)
  • Range: 60m
  • Signal to Noise Ratio: >105dB
  • Total Harmonic Distortion (THD): <0.5% @ 1kHz
  • Frequency Response: 50Hz-18KHz ±1 dB
  • Image Rejection: >85dB
  • Output Impedance: 2.2k Ohms
  • Output Level: 400mV (balanced), 200mV (unbalanced)
  • Receiver Dimensions: 44 x 198 x 190mm
  • Receiver Weight: 710g
  • Transmitter Dimensions: 205 x 68 x 25mm
  • Transmitter Weight: 76g
