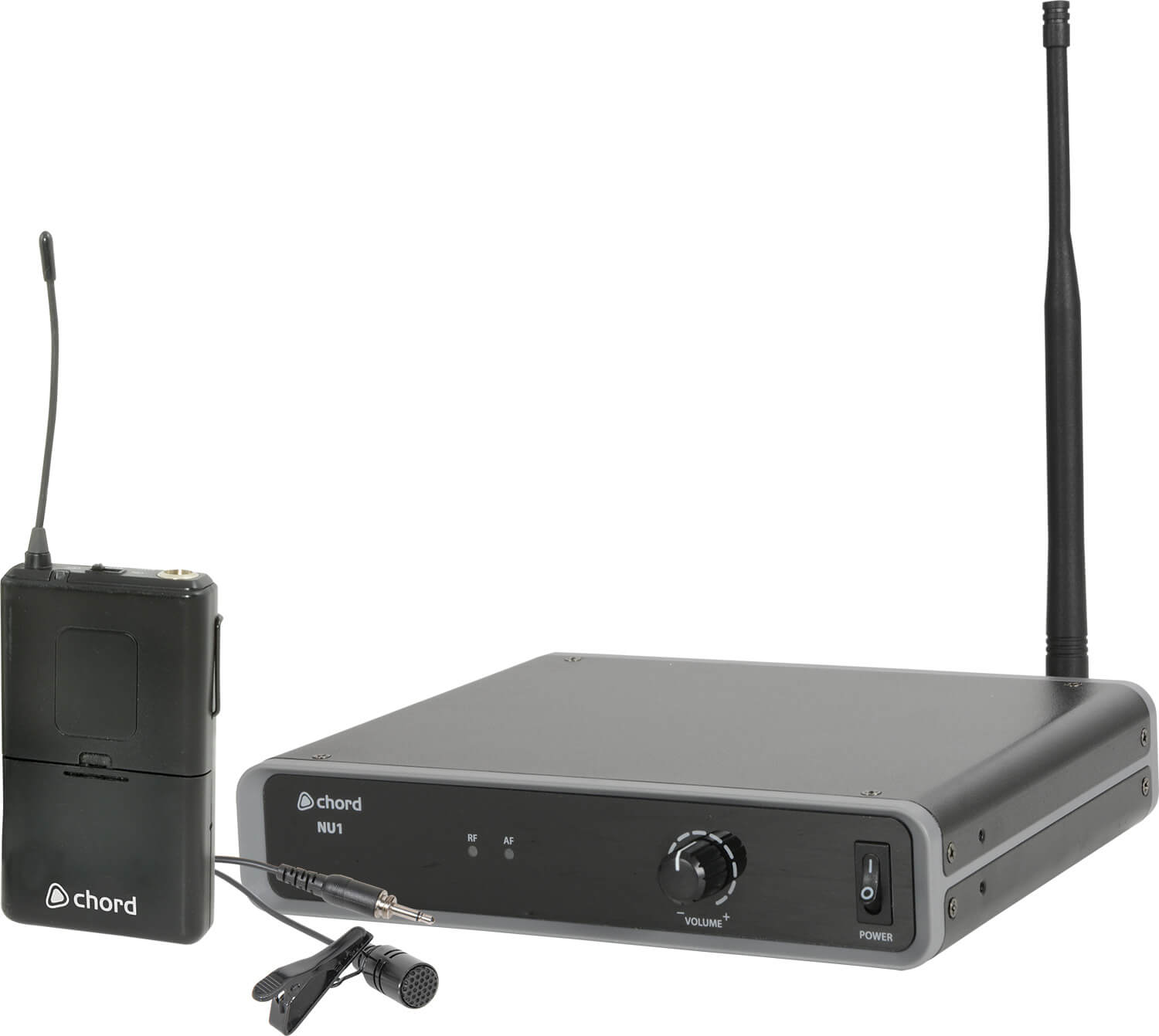

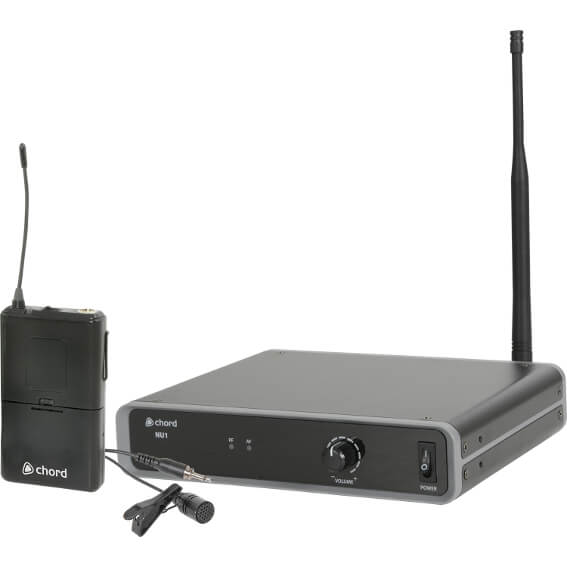

The CHORD NU1-N is a versatile UHF wireless microphone system, operating at 864.1MHz, designed for seamless audio transmission. It includes both a neckband and lavalier microphone, making it ideal for presentations, performances, and broadcasting. The system features a fixed UHF beltpack transmitter and a half rack-width receiver, ensuring stable and clear sound quality over a range of up to 60 meters.

Features

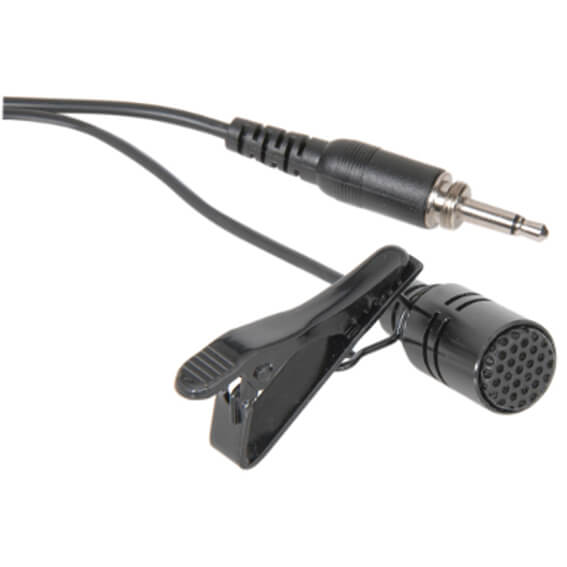

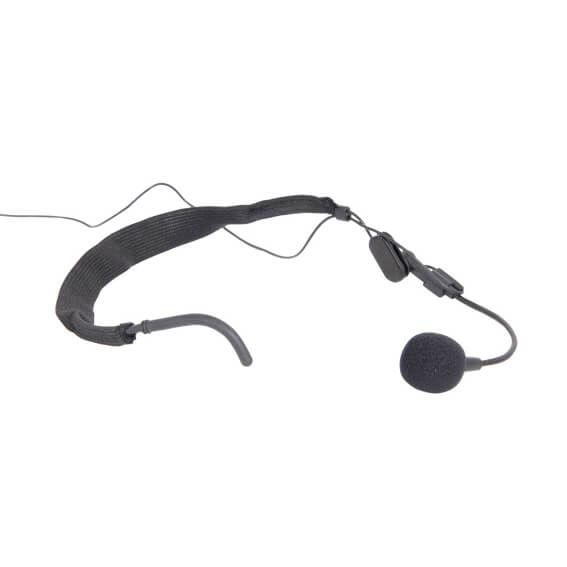

• Dual Microphone Options: Supplied with both neckband and lavalier microphones for versatile use.
• UHF Frequency: Operates at 864.1MHz for reliable wireless performance.
• Extended Range: Offers a transmission range of 60 meters, suitable for various environments.
• High Signal Quality: Signal to noise ratio greater than 105dB ensures clear audio.
• Low Total Harmonic Distortion: THD of less than 0.5% at 1kHz for high-fidelity sound.

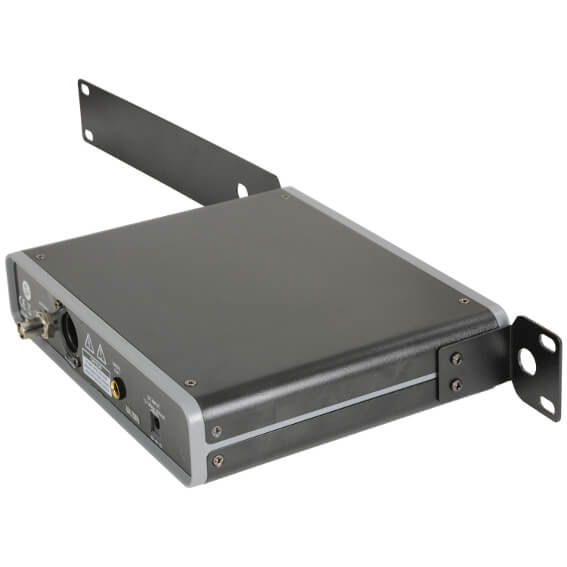

• Rack Mountable: Compatible with standard 19" racks with included mounting accessories.

Specifications

• Power Supply: 12-18Vdc, 350mA (mains adaptor included)
• Batteries: 2 x AA for transmitter (not included)
• Frequency Response: 50Hz - 18KHz ±1 dB
• Image Rejection: Greater than 85dB
• Output Impedance: 2.2k Ohms
• Output Level: 400mV (balanced), 200mV (unbalanced)
• Receiver Dimensions: 44 x 198 x 190 mm
• Receiver Weight: 710 g
• Transmitter Dimensions: 205 x 68 x 25 mm
• Transmitter Weight: 76 g (without battery)
