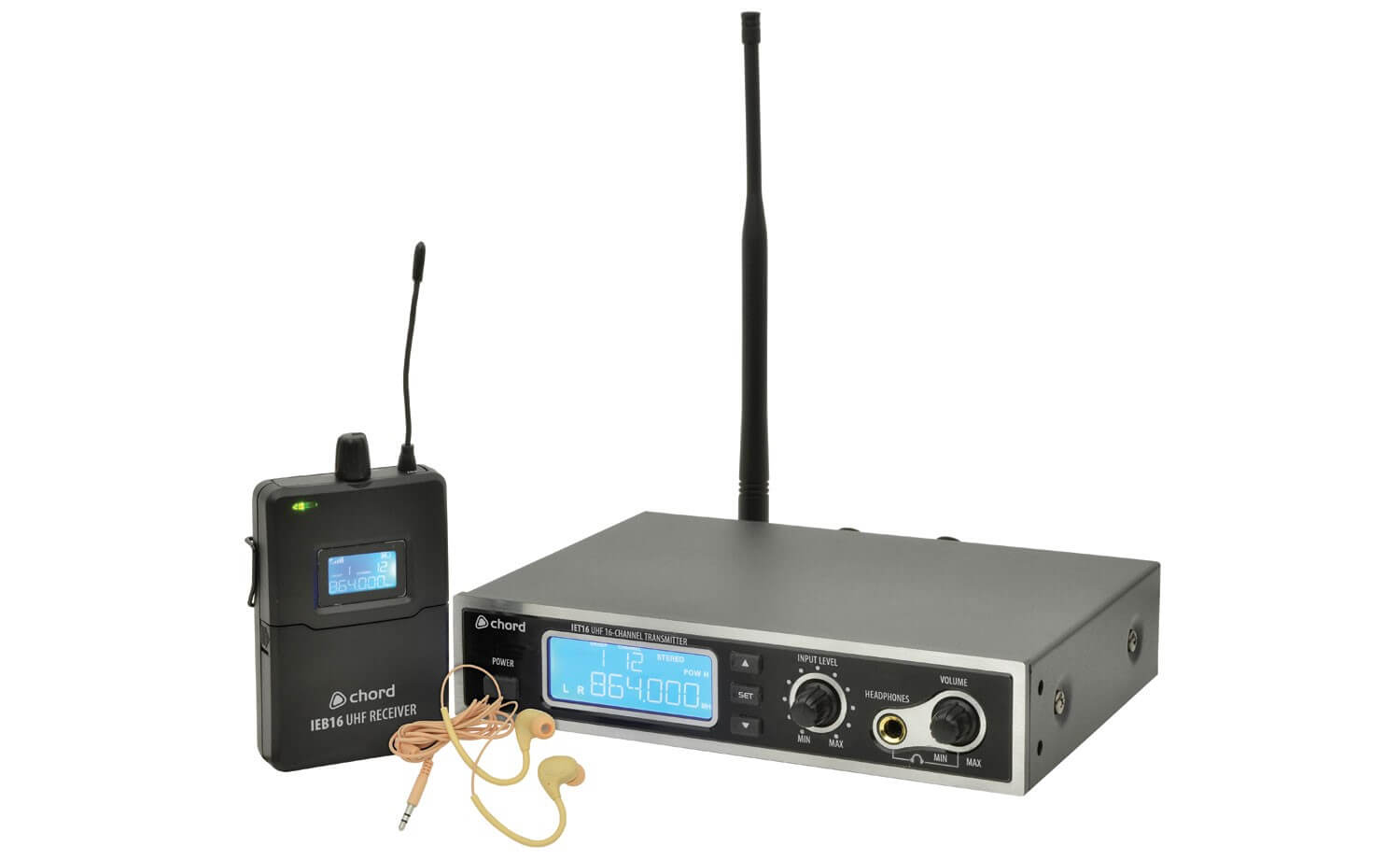

CHORD IEM16 UHF In-Ear Monitor System - Pro Wireless Audio Solution

The CHORD IEM16 UHF In-Ear Monitoring System provides high-quality wireless audio monitoring, allowing performers to hear a monitor mix directly through in-ear headphones. This system eliminates the need for stage monitors, delivering faultless audio feedback with complete freedom of movement. Ideal for live performances, conferences, and training applications, the IEM16 ensures reliable audio transmission with up to 16 channels of UHF frequencies.

Features

• 16-Channel UHF System: Offers flexibility with 16 PLL synthesized frequencies for clear audio transmission.
• Stereo or Mono Operation: Easily toggle between mono and stereo output to suit your monitoring needs.
• Compact Transmitter: ½ rack size with a backlit LCD display for easy visibility and control.
• Detachable BNC Antenna: Ensures robust signal reception and transmission.
• Professional In-Ear Headphones Included: Provides exceptional sound quality and comfort for extended use.
• Additional Wired Headphone Output: Allows for a 6.3mm jack connection for wired monitoring.
• 19" Rack Mounting Kit: Included for easy installation in standard racks.

Specifications

• Carrier Frequencies: 863.1 - 864.9MHz (16 channels)
• Frequency Stability: 0.005% PLL
• RF Output Power: 30mW
• Bandwidth: 24MHz
• S/N Ratio: >105dB
• Total Harmonic Distortion (THD): <0.4% @ 1kHz
• Frequency Response: ±3dB 40Hz - 16kHz
• Max Range: 50m
• Transmitter Power Supply: 12-18Vdc, 300mA (adaptor included)
• Beltpack Receiver Power Supply: 3Vdc (2 x AA batteries supplied)
• Transmitter Dimensions: 44 x 210 x 175mm
• Beltpack Receiver Dimensions: 110 x 65 x 25mm
• Beltpack Receiver Weight: 98g (no battery)
