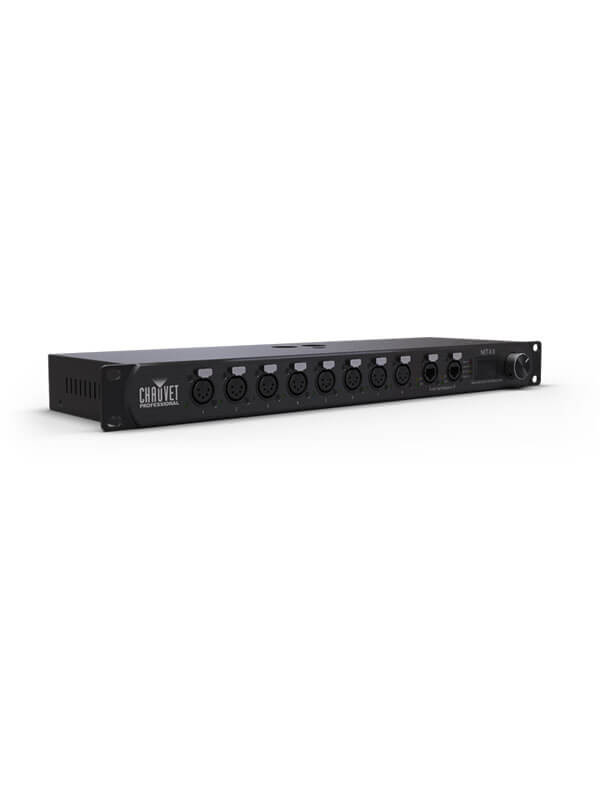

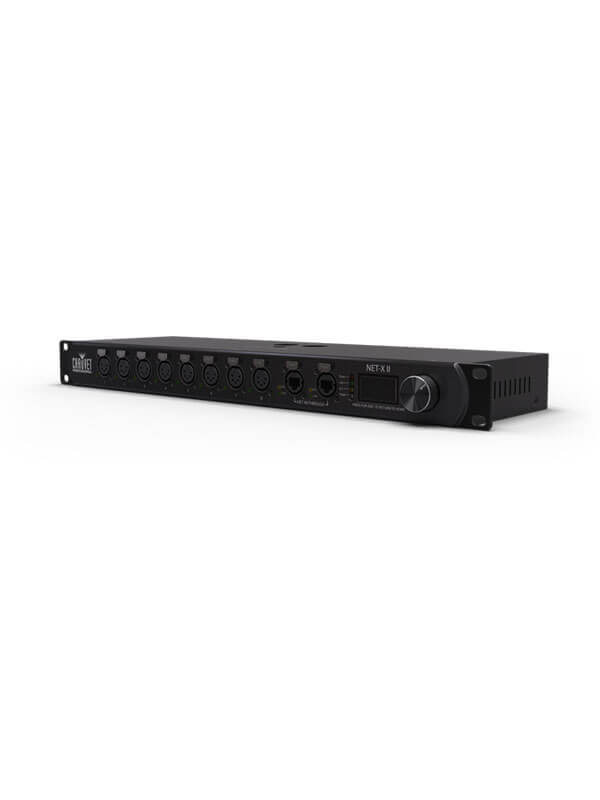

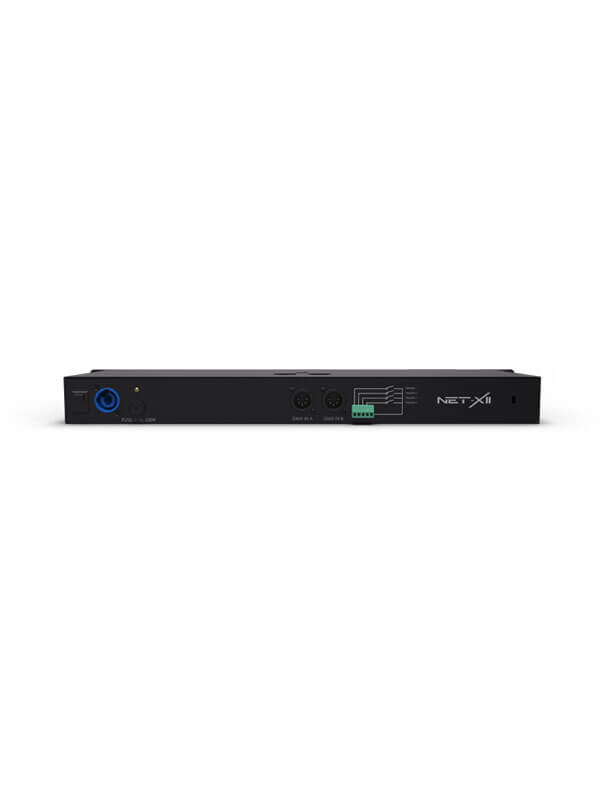

Chauvet DJ NET-X II - Versatile Rack-Mountable Ethernet-to-DMX Node

The Chauvet DJ NET-X II is a powerful and versatile Ethernet-to-DMX node designed for professionals in the lighting industry. This rack-mountable device not only converts Ethernet signals to DMX but also merges two controllers, making it ideal for complex lighting setups. With the ability to record and trigger up to 10 DMX presets remotely, the NET-X II is perfect for both novice and expert users seeking reliable and customizable control solutions.

Features

• Ethernet-to-DMX Conversion: Seamlessly converts Art-Net and sACN signals to DMX, supporting up to 8 universes.
• DMX Merging: Merge two DMX universes or two NET controllers into a single output, allowing for flexible control.
• Preset Recording: Record up to 10 DMX looks with 100 steps each, easily triggered remotely.
• Optically Isolated Outputs: All 5-pin DMX outputs are optically isolated to ensure signal integrity.
• RDM Support: Remote Device Management (RDM) over Art-Net for convenient fixture management.
• Webserver Configuration: Built-in webserver for remote configuration and firmware updates.

Specifications

• Dimensions: 483 x 158 x 44 mm
• Weight: 2.1 kg
• Power Input: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption: 11 W at 120 V, 14 W at 208 V and 230 V
• Input Connections: 2 x 5-pin DMX, 1 x Seetronic powerKON
• Output Connections: 8 x 5-pin DMX
• Control Protocols: Art-Net, DMX, sACN
• Operating Temperature: -20 °C to 45 °C
• Rackmount: 1U
