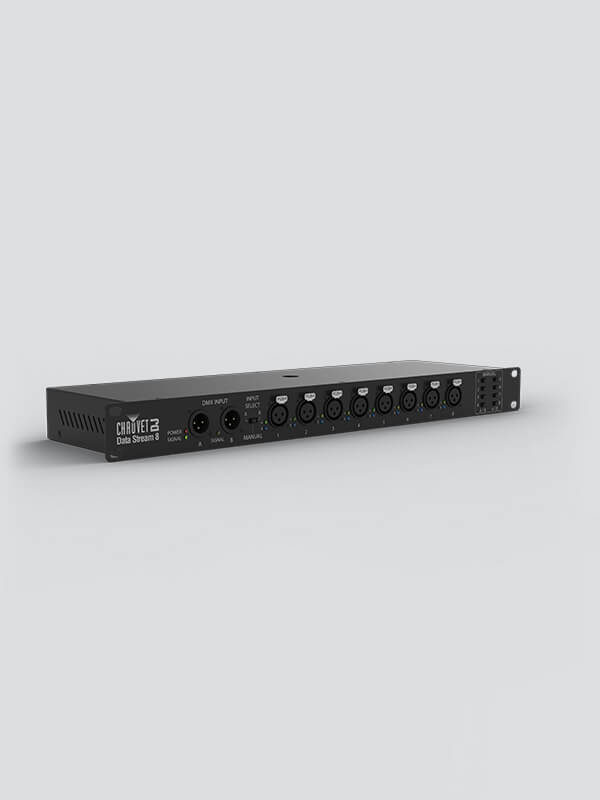

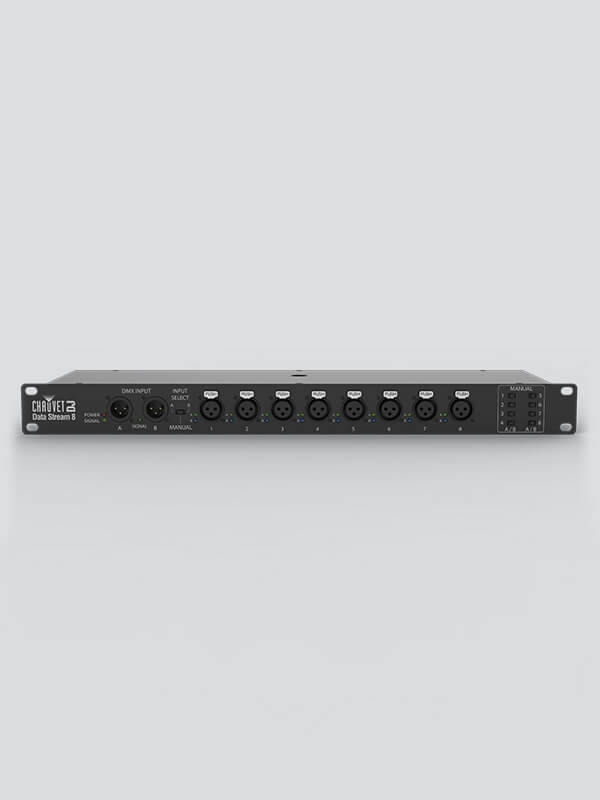

Chauvet DJ Data Stream 8 - 8-Way DMX512 Optical Splitter

The Chauvet DJ Data Stream 8 is a versatile DMX splitter designed to efficiently distribute and boost incoming DMX signals from dual inputs into 8 separate outputs. Its robust features and reliable performance make it an essential tool for lighting professionals.

Features

• 8 Outputs from Dual Inputs: Provides up to 8 outputs from two DMX inputs, allowing for flexible signal distribution.
• Simultaneous Input Use: Each input can be used simultaneously and sent to any output, enhancing versatility in setup.
• Master 3-Position Switch: Quickly sends either A or B input to all 8 outputs for efficient control.
• Individual 2-Position Switches: Allows for separate data transmission from either the A or B input on each output.
• Optically Isolated Outputs: Protects against shorts, ensuring reliable operation even in demanding environments.
• Secure Truss Mounting: A threaded insert enables safe attachment to overhead truss systems.

Specifications

• DMX Connectors: 3-pin XLR
• Rackmount: 1U
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 2 W, 0.04 A @ 120 V, 60 Hz; 2 W, 0.03 A @ 230 V, 50 Hz
• Weight: 4.6 lbs (2.1 kg)
• Size: 19 x 5.2 x 1.7 in (483 x 132 x 44 mm)
• Approvals: CE
