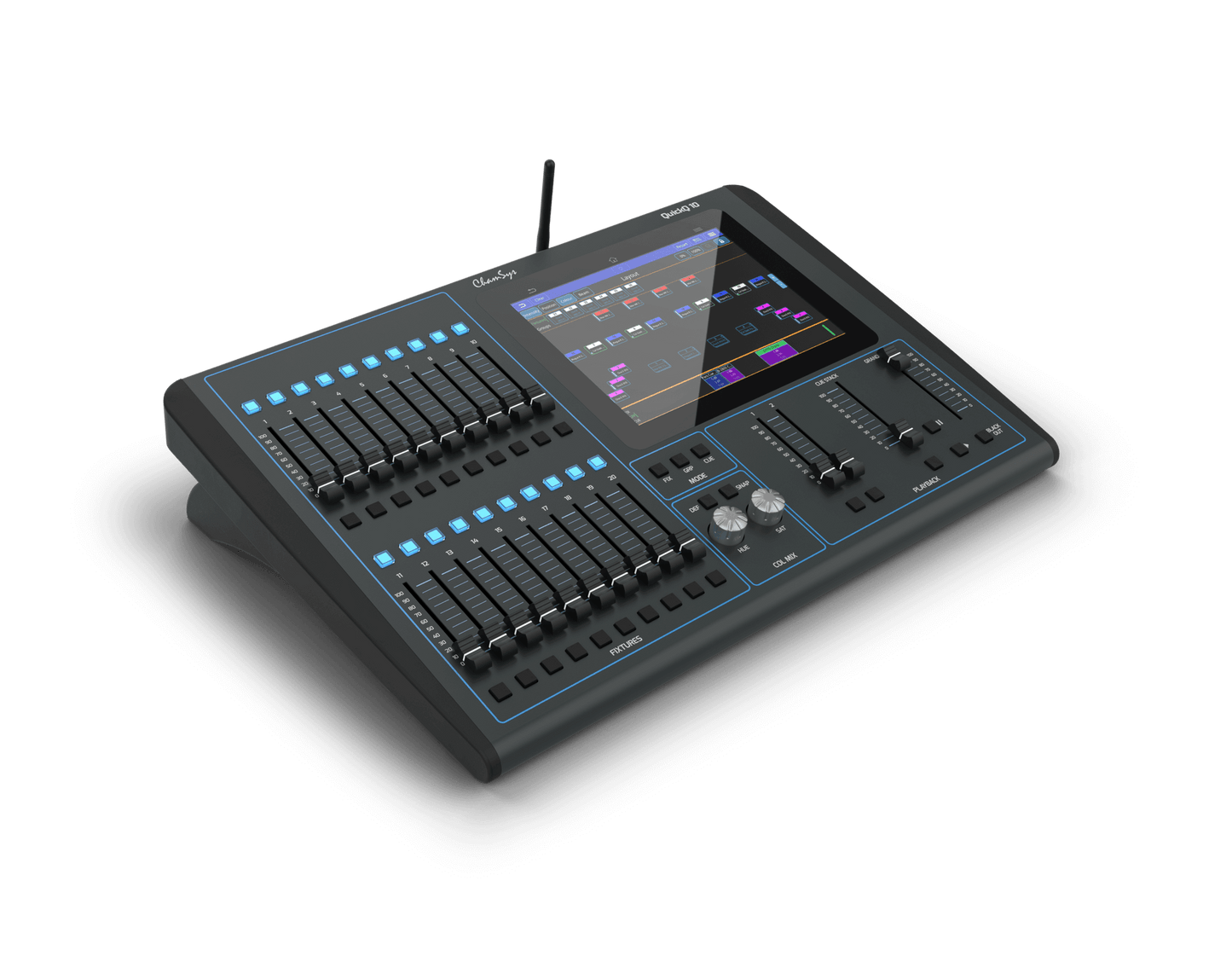

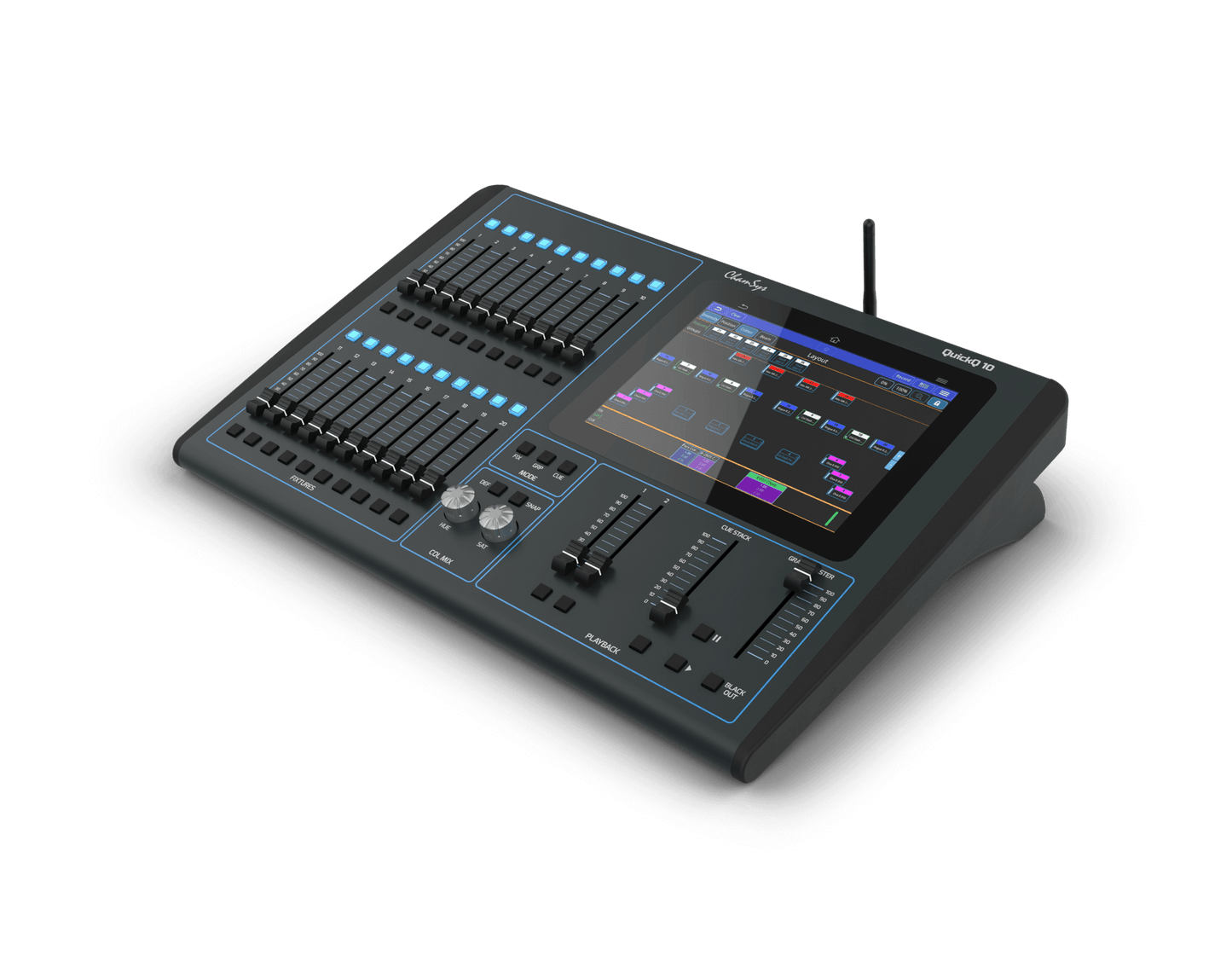

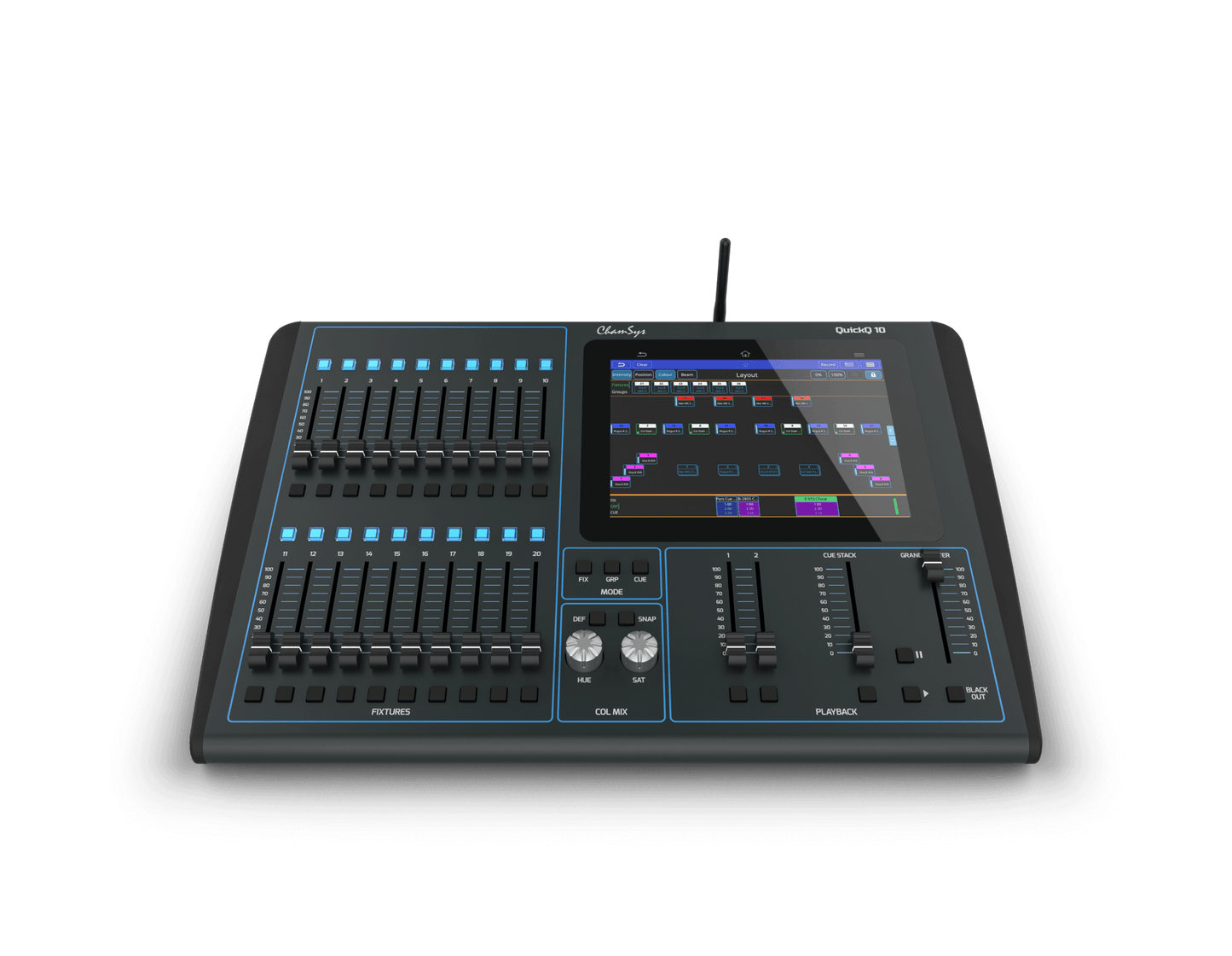

Chamsys QuickQ 10: Compact Console for Dimmers, LEDs & Lights.

The Chamsys QuickQ 10 is an intuitive and user-friendly lighting control console designed for both novice and professional users. With a large 9.7-inch multi-touch screen and a smartphone-like interface, it simplifies the control of dimmers, LEDs, and moving lights, making it ideal for a variety of applications including concerts, theatre, and nightclubs.

Features

• Large Touch Screen: The console features a 9.7-inch touch screen that allows for easy setup, programming, and playback.
• Smartphone-Like Interface: Designed for ease of use, the interface includes icons and gesture support, making it accessible even for inexperienced users.
• Automatic Fixture Detection: The QuickQ 10 can automatically detect and patch RDM compliant fixtures, streamlining the setup process.
• In-Built Wi-Fi: Connect remotely to the free QuickQ app available on iOS, Android, and Windows devices by scanning a QR code on the console.
• Offline Programming Software: Free software available for Mac and Windows allows users to program shows offline and transfer them to the console via USB.
• Extensive Fixture Library: Over 45,000 personalities available in the ChamSys library ensure compatibility with a wide range of lighting fixtures.
• Future-Proof Compatibility: QuickQ shows can be loaded onto any MagicQ system, allowing users to upgrade to more advanced consoles in the future.
• Integrated Audio Triggering: Audio out functionality will be enabled via a future software update.

Specifications

• Max Number of DMX Channels: 512
• Max Number of Fixtures Supported: 512
• Universes Supported: 1
• Direct DMX Outputs: 1 x 5-Pin XLR
• Master Playback Faders: 2 Chase, 1 Cue Stack
• Multi-Function Fixture Faders: 20
• Inbuilt Multi-Touch Display: Yes
• External Monitor Support: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Audio Input: 1
• Audio Output: 1*
• Dimensions (Width x Depth x Height): 525mm x 350mm x 106mm
• Weight: 4.07kg
