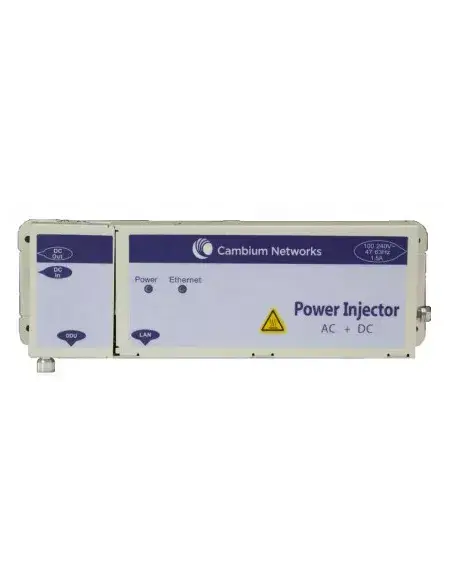

Cambium PTP ACDC 56V Power Injector

The Cambium PTP ACDC 56V Power Injector is a robust solution designed for powering Cambium Networks radios. This device features both AC and DC inputs, delivering a reliable 58V power plus data (PoE) output, ensuring efficient network performance while meeting stringent energy efficiency standards.

Features

• Dual Input Capability: Supports both AC and DC power inputs for versatile installation options.
• High Power Output: Provides 58V of power along with data (PoE) output to ensure reliable connectivity.
• Energy Efficiency: Complies with Level VI efficiency requirements, promoting energy savings.
• Global Compliance: Meets regulatory standards for deployment in various locations worldwide.
• Surge Protection: Equipped with ESD surge protection (6kV contact, 8kV air) and lightning surge protection (4kV common, 2kV differential) to enhance reliability.
• Compact Design: Engineered for easy deployment in various environments without compromising performance.

Specifications

• Model Number: N000000L034B
• Output Voltage: 56VDC (±5%)
• Output Power: 30W
• Ethernet: 5 Gigabit
• AC Voltage Input: 90 to 300 VAC
• AC Frequency Range: 47 to 63 Hz
• Efficiency Energy Level: 6
• Operating Temperature: 0°C to +50°C
• Non-Operating Temperature: -40°C to +70°C
• Dimensions: 140 x 53 x 35 mm
• Weight: Not specified
• Safety Certifications: UL+cUL, UKCA, RCM, CE/FCC, and more
