Cambium LPU Grounding Kit

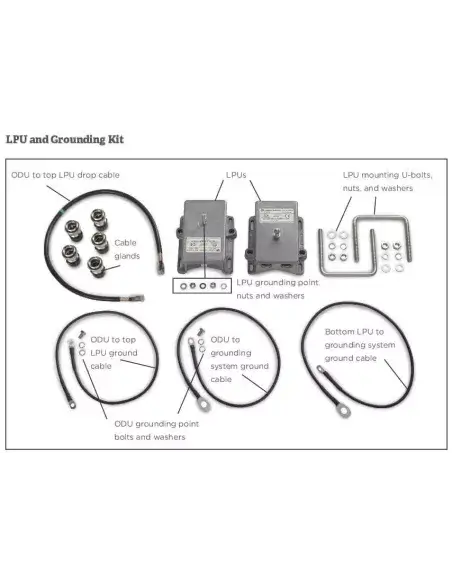

The Cambium LPU Grounding Kit is essential for protecting mast-mounted equipment from lightning strikes, particularly for installations as high as 300 meters. It includes two Lightning Protection Units (LPUs) and grounding cables, ensuring optimal safety and reliability for your network infrastructure.

Features

• Lightning Protection: Designed to minimize damage from lightning strikes, which are a common cause of system outages.
• Ruggedized Design: Built to withstand harsh environmental conditions, ensuring long-term durability.
• Easy Installation: The kit includes all necessary components for straightforward mounting on towers or walls.
• Dual Protection Methods: Provides line-to-line and line-to-ground protection to safeguard connected equipment.
• IP66/IP67 Rating: Offers dust and water intrusion protection for reliable outdoor use.
• Fast Response Time: Protects equipment by shunting excess current to ground within five nanoseconds.

Specifications

• Dimensions: 160 mm (Length) x 100 mm (Width) x 90 mm (Height)
• Weight: 0.7 kg
• Transfer Rate: 1000 Base T
• Connectors: RJ45
• Protection Mode: Line-to-line and line-to-ground
• Response Time: 5 nanoseconds typical
• Mounting: Pole mount 1-3” (25-75 mm) or wall mount
• Metal Enclosure: Projected 10-year operational life
• Wind Loading: 150 mph (242 kph)
• Operating Temperature: -40° F (-40° C) to +140° F (+60° C)
• Humidity: 100% condensing
• Surge Rating: 10/1000us 150 Amps min, 8/20us 1500 Amps min
