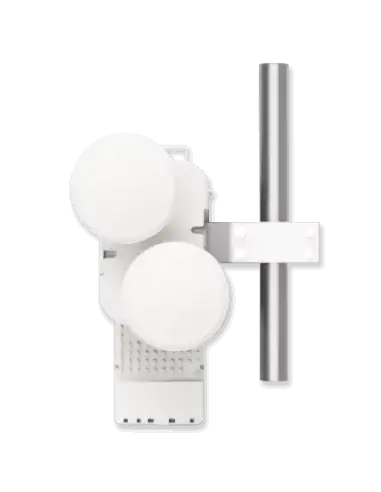

Cambium ePMP3000 5GHz 60° Dual Horn MU-MIMO Antenna

The Cambium ePMP3000 Dual Horn MU-MIMO Antenna combines advanced interference mitigation with high data rates, optimized for use with the ePMP 3000 Access Point. Its design enhances performance in high-noise environments while providing flexible channel selection and predictable performance.

Features

• MU-MIMO Performance: Optimized for 4x4 MU-MIMO ePMP 3000 Access Point, offering high gain and minimized side lobes for superior performance.
• Channel Flexibility: Maintains consistent gain across the frequency range of 5.1 to 6.1 GHz, allowing operators to select channels freely.
• Predictable Performance: Integrated with Cambium Networks LINKPlanner, providing a precise 3D model for gain across all elevations and azimuths.
• Installer-Friendly Design: Compact form factor with convenient mounting options for easy deployment in various applications.

Specifications

• Model Number: C050900D025A
• Frequency Range: 5.1 GHz to 6.1 GHz
• Gain: 12 dBi
• Beamwidth - Azimuth: 60 degrees
• Polarization: 2X Horizontal, 2X Vertical
• Front-to-Back Ratio: 28 dB
• Maximum Input Power: 5 W
• Input Impedance: 50 ohms
• Mounting Connectors: 4 x RP SMA
• Physical Dimensions: 305 mm x 215 mm x 231 mm
• Weight: 4.2 kg
• Environmental Rating: IP55
• Operating Temperature: -40°C to 60°C
