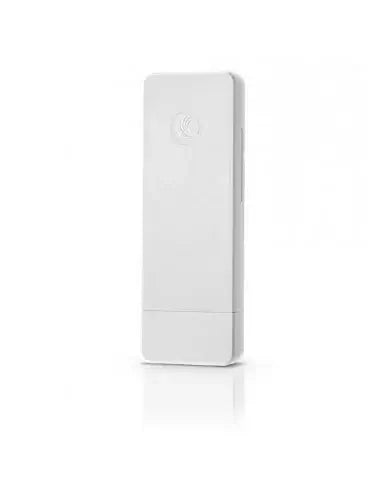

Cambium ePMP Force 300-13L 5GHz Wave 2 Module

The Cambium ePMP Force 300-13L is a powerful and cost-effective 5GHz subscriber module designed for high-performance fixed wireless broadband applications. Leveraging the latest 802.11ac Wave 2 technology, it delivers exceptional capacity and reliability, making it ideal for various deployment scenarios in crowded RF environments.

Features

• High Capacity: Delivers up to 600 Mbps of throughput, supporting both point-to-multipoint and point-to-point applications.
• Low Latency: Achieves latencies as low as 2 ms using ePTP technology, ensuring responsive network performance.
• Interoperable: Compatible with Cambium's ePMP3000 Access Point and backward compatible with ePMP2000, facilitating seamless upgrades.
• Integrated Spectrum Analyzer: Includes an always-on spectrum analyzer to assess the noise floor across a wide range of the 5 GHz spectrum.
• Quality of Service (QoS): Supports multiple levels of QoS for voice, video, and data applications, optimizing performance for diverse service packages.
• Robust Security: Features advanced security protocols suitable for enterprise, industrial, and government applications.
• Cloud Management: Managed via the cnMaestro™ platform for easy provisioning, monitoring, and upgrades.
• 3-Year Warranty: Backed by a three-year hardware warranty and support from Cambium Networks.

Specifications

• Frequency Range: 4910 - 5970 MHz
• Channel Width: Configurable in 20, 40, and 80 MHz
• Max Transmit Power: 28 dBm (combined to regional EIRP limit)
• Receive Sensitivity: MCS 0 = -89 dBm to MCS 8 (256 QAM-3/4) = -68 dBm (per chain)
• Operating Temperature: -30°C to 60°C
• Dimensions: 130 x 203 x 54 mm (with mounting bracket)
• Weight: 0.48 kg
• Power Supply: 30V Passive PoE (14–30V DC input)
• Environmental Rating: IP55
