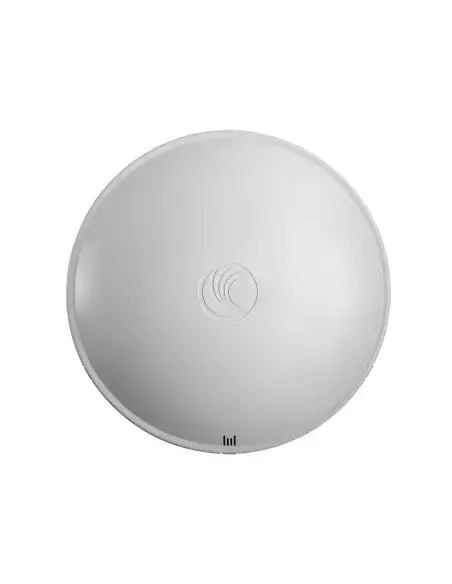

Cambium ePMP Force 200 Radome

The Cambium ePMP Force 200 Radome is an advanced solution designed for wireless service providers and enterprises, ensuring reliable connectivity even in the most congested RF environments. With its high gain integrated design, it enhances range and improves throughput, making it ideal for high interference conditions.

Features

• High Gain Integrated Solution: Enhances range and improves throughput in high interference environments.
• Gigabit Ethernet Interface: Supports maximum throughput for demanding applications.
• Robust Performance: Designed to operate effectively in overcrowded RF environments.
• Cloud Management Platform: Integrated with cnMaestro for end-to-end network visibility and simplified management.

Specifications

• Dimensions: Diameter 470 x Depth 280 mm
• Weight: 2.4 GHz Model: 2.8 kg, 5 GHz Model: 2.3 kg
• Power Consumption: 10 W Maximum, 5 W Typical
• Input Voltage: 10 to 30 V
• Temperature: -30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F)
• Weather Proof Rating: IP55
• Frequency Range: 2.4 GHz Model: 2402 – 2472 MHz 5 GHz Model: 4910 - 5970 MHz
• Antenna Gain: 17 dBi
• Throughput: Over 200 Mbps
• Latency: Round-trip latency as low as 2-3 ms
• Operating Modes: Configurable for symmetrical and asymmetrical traffic
