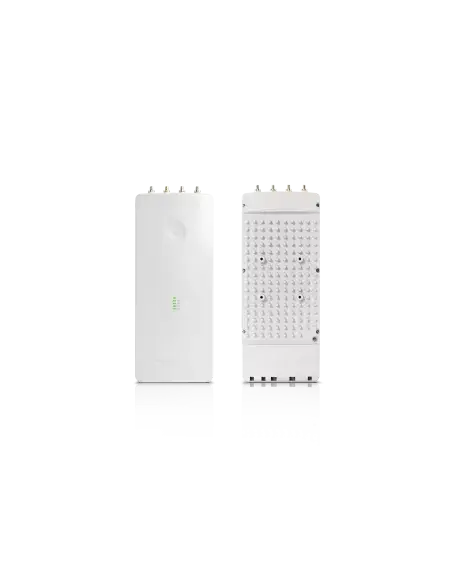

Cambium ePMP 3000 5GHz ac MU-MIMO Base Station

The Cambium ePMP 3000 is a third-generation access point designed to deliver high performance, scalability, and reliability in challenging environments. With its advanced MU-MIMO technology, it can double throughput at the sector level while serving multiple subscribers simultaneously.

Features

• MU-MIMO Technology: Supports Multi-User MIMO, allowing simultaneous connections for two users, effectively doubling throughput.
• High Throughput: Achieves peak throughput of up to 1.2 Gbps, catering to the needs of high-demand applications.
• GPS Synchronization: Ensures frequency reuse and optimal performance by synchronizing multiple access points.
• Advanced Air-Fairness Scheduler: Manages up to 120 active subscriber modules without performance degradation.
• Dynamic Filtering: Reduces off-channel noise and improves performance in environments with strong interference.
• TDD Synchronization: Scales to thousands of end users leveraging a limited number of channels.
• Interoperability: Compatible with all Force 300 Subscriber Modules and backward compatible with Force 180/190/200.

Specifications

• Frequency Range: 4910 - 5970 MHz
• Channel Width: 20 | 40 | 80 MHz
• Transmit Power: Up to +32 dBm
• Receive Sensitivity: MCS 0 = -92 dBm to MCS 9 = -68 dBm (per chain) at 20 MHz
• Power Consumption: 25 W Maximum
• Ethernet Interface: 100/1000 BaseT, rate auto-negotiated
• Environmental Rating: IP55
• Operating Temperature: -30°C to 55°C
• Weight: 0.7 kg (1.5 lbs) without bracket
