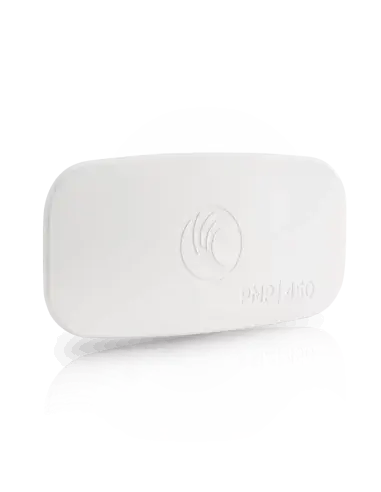

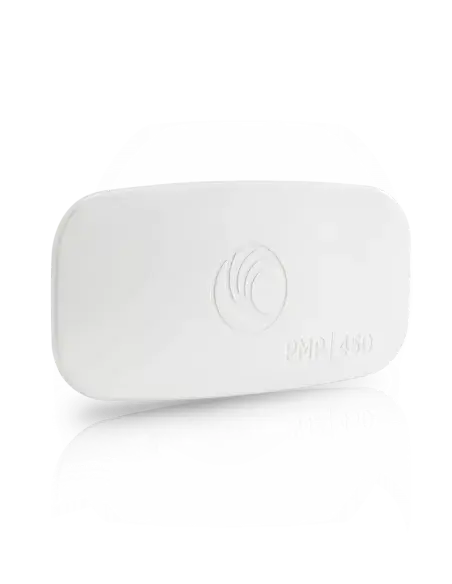

Cambium 450b 5GHz Mid-Gain SM Radio

The Cambium 450b 5GHz Mid-Gain SM Radio is a high-performance wireless solution designed for reliable connectivity in various environments. Supporting ultra-wideband frequencies from 4.9 to 5.925 GHz, this device is ideal for Point-to-Point (PTP) and Subscriber Module (SM) applications, ensuring optimal performance and flexibility.

Features

• Ultra-Wideband Support: Operates across the entire band from 4.9 to 5.925 GHz, providing extensive coverage.
• High Throughput: Capable of achieving up to 300 Mbps aggregate throughput in a 40 MHz channel, ensuring fast data transfer.
• Advanced Packet Processing: Features a new System on a Chip (SoC) that enhances packet processing power by over four times.
• Gigabit Ethernet Interface: Ensures maximum transfer rates to the device for efficient data handling.
• 3.5 mm Audio Jack: Allows direct connection of headphones without the need for additional adapters, simplifying alignment tasks.
• Flexible Operation: Can function as either a Point-to-Point (PTP) link or as a Subscriber Module (SM), providing versatility in deployment.

Specifications

• Frequency Range: 4.9 - 5.925 GHz
• Maximum Throughput: 300 Mbps in a 40 MHz channel
• Packet Processing Power: Enhanced by more than 4 times compared to previous models
• Antenna Gain: Mid-Gain (17 dBi)
• Environmental Rating: IP67 for rugged outdoor use
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Weight: 0.9 kg (2 lbs.) including mounting bracket
• Dimensions: 240 x 100 x 90 mm (HxWxD)
