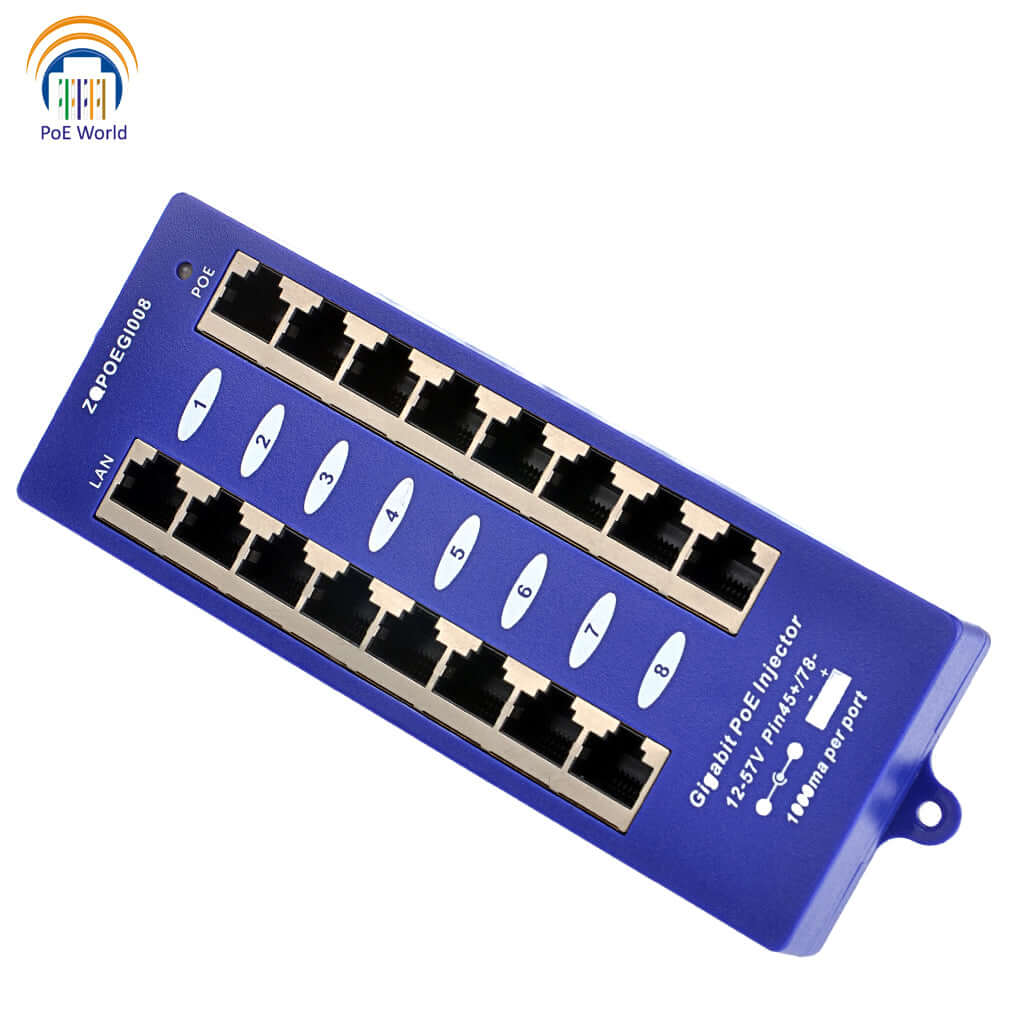

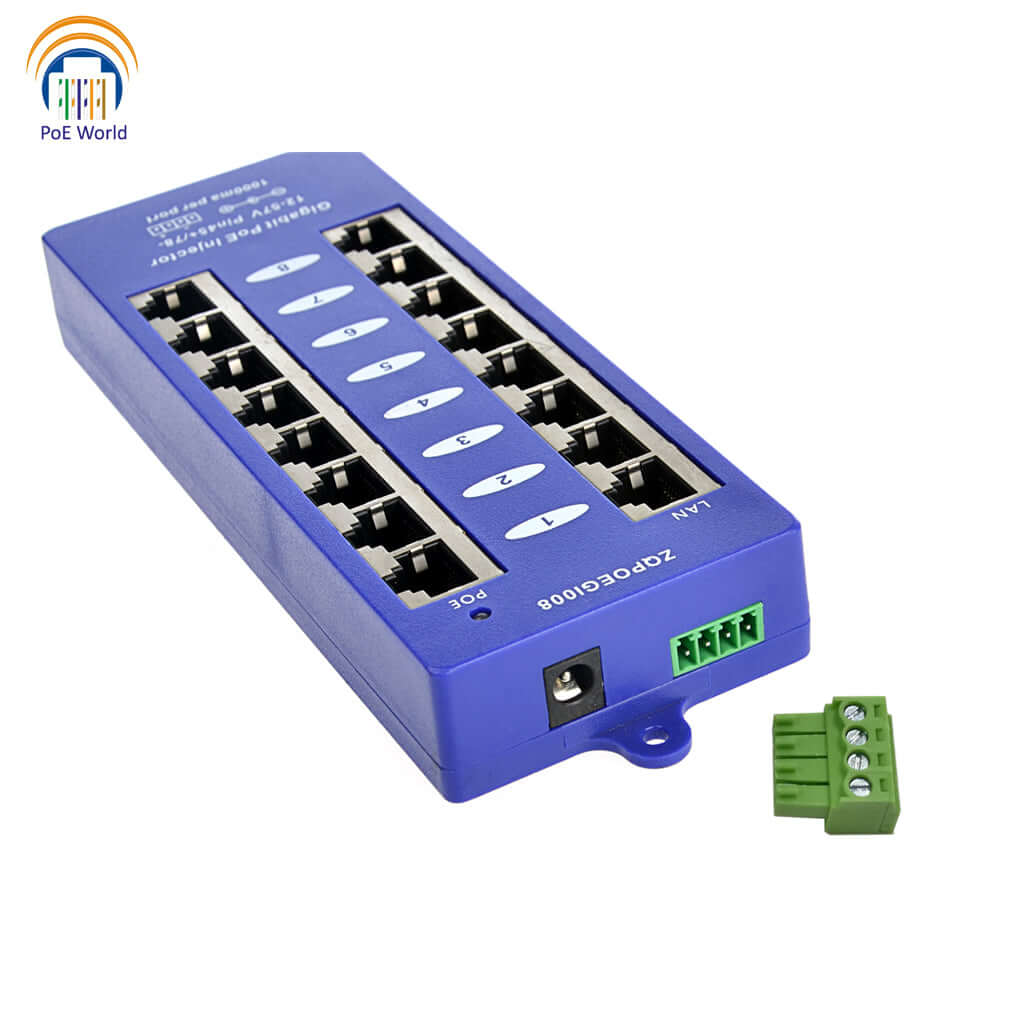

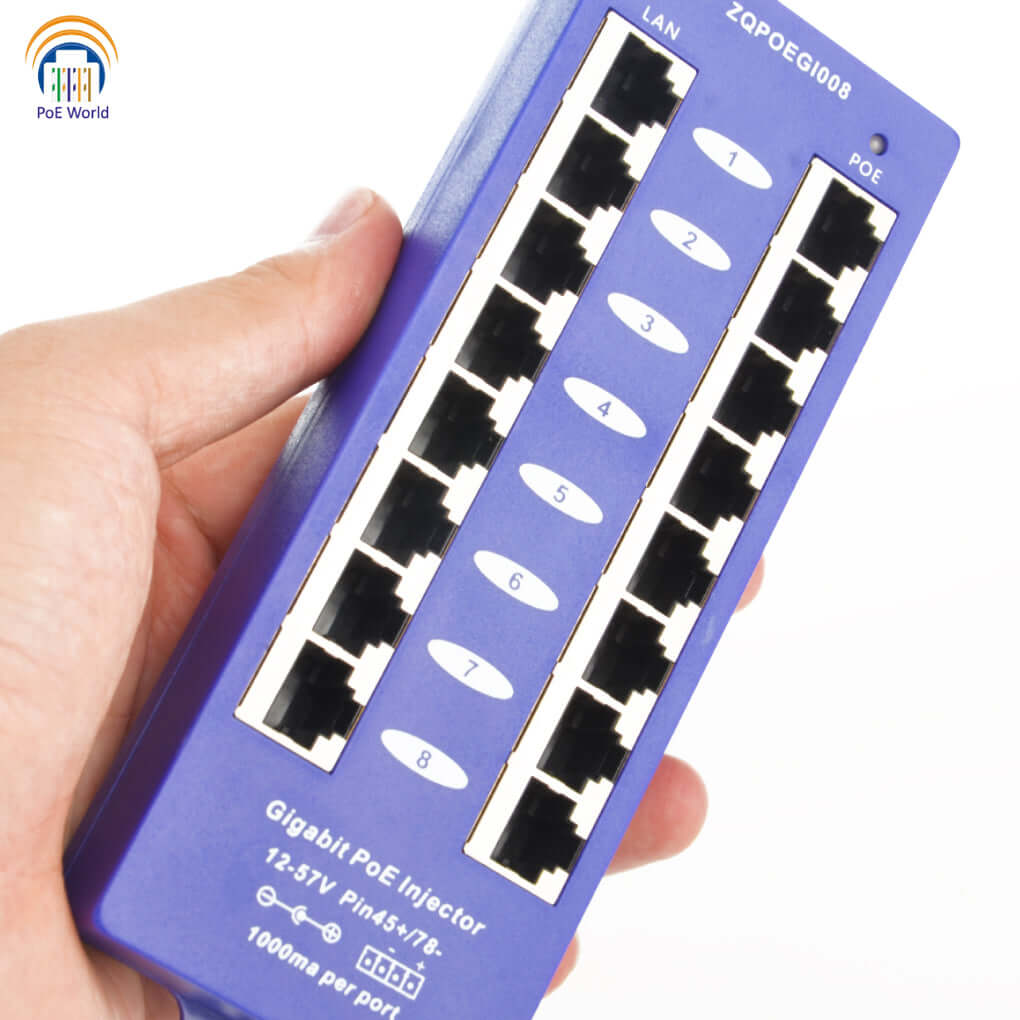

BrandName 8-Port Gigabit Passive PoE Injector

The BrandName 8-Port Gigabit Passive PoE Injector is designed for efficient power distribution over Ethernet cabling, making it ideal for powering multiple devices such as IP cameras, VoIP phones, and WiFi access points. With a robust design that supports both DC and terminal powering options, this injector ensures reliable performance in various networking environments.

Features

• 8-Port Configuration: Supports up to 8 devices simultaneously, providing both data and power through standard Ethernet cables.
• Gigabit Compatibility: Offers 10/100/1000 Mbps speeds, ensuring high-speed data transfer for connected devices.
• Passive PoE: Delivers power consistently without the need for negotiation with powered devices, ideal for passive PoE devices.
• Wide Voltage Range: Accepts input voltage from 12V to 57V, allowing flexibility in power supply options.
• Wall-Mountable: Designed for easy installation, the injector can be securely mounted on walls, saving valuable space.
• Automatic Resettable Fuses: Protects each port with built-in fuses that reset automatically, enhancing safety and reliability.

Specifications

• Ethernet Ports: 8x PoE + 8x Ethernet
• Max Current Per Port: 1000mA
• Operating Temperature: 0°C to 40°C
• PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
• PoE Output: Power output determined by the connected power supply
• Power Input: 12-57V (Power Supply Not Included)
• Dimensions: 145 x 16 x 38 mm
• Weight: 0.3 kg
