Beamz BC50-250T Aluminum Quick Trigger Coupler, 48-51mm Diameter, 250kg Load
Beamz BC50-250T Aluminum Quick Trigger Coupler, 48-51mm Diameter, 250kg Load
SKU:151.421B
244 in stock
Couldn't load pickup availability

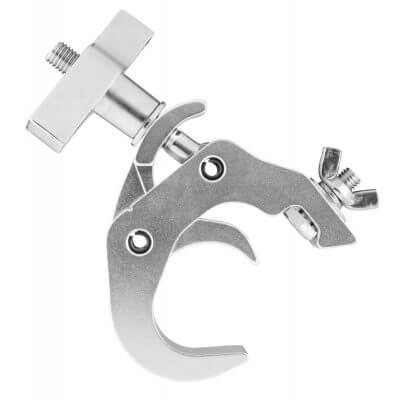

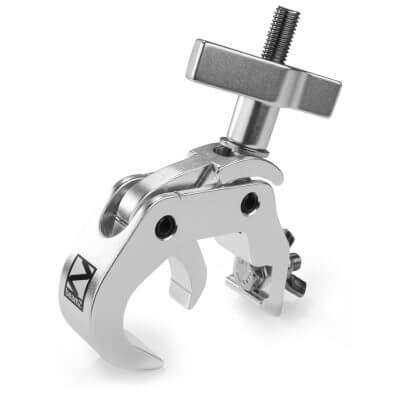

The Beamz BC50-250T Aluminum Quick Trigger Coupler is a robust and versatile clamp designed for pipe and truss mounting fixtures. Made from durable die-casting aluminum, this self-locking clamp features an ergonomic big handle that protects the user's palm from the obstructive bolt, ensuring comfortable and efficient use. The clamp's jaw opening accommodates a wide range of tube systems, and its handle is positioned horizontally for easy access, allowing users to fasten the coupler without crossing the truss brace. With a maximum load capacity of 250kg, this clamp is ideal for secure and stable mounting in various settings.
Features
- Die-casting aluminum construction for durability and strength
- Ergonomic big handle to protect the user's palm from the obstructive bolt
- Jaw opening accommodates a wide range of tube systems
- Horizontal handle position for easy access and fastening
- Self-locking mechanism for secure and stable mounting

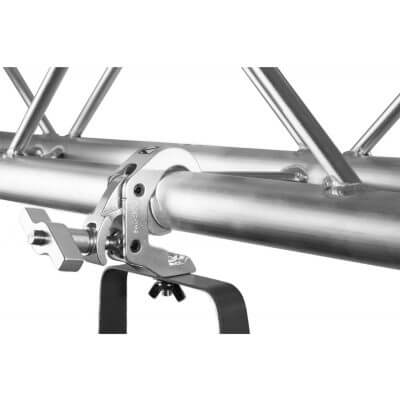

- Suitable for pipe and truss mounting fixtures
Specifications
- Material: Aluminum
- Color: Aluminium
- Jaw Opening Diameter (D1): 114mm
- Tube Diameter Range (D2): 40 - 63mm
- Bolt Diameter (D3): 12mm
- Overall Diameter (D4): 68mm
- Width (W): 30mm
- Threaded Bolt: M12
- Maximum Weight Load: 250kg
- Weight: 0.460kg
