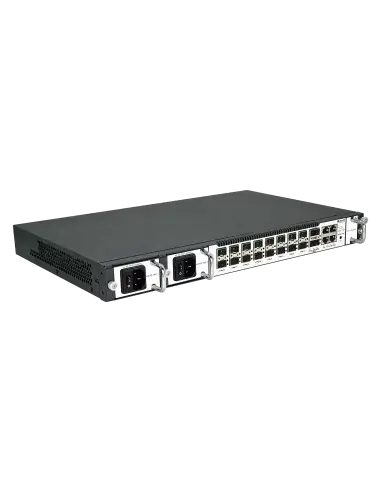

BDCOM XGS-PON Combo L3 OLT 8-Port Headend

The BDCOM XGS-PON Combo L3 OLT 8-Port Headend is an advanced networking solution designed for efficient fiber-to-the-home and fiber-to-the-business deployments. It features a compact design, high-performance capabilities, and supports various optical network units (ONUs), making it ideal for internet service providers looking to enhance their service offerings.

Features

• 8-Port XGS-PON Combo: Supports both GPON and XGS-PON ONUs, enabling flexible network configurations.
• High Capacity: Equipped with 8-port 10G SFP+ and 2-port 100G QSFP28 for robust data transmission.
• Multiple Redundancy Protocols: Supports FlexLink, STP, RSTP, MSTP, ERPS, and LACP for enhanced network reliability.
• Compact Design: 1U height allows for easy installation in standard racks.
• Advanced Traffic Management: Features like traffic rate limiting, packet mirroring, and priority marking for optimized performance.
• Robust Security: Offers SSH 2.0, SNMP v3 encrypted management, and IP source guard to prevent unauthorized access.

Specifications

• Power Supply: AC (100~240V) or DC (36~72V) options available.
• Max Power Consumption: 100W.
• Operating Temperature: -10°C to 50°C.
• Dimensions: 440mm (W) x 270mm (D) x 44mm (H).
• Weight: 4.3kg (empty).
• MTBF: 200,000 hours.
• Certification: CE, FCC, ROHS.
