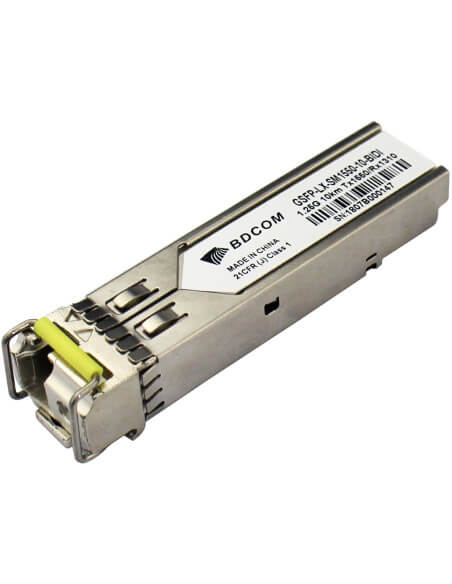

BDCOM SFP Bi-Directional 1550nm 10km Single-Mode

The BDCOM Single-Mode Bi-Directional SFP 10km module is designed for high-speed data transmission over fiber optic networks. With a dual-channel design using TX1550/RX1310 wavelengths, it supports data rates up to 1.25Gbps, making it ideal for both residential and business applications in fiber-to-the-home (FTTH) and fiber-to-the-business (FTTB) deployments.

Features

• Bi-Directional Transmission: Supports simultaneous data transmission over a single fiber, reducing the need for additional cabling.
• High Data Rate: Capable of transmitting data at speeds up to 1.25Gbps.
• Long Distance Capability: Effective over distances up to 10km, suitable for various network topologies.
• Low Power Consumption: Designed for energy efficiency, minimizing operational costs.
• Digital Diagnostic Monitoring (DDM): Provides real-time monitoring of the optical module's performance and status.
• Hot-Pluggable: Allows for easy installation and replacement without the need to power down the system.
• Robust Design: Metal enclosure for lower electromagnetic interference (EMI) and enhanced durability.
• RoHS Compliant: Environmentally friendly design, free from harmful substances.

Specifications

• Wavelength: TX1550/RX1310 nm
• Interface: LC pluggable optical interface
• Data Rate: Up to 1.25Gbps
• Power Supply: Single +3.3V
• Operating Temperature: 0℃ to 70℃
• Compliance: Compliant with SFF-8472 standards
