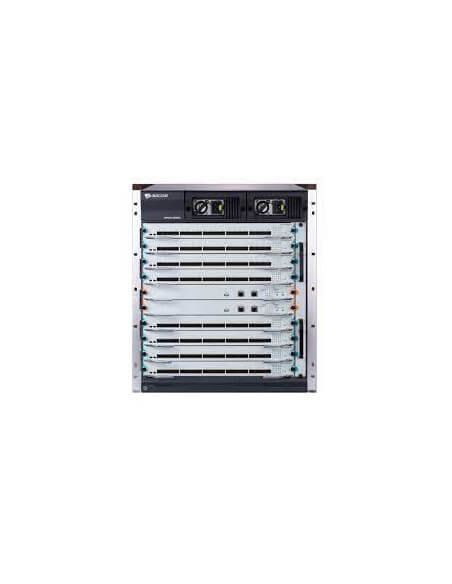

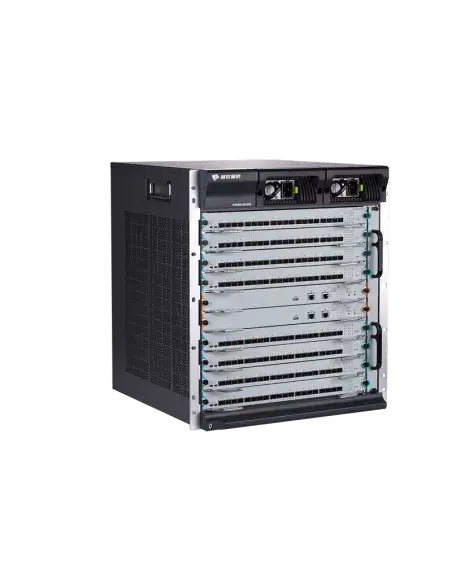

BDCOM GPON OLT Chassis 10 Expansion Slots

The BDCOM GP6606-10 is a high-performance GPON OLT (Optical Line Terminal) chassis designed for scalable and reliable fiber network deployment. With 10 expansion slots, it allows for flexible configuration and supports automatic discovery of ONTs, making it an ideal choice for building Fiber-to-the-Home (FTTH) and Fiber-to-the-Business (FTTB) networks.

Features

• 10 Expansion Slots: Provides flexibility for network expansion and configuration.
• Automatic Discovery: Simplifies the integration process with ONTs from various manufacturers.
• Carrier Grade Performance: Supports up to 128 PON ports and a maximum of 16,000 ONTs, ensuring robust network scalability.
• Low Power Consumption: Designed for efficient operation, reducing operational costs.
• Hot-Swap Support: Allows for easy maintenance and upgrades without downtime.

Specifications

• Compliance: ITU-T G.984/G.988
• Max. GPON Ports: 128
• Supported GPON SFP Modules: Class B+, Class C+, Class C++
• Power Supply: Dual power supply slots for redundancy
• Dimensions (WxDxH): 482.6 x 548 x 399.7 mm
• Weight (Empty): 47.4 kg
• Operating Temperature: 0~45°C
• Humidity: 10%~85% (non-condensing)
• MTBF: 90,000 hours
• Certification: CE, FCC, ROHS
