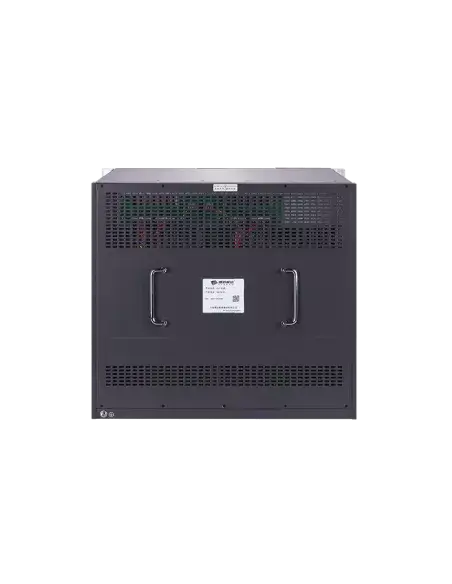

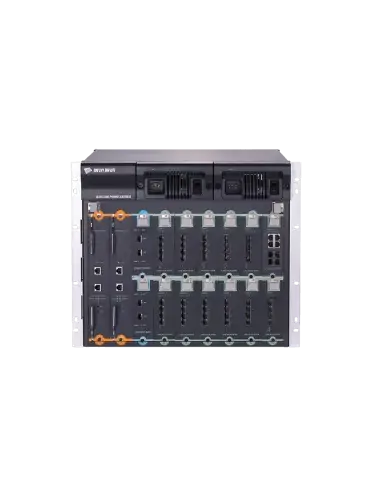

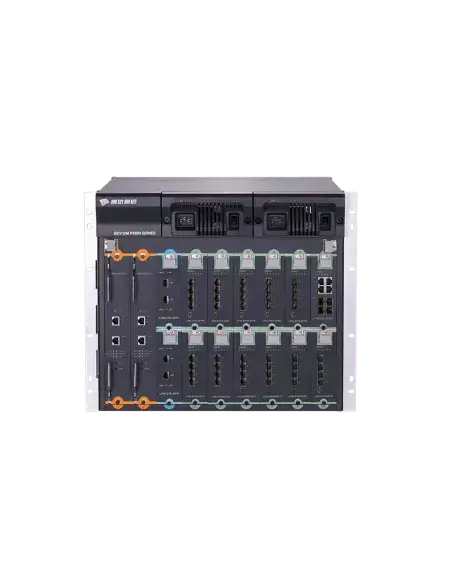

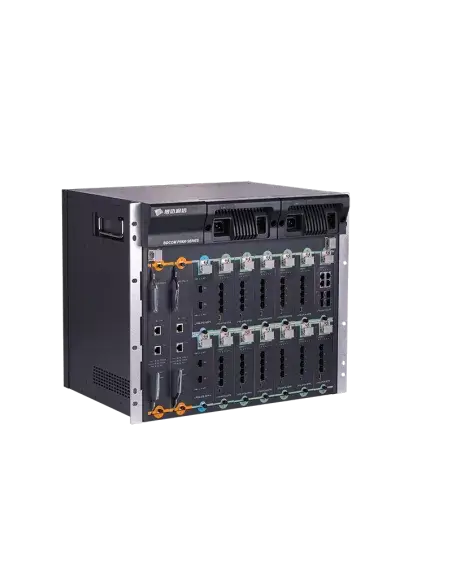

BDCOM EPON OLT Chassis - Empty

The BDCOM EPON OLT Chassis is a cutting-edge broadband and multi-service access device designed for service-integrated networks. With support for multiple slots, it is ideal for building FTTx and FTTH networks, ensuring high reliability and performance.

Features

• High Density: Supports 2 console panel slots, 2 GE slots, and 12 Gigabit slots for flexible network configurations.
• Broadband Access: Designed for both FTTx and FTTH applications, making it versatile for various deployment scenarios.
• Modular Design: Allows for easy upgrades and expansions to meet growing network demands.
• Built-in Redundancy: Features a '1+1' backup power supply option, ensuring continuous operation and high reliability.
• Advanced Network Management: Compatible with various management protocols such as SNMP, Telnet, and CLI for streamlined network operations.

Specifications

• Maximum Coupling Ratio: 1:64
• Backplane Bandwidth: 768 Gbps
• MAC Capacity: 64K
• Maximum Number of PON Ports: 48
• Uplink and Downlink Rate: 1.25 Gbps
• Standard Compliance: IEEE802.3ah, YD/T 1475-2006, CTC2.1/3.0
• Operating Temperature: 0℃ to 45℃
• Dimensions (W x D x H): 399.2 mm x 315 mm x 482.6 mm
