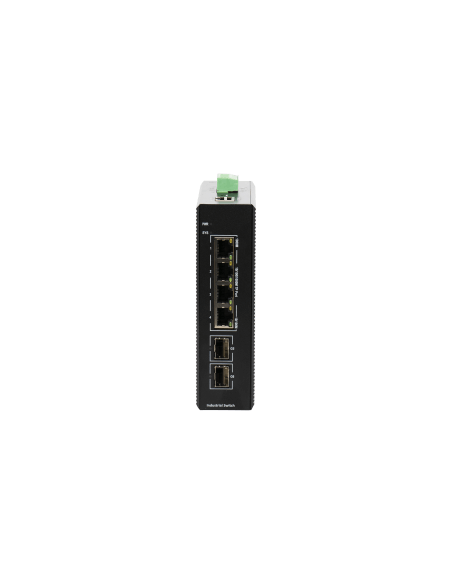

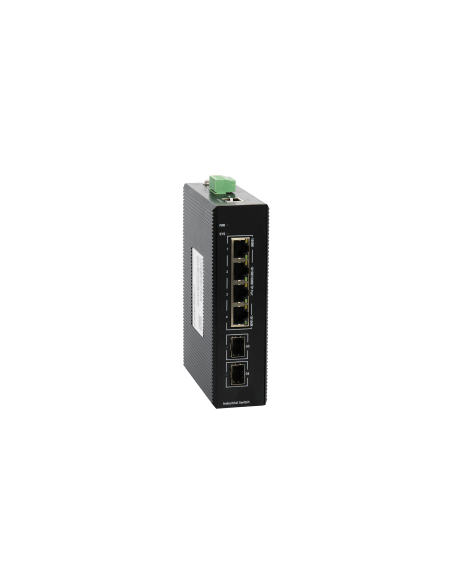

BDCOM 4-Port Gigabit Industrial PoE+ Switch

The BDCOM 4-Port Gigabit Industrial PoE+ Switch is engineered for robust performance in demanding environments. With its managed capabilities and dual SFP ports, this switch provides reliable connectivity and power for your network devices, making it ideal for industrial applications. Its IP40-rated housing and 6kV lightning protection ensure durability, while the 120W PoE budget supports a variety of powered devices.

Features

• 4 PoE+ Ports: Provides power and data over a single cable to devices such as IP cameras and VoIP phones.
• 2 SFP Ports: Supports fiber connections for extended network reach and flexibility.
• Managed Switch: Offers advanced management features for enhanced control and monitoring of your network.
• DIN-Rail Mountable: Designed for easy installation in industrial environments.
• IP40 Rated: Protects against dust and solid objects, ensuring reliability in harsh conditions.
• 6kV Lightning Protection: Safeguards the device against electrical surges and lightning strikes.
• Dual Redundant Power Supply: Accepts 48-55V DC input for enhanced reliability and uptime.

Specifications

• Product Code: BDCOM-IS200-2S4P
• Manufacturer SKU: IES200-V25-2S4P
• RJ45 Gigabit Interfaces: 4 PoE+ Ports
• SFP Ports: 2
• Console Port: 1 RJ45
• Backplane Capacity: 56 Gbps
• Forwarding Rate: 9 Mpps
• Chassis Dimensions (WxDxH): 145 x 108 x 40 mm
• Chassis Weight (empty): 0.8 kg
• Package Dimensions (WxDxH): 175 x 130 x 55 mm
• Total Weight: 1.3 kg
• Power Consumption (no-load): <12W
• Power Consumption (full-load with PoE): 140W
• PoE Power Budget: 120W
• MTBF: >800,000 hours
• Forwarding Mode: Store-and-forward
• Flash Memory: 16 MB
• DRAM: 128 MB
• MAC Address Table: 8K
• Buffer Size: 4 MB
• Jumbo Frame Support: Up to 9K
• Total SVI: 10
