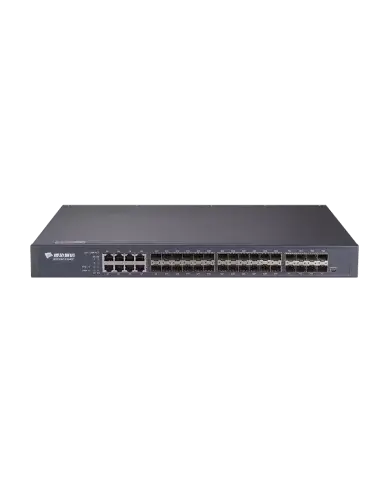

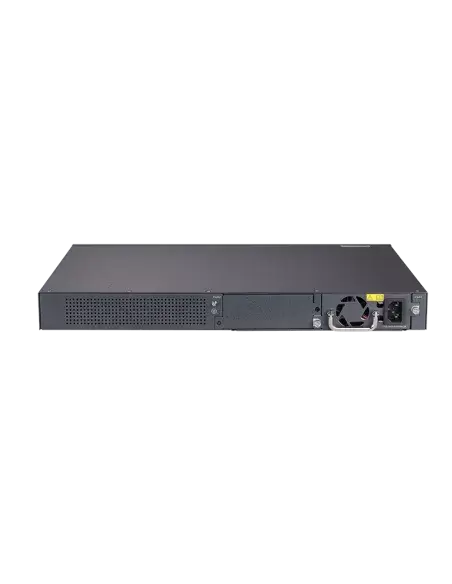

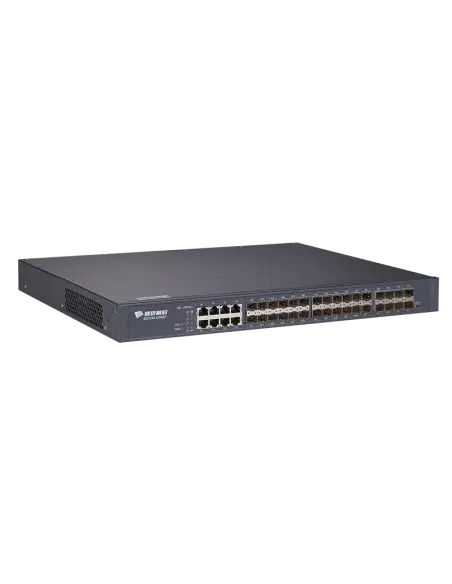

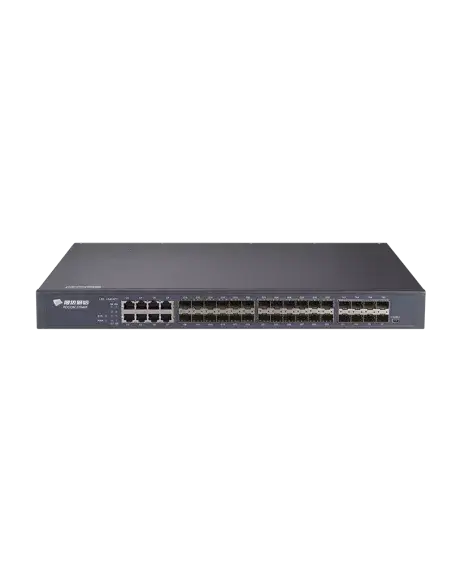

BDCOM 24-Port SFP+ Managed Switch

The BDCOM 24-Port SFP+ Managed Switch (S3740F) is a high-performance networking solution designed for metropolitan, campus, and enterprise environments. With its advanced features and easy management capabilities, it enhances networking efficiency while reducing operational costs.

Features

• 24 SFP Ports: Supports high-speed fiber connections for enhanced data transmission.
• Single IP Management: Simplifies network management and reduces operational complexity.
• Continuous PoE Supply: Ensures uninterrupted power to connected devices during hot restarts.
• Layer 3 Capabilities: Offers advanced routing features suitable for complex network architectures.
• Robust Performance: Built on high-performance hardware with a strong software platform (BDROS).

Specifications

• Model: S3740F
• Interface: 24 GE SFP ports, 8 GE TX ports, 8 10GE/GE SFP+ ports
• Console: 1 Mini USB port
• Backplane: 176 Gbps
• Forwarding Rate: 132 Mpps
• Dimensions (WxDxH): 440 x 350 x 44 mm
• Weight: 5.5 kg (empty), 6.7 kg (packaged)
• Power Consumption: < 32W (no-load), 64W (full-load)
• Power Supply: AC 100V-240V, 50Hz±10%, 75W
• Operating Temperature: 0℃ to 50℃
• Certification: CE, FCC, ROHS
