AVLINK HQS201 Adjustable Wall Mount for 13-40 Inch TVs

The AVLINK HQS201 is a compact and adjustable wall mount bracket designed for mounting TVs and monitors ranging from 13 to 40 inches. Constructed from reinforced steel, this bracket supports a maximum weight of 15kg and features a versatile design that allows for tilting and swiveling, ensuring optimal viewing angles. Installation is straightforward, with all necessary hardware included, making it an excellent choice for both plaster and concrete walls.

Features

• Adjustable Design: Supports screens from 13" to 40" with a maximum weight capacity of 15kg.
• Tilting and Swiveling: Allows for a tilt range of -5° to 15° and swivels up to 180°, providing flexible viewing options.
• Reinforced Steel Construction: Durable and sturdy, ensuring long-lasting performance.
• Easy Installation: Comes with all required installation hardware and an integrated spirit level for precise mounting.
• VESA Compatibility: Supports VESA sizes 75x75, 100x100, and includes adaptors for 200x200mm.

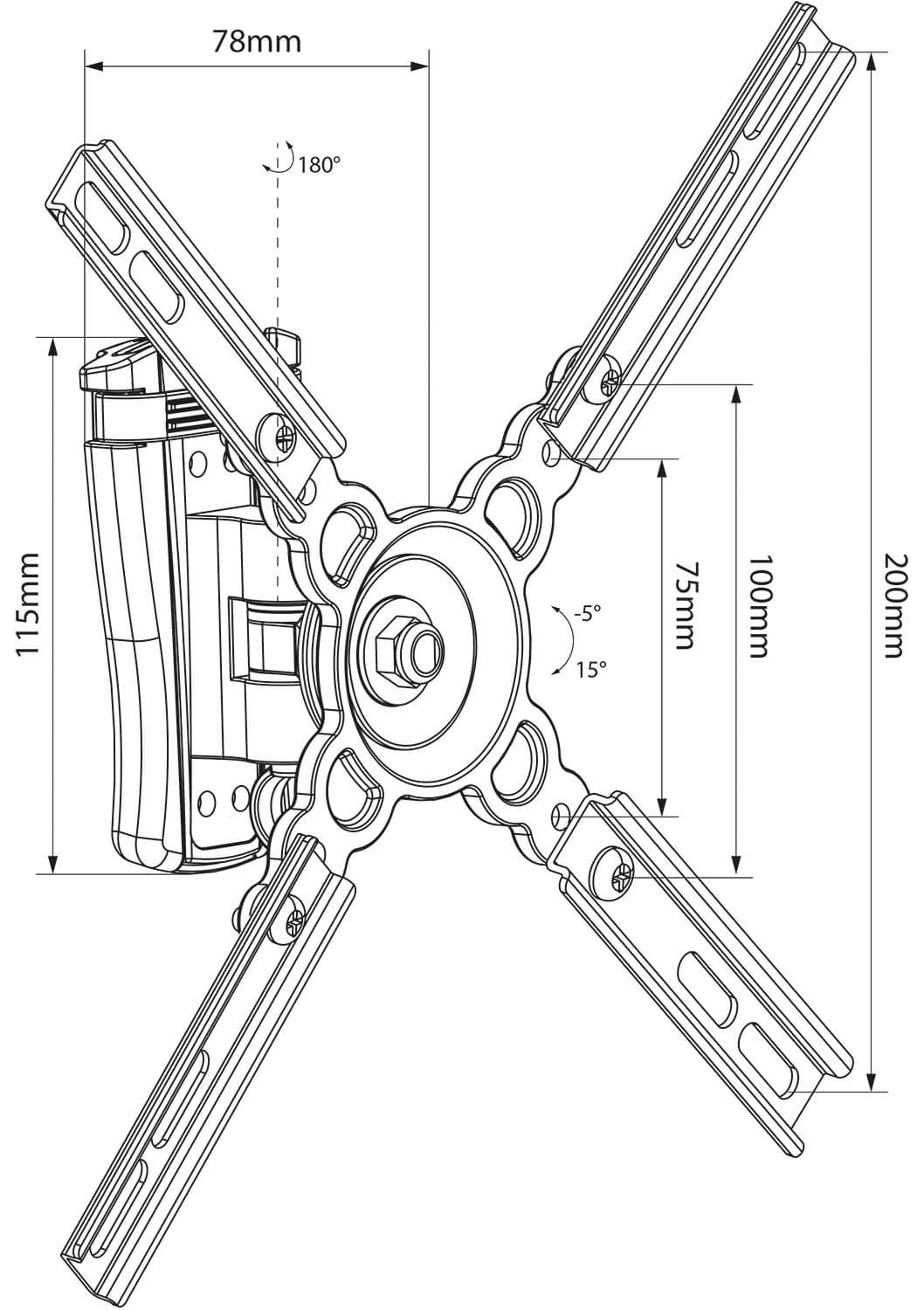

Specifications

• Max Screen Size: 40 inches
• Min Screen Size: 13 inches
• Max Weight Load: 15kg
• VESA Mounting Patterns: 75x75mm, 100x100mm, and 200x200mm (with adaptors)
• Distance from Wall: 78mm
• Wall Plate Dimensions: 57mm x 115mm
• Total Weight: 640g
