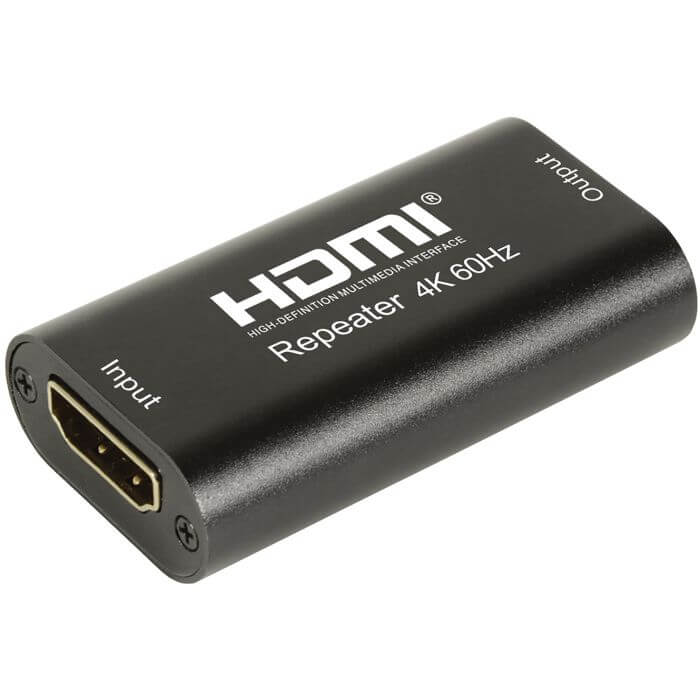

AVLINK HDR4KV2 4K HDMI Repeater - High-Performance Video Booster

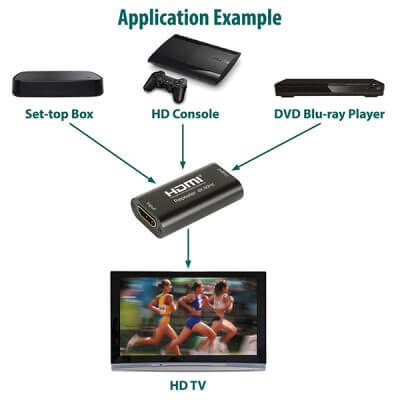

The AVLINK HDR4KV2 4K HDMI 2.0 Repeater is a compact and efficient solution for extending HDMI signals over long distances without loss of quality. This device allows you to connect HDMI cables of up to 40m combined length, ensuring minimal signal degradation. Perfect for high-resolution applications, it supports 4K@60Hz for cable lengths up to 10m, or 4K@30Hz and FHD resolutions for lengths up to 40m. Compatible with the latest 4K digital TV boxes, this repeater is essential for any home theater or professional AV setup.

Features

• 4K@60Hz Support: Maintains 4K resolution without signal loss over combined 10m cable length.
• Extended Range: Supports 4K@30Hz and FHD resolutions over combined 40m cable length.
• Easy Installation: Simple connection process with no external power source required.
• HDMI v2.0b Compatibility: Supports resolutions up to 3840 x 2160 @ 60Hz.
• Audio Format Support: Compatible with DTS-HD, Dolby True, DTS, Dolby-AC3, and DSD audio formats.

Specifications

• HDMI Version: v2.0b
• HDCP Version: 2.2
• Video Resolution: Up to 3840 x 2160P @ 60Hz
• Audio Format: DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
• Max Bandwidth: 600Mhz
• Max Baud Rate: 3 x 6Gbps
• Transmission Distance: 10m for 4K@60Hz (5m input/5m output), 40m for 4K@30Hz and 1080p (20m input/20m output)
• Max Working Current: 300mA
• Dimensions: 50 x 30 x 18mm
• Weight: 21g
