AVLINK 50M HDMI Extender Wallplate Kit with Bi-Directional IR

The AVLINK HDMI Over Cat5/6 Extender Wallplate Kit allows you to extend HDMI signals over a single Cat5e or Cat6 cable up to 50 meters without any signal loss. This kit is perfect for installations where the HDMI source is located far from the display, ensuring high-quality video and audio transmission. It supports 3D and HD video content up to 1080p and features bi-directional IR control for convenient remote operation.

Features

• Extends HDMI transmission distance up to 50 meters using a single Cat5e or Cat6 cable.
• Supports 1080p and 3D video content for high-definition viewing.
• Bi-directional IR control allows remote operation from both ends.

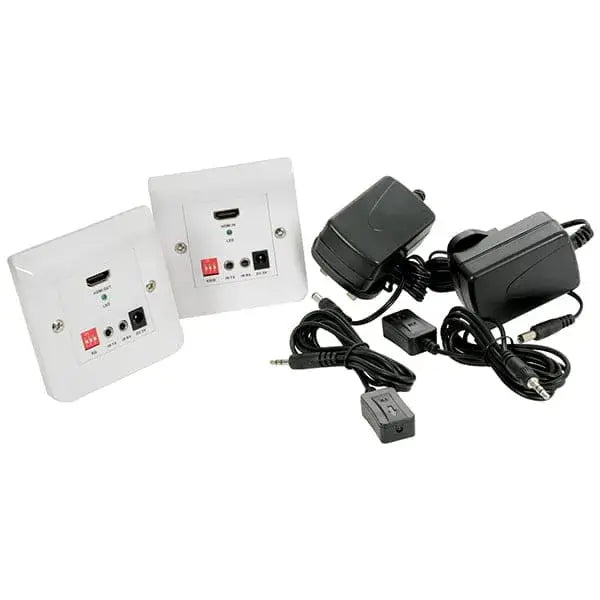

• Easy installation with included wallplates and power supplies.
• EDID management ensures compatibility with various display types.

Specifications

• HDMI Version: High speed with 3D support
• HDCP Version: 1.2
• Video Resolution: 1080P/1080i/720P/576P/576i/480P/480i
• Audio Output: Surround sound up to 7.1 channels or digital stereo
• Data Transfer Rate: Max 6.75 Gbps
• Operating Temperature Range: -5°C to +35°C
• Operating Humidity Range: 5% to 90% RH (no condensation)
• Power Supply: 5V/1.2A DC
• Power Consumption: 3W (max)
• Dimensions: 86 x 86 x 33 mm (each unit)
• Weight: 47g (each unit)
