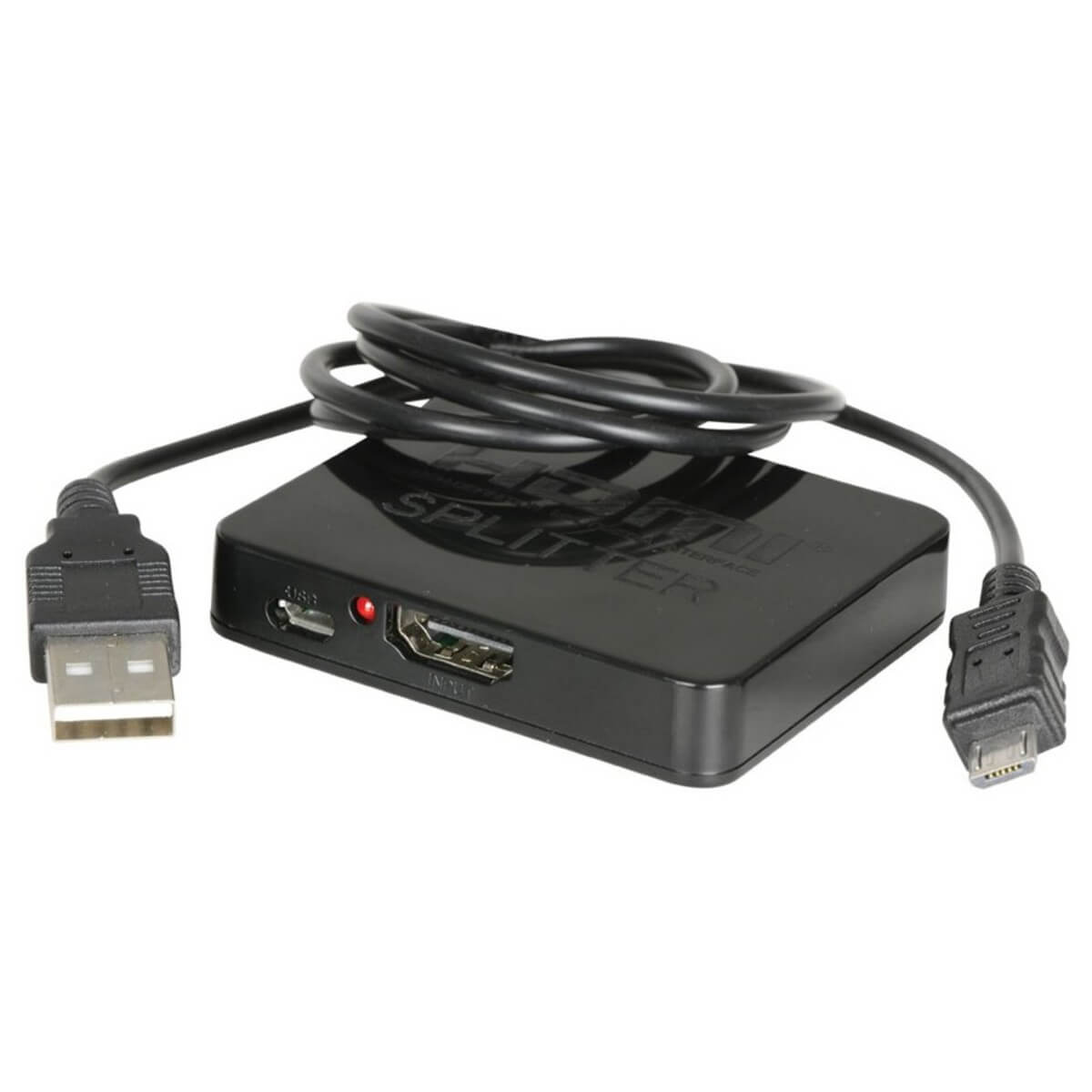

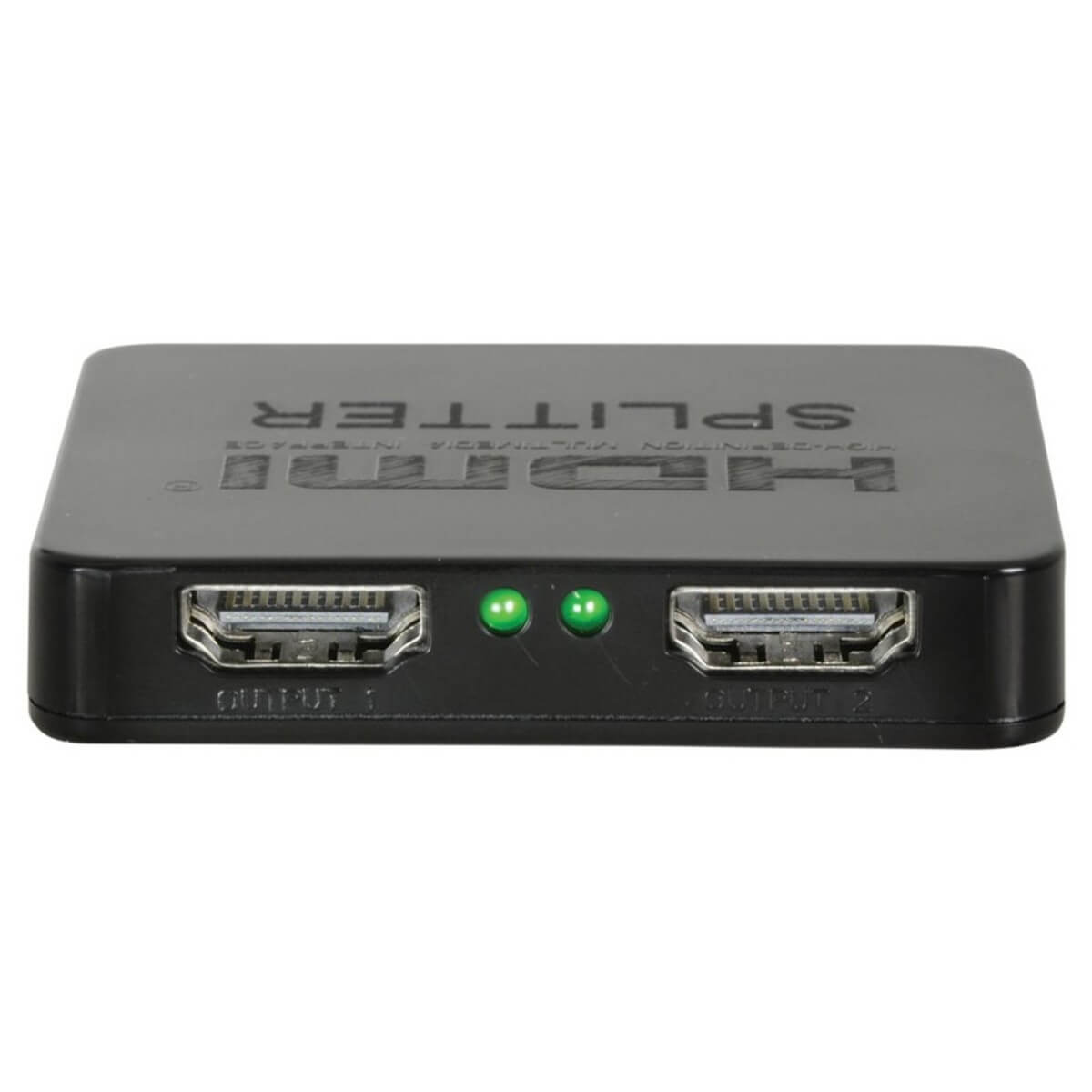

AVLINK 1x2 HDMI Mini Splitter for Multi-Display Signal Distribution

The AVLINK 1x2 HDMI Mini Splitter is a compact and efficient solution for distributing a single HDMI source to two displays simultaneously. Perfect for commercial and hospitality environments, this splitter supports high-definition resolutions up to 4K and ensures minimal signal loss. It features gold-plated connectors for optimal signal transfer and includes a USB power cable for additional power if needed.

Features

• Compact Design: Small form factor chassis that fits easily in any setup.
• High Resolution Support: Distributes 4K video and supports up to 1080p at 60Hz.
• 3D Compatibility: Capable of handling 3D video formats for immersive experiences.
• Multiple Audio Format Support: Compatible with DTS-HD, Dolby-trueHD, DTS/Dolby-AC3, and DSD HD (HBR).
• HDCP 2.2 Compliance: Ensures compatibility with the latest HDCP standards for secure content transmission.
• Plug and Play: No additional power required when using HDMI cables that provide power.
• Live Output LEDs: Indicator lights show the operational status of the splitter.

Specifications

• HDMI Version: 1.4a
• Max Video Format: 4K, Up to 1080p @ 60Hz
• Max Audio Format: DTS-HD, Dolby-trueHD, DTS/Dolby-AC3, DSD HD (HBR)
• Operating Temperature Range: -15 to +55°C
• Max Bandwidth: 340MHz
• Max Baud Rate: 3.4Gbps
• Max Working Current: 350mA
• Dimensions: 62 x 51 x 11 mm
• Weight: 31 g
