Audio-Technica VM750SH Dual Moving Magnet Stereo Cartridge with Shibata Stylus

The Audio-Technica VM750SH is a premium dual moving magnet stereo cartridge that features a Shibata stylus, designed to deliver exceptional sound quality and detail. This cartridge is part of Audio-Technica's renowned VM series, combining advanced technology with a classic design to enhance your vinyl listening experience. With outstanding channel separation and an extended frequency response, the VM750SH ensures your records sound their best, capturing every nuance of the music.

Features

• Dual Magnet Design: Provides superior channel separation and frequency response by positioning magnets to match left and right channels in the stereo groove.
• Shibata Stylus: Offers greater surface contact with the record groove, resulting in less distortion and the ability to capture ultra-high frequencies.

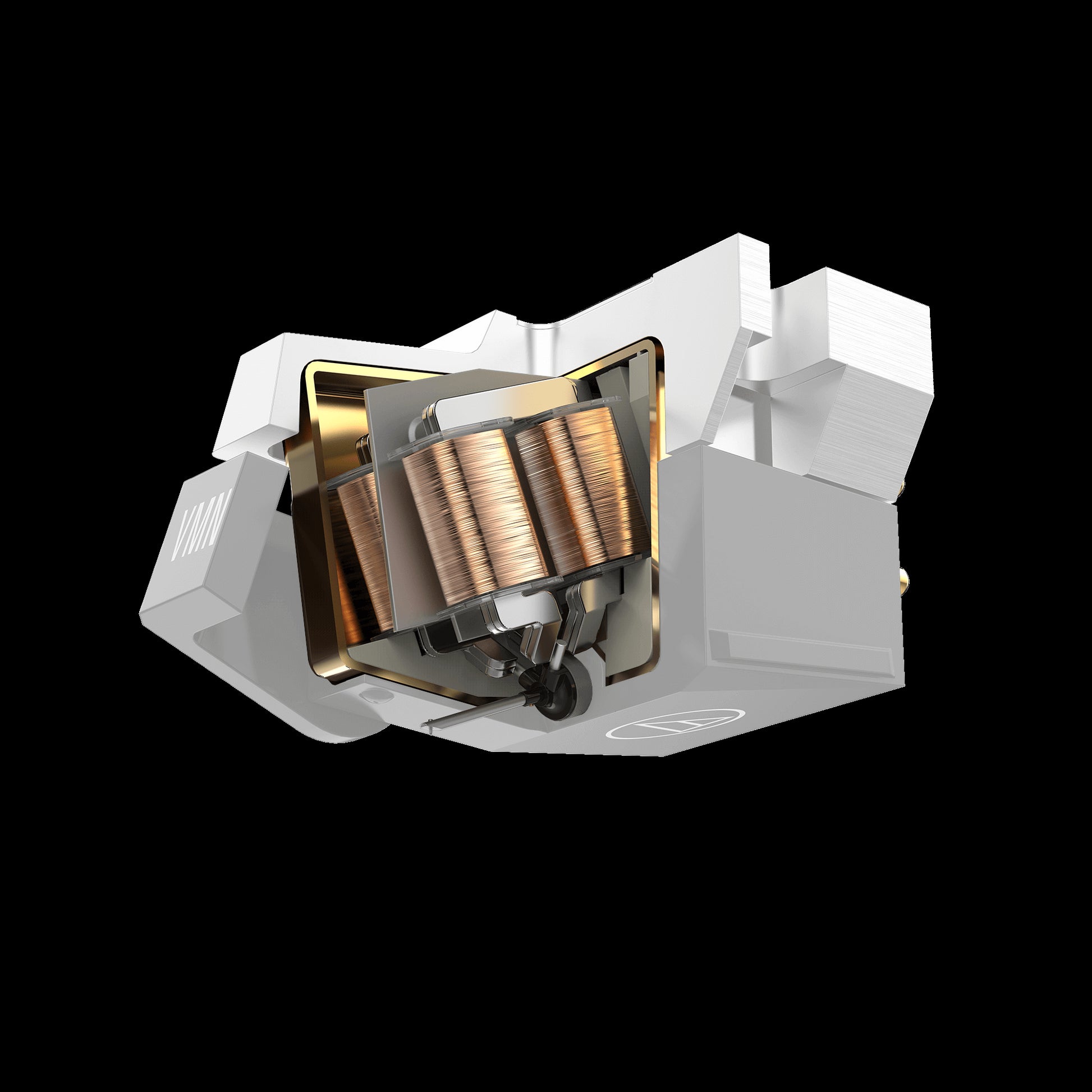

• Para-Toroidal Coil System: Enhances generating efficiency and offers superb linearity, minimizing magnetic flux leakage.
• Aluminum Tapered Cantilever: Reduces unwanted vibrations, contributing to a clearer sound.
• Wide Frequency Response: Ranges from 20 Hz to 27 kHz, ensuring a rich audio experience across the entire spectrum.
• Easy Installation: Comes with all necessary mounting hardware, including screws and a non-magnetic screwdriver.

Specifications

• Frequency Response: 20 - 27,000 Hz
• Channel Separation: 30 dB (1 kHz)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8 - 2.2 g (2.0 g standard)
• Stylus Construction: Nude square shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 2,700 ohms (1 kHz)
• DC Resistance: 800 ohms
• Output Voltage: 4.0 mV (at 1 kHz, 5 cm/sec)
• Output Channel Balance: 1.0 dB (1 kHz)
• Stylus Shape: 2.7 x 0.26 mil Shibata
• Cantilever: Aluminum tapered pipe
• Static Compliance: 40 x 10^-6 cm/dyne
• Dynamic Compliance: 10 x 10^-6 cm/dyne (100 Hz)
• Mounting: Half-inch
• Dimensions: 17.3 mm (H) x 17.0 mm (W) x 28.2 mm (D)
• Weight: 8.0 g
• Replacement Stylus: VMN50SH
