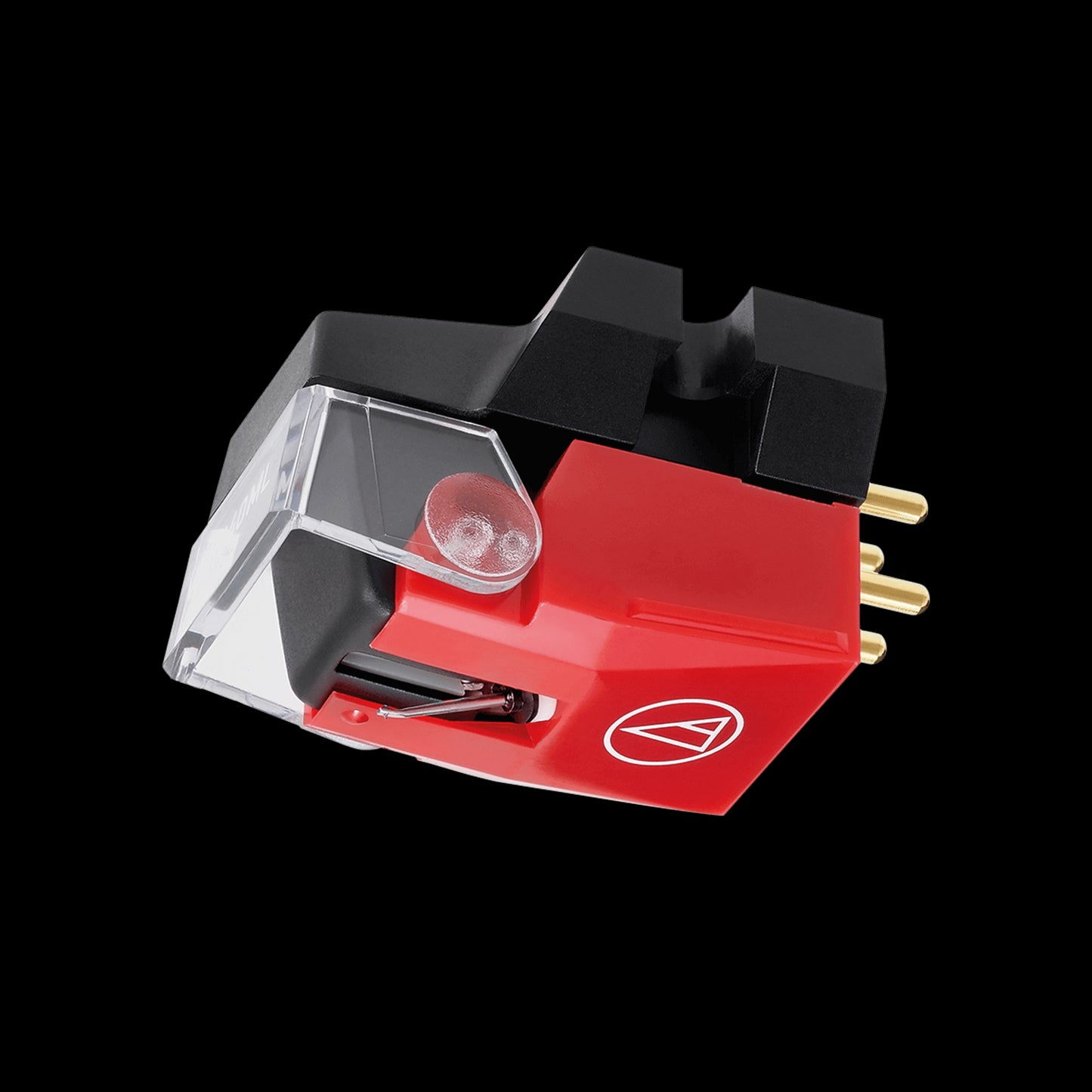

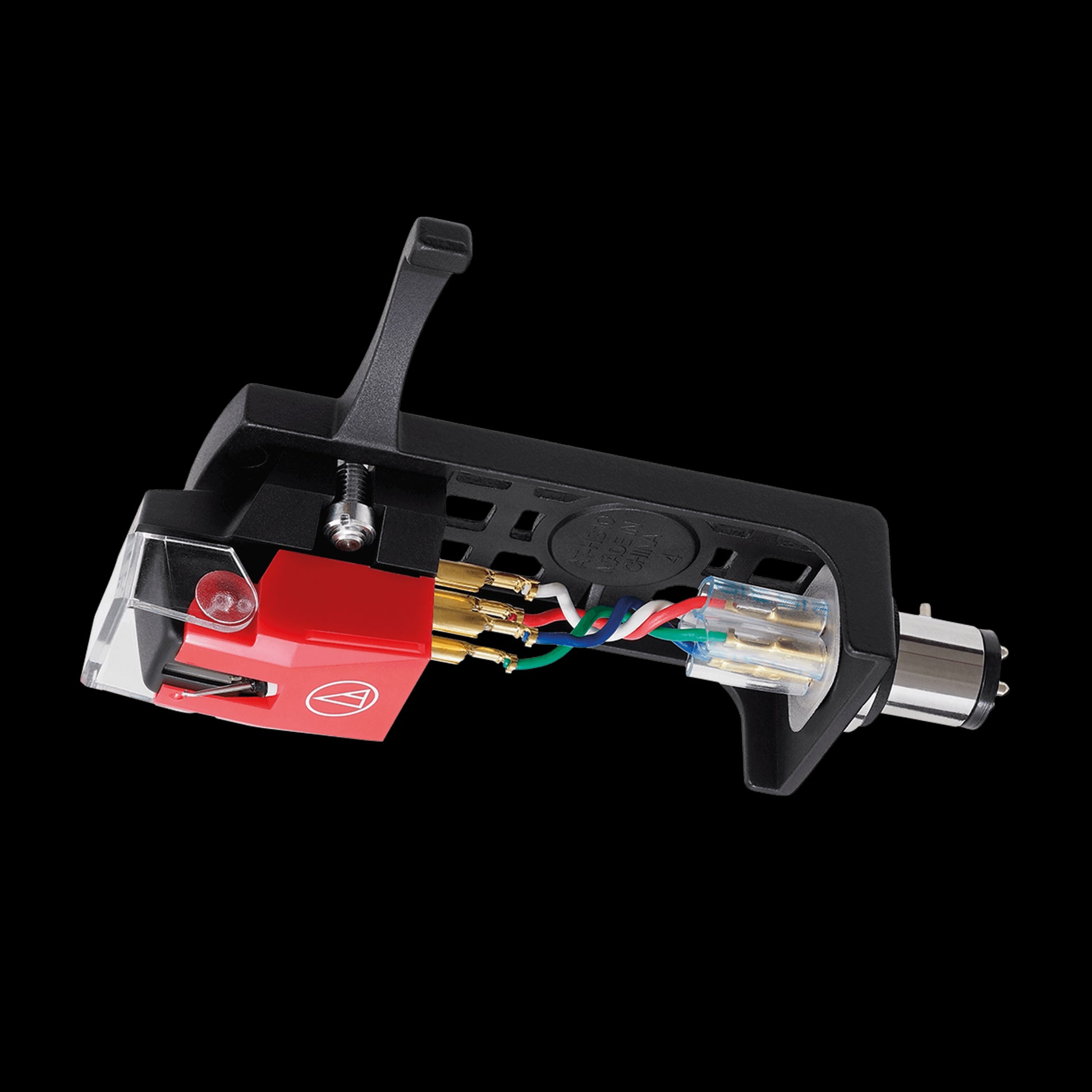

Audio-Technica VM540ML/H Dual Moving Magnet Stereo Cartridge with MicroLine Stylus and AT-HS10BK Headshell

The Audio-Technica VM540ML/H is a premium dual moving magnet stereo cartridge that combines advanced technology with classic design. Featuring a MicroLine stylus and pre-mounted on the AT-HS10BK headshell, it delivers exceptional audio fidelity and nuanced sound reproduction, making it an ideal choice for audiophiles and vinyl enthusiasts alike.

Features

• MicroLine Stylus: The advanced MicroLine stylus design allows for precise tracing of the record grooves, resulting in superior audio reproduction and reduced wear on records.
• Dual Magnet Design: The VM dual magnet system ensures excellent channel separation, providing a more immersive listening experience.
• High Frequency Response: Capable of reproducing frequencies from 20 Hz to 27 kHz, delivering a wide range of sound.
• Low Distortion: The cartridge features low total harmonic distortion (THD) for clear and accurate sound.

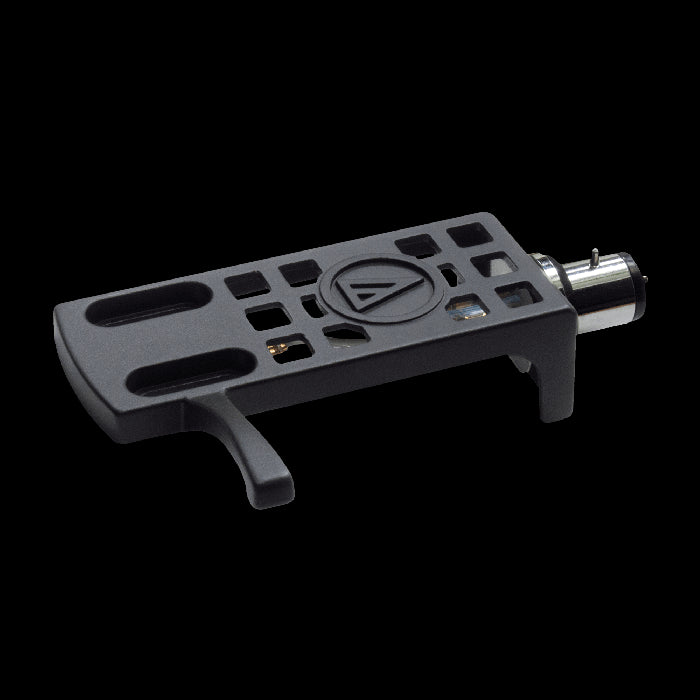

• Easy Installation: The cartridge comes pre-mounted on the AT-HS10BK universal headshell, simplifying installation on most turntables.
• Durable Construction: Built with high-quality materials, ensuring longevity and consistent performance.
• Includes Mounting Hardware: Comes with installation screws, washers, and a cleaning brush for convenient setup.

Specifications

• Type: Moving Magnet
• Stylus Shape: MicroLine
• Frequency Response: 20 - 27,000 Hz
• Channel Separation: 28 dB (1 kHz)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8 - 2.2 g (2.0 g standard)
• Output Voltage: 4.0 mV (at 1 kHz, 5 cm/sec)
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 2,700 ohms (1 kHz)
• Weight: 6.4 g (0.2 oz); Cartridge & Headshell: 16.8 g (0.6 oz)
• Dimensions: Cartridge 17.3 mm (H) x 17.0 mm (W) x 28.2 mm (D)
