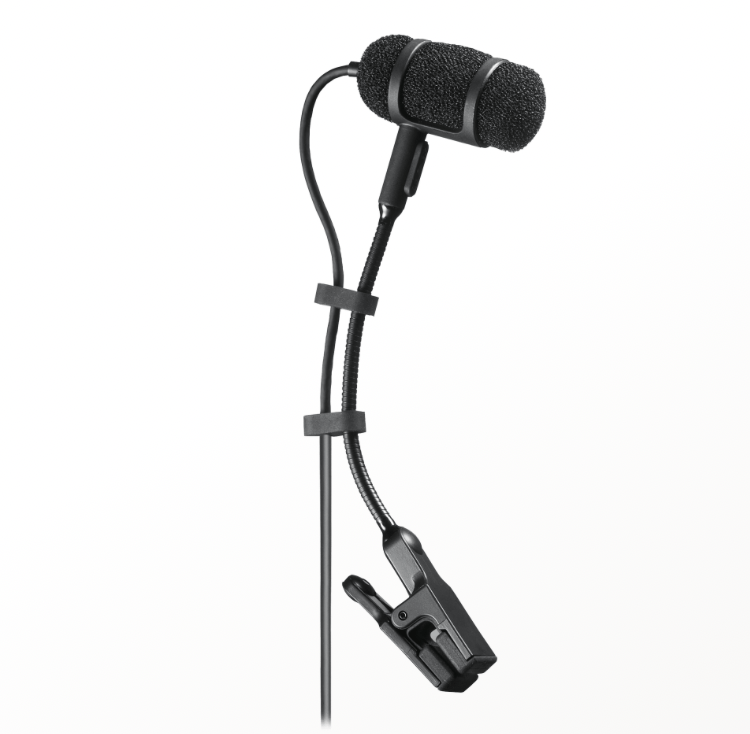

Audio-Technica PRO35 - Instrument Microphone for Live Performance

  Overview

The Audio-Technica PRO35 is crafted for musicians who demand excellence in their audio equipment. Ideal for saxophones, toms, brass, and percussion, the PRO35 excels in high sound pressure level (SPL) environments, perfect for lively stage performances. It captures the subtle nuances of music with its extended frequency response, while the included AT8418 UniMount® clip provides accurate positioning, excellent shock resistance, and element protection. The cardioid polar pattern of the microphone significantly reduces the pickup of sounds from the sides and rear, focusing exclusively on the desired sound source.

Available Configurations

• PRO 35: Features a 6-foot (1.8 m) permanently attached miniature cable with a TA3F connector and comes with the AT8538 power module, which requires phantom power and includes an 80 Hz high-pass filter.
• PRO 35cH: Equipped with a 55-inch (1.4 m) permanently attached miniature cable with a screw-down 4-pin connector, suitable for use with Audio-Technica cH-style body-pack wireless transmitters.
• PRO 35cW: Comes with a 55-inch (1.4 m) permanently attached miniature cable with a locking 4-pin connector, designed for use with Audio-Technica cW-style body-pack wireless transmitters.

Features

• UniMount® Clip: Offers precise microphone positioning, excellent shock resistance, and protection of the microphone element.
• Cardioid Polar Pattern: Reduces the pickup of unwanted sounds from the sides and rear, enhancing isolation of the intended audio source.
• Extended Frequency Response: Captures every detail of the performance, from the deepest lows to the highest highs.

Specifications

• Microphone Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 50-15,000 Hz
• Low Frequency Roll Off: 80 Hz, 18 dB/octave
• Open Circuit Sensitivity: -45 dB (5.6 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: 115 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 64 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical
• Cable: 6-foot (1.8 m), 0.10-inch (2.6 mm) diameter, 2-conductor, shielded with TA3F-type connector
• Dimensions: Microphone - 0.98" (25.0 mm) long, 0.40" (10.2 mm) diameter; Power Module - 3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter
• Weight: Microphone - 0.3 oz (8 g); Power Module - 2.9 oz (81 g)
• Output Connector (Power Module): Integral 3-pin XLRM-type
• Included Accessories: AT8418 UniMount® microphone instrument mount, AT8538 power module (wired only), soft protective pouch
