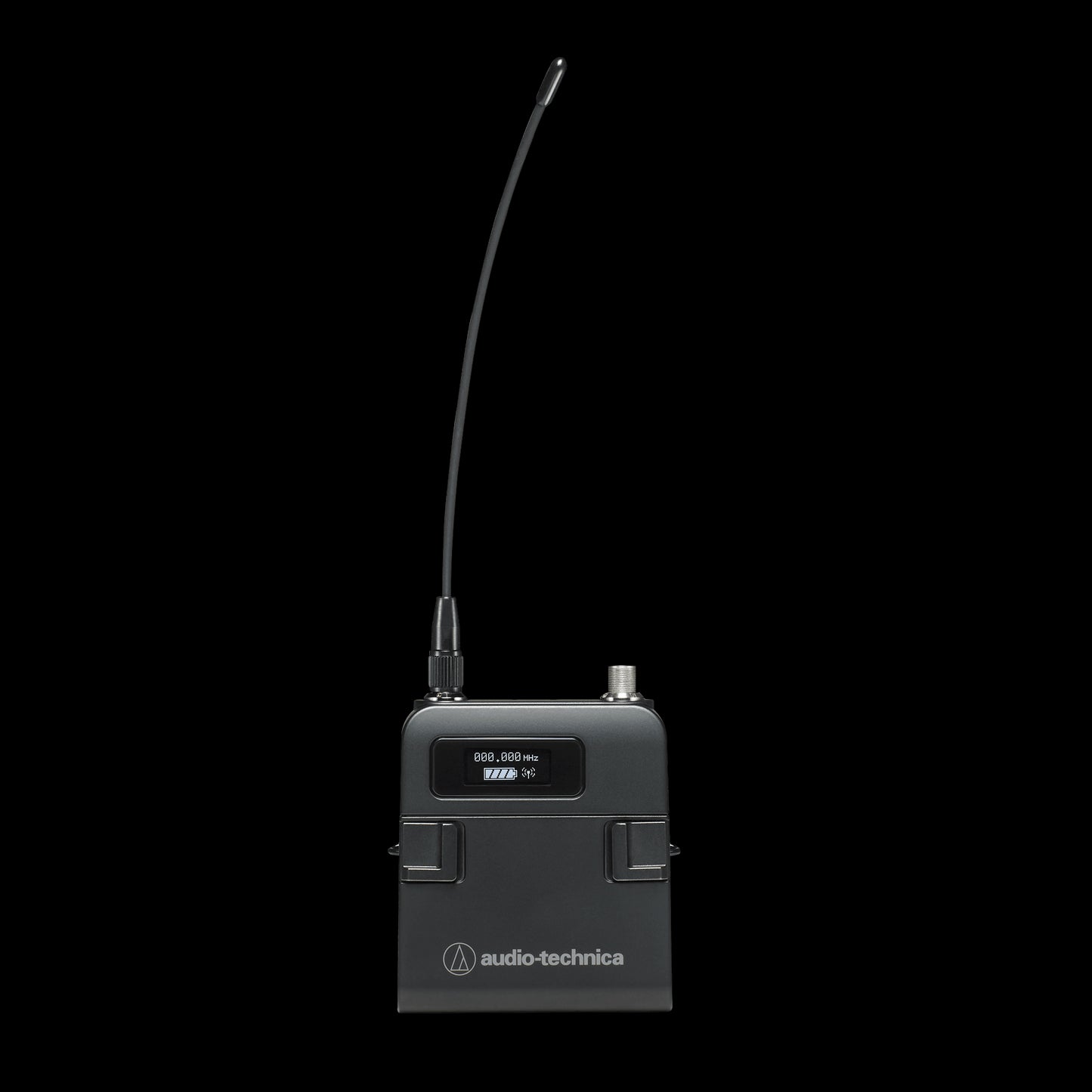

Audio-Technica ATW-T5201 5000 Series Frequency-Agile UHF Body-Pack Transmitter

The Audio-Technica ATW-T5201 is a professional-grade body-pack transmitter designed for use in demanding audio environments, such as concerts, festivals, and houses of worship. Featuring advanced dual-compander circuitry for superior audio quality, a rugged metal body, and a highly visible OLED display, this transmitter ensures reliable performance and ease of use for artists, broadcasters, and presenters worldwide.

Features

• Dual-Compander Circuitry: Processes high and low frequencies separately, delivering exceptional audio quality.
• Rugged Metal Construction: Built for durability and reliability in professional environments.
• OLED Display: Highly visible screen that switches between standard and performance views for key metering.
• Programmable Features: Allows customization to suit specific user needs.
• Switchable RF Power: Offers three output levels (2 mW, 10 mW, 50 mW) for flexible operation.
• cH-Style Connector: Equipped with a secure screw-down 4-pin connector compatible with Audio-Technica lavalier and headworn microphones.
• Auto Squelch Function: Automatically adjusts the squelch setting to optimize operating range and reduce interference.
• Backup Frequency Switch: Quickly switch to a backup frequency to avoid unexpected interference.
• Remote Monitoring: Software-enabled control for monitoring and managing the wireless system.

Specifications

• Operating Frequencies: DE1: 470.125 to 590.000 MHz, EG1: 580.000 to 699.875 MHz, GH1: 700.125 to 819.875 MHz
• Modulation Mode: FM
• Maximum Deviation: ±40 kHz (THD: 10%)
• Frequency Response: 23 Hz to 16,300 Hz (dependent on attached microphone element)
• Operating Range: Up to 100 m (328') in open environments
• Dynamic Range: Mic input: 120 dB or higher (A-weighted), typical; Inst input: 107 dB or higher (A-weighted), typical
• Total Harmonic Distortion: 1.0% or less at 1 kHz, ±17.5 kHz deviation
• Operating Temperature Range: -5°C to +45°C
• RF Power Output: High: 50 mW, Mid: 10 mW, Low: 2 mW (switchable)
• Battery Type: Two 1.5V AA (not included)
• Dimensions: 64 mm × 70 mm × 17 mm (W × D × H)
• Net Weight: Approx. 92 g
