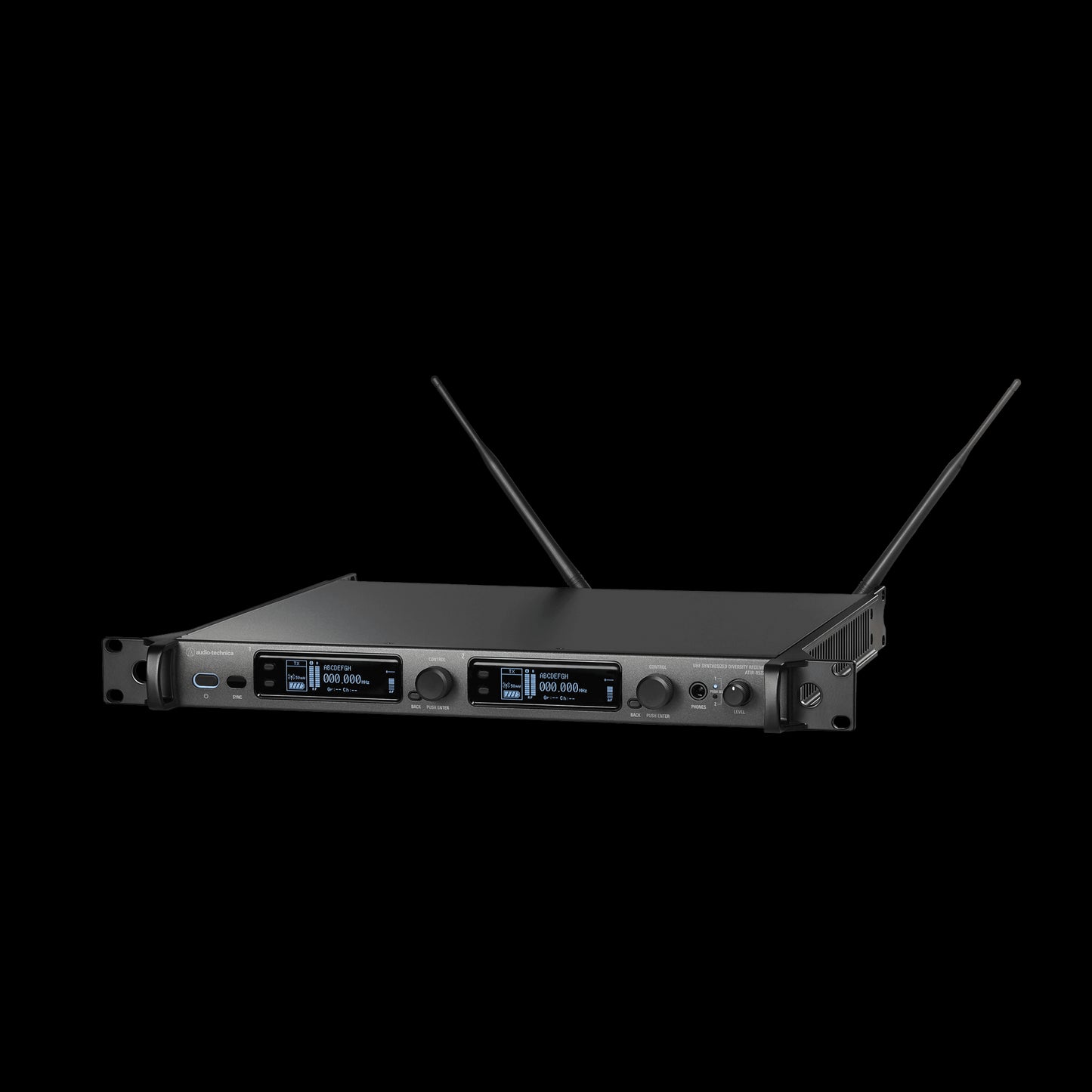

Audio-Technica ATW-R5220DAN 5000 Series Dual-Channel Wireless Receiver with Dante Network Output, G1 Frequency Band

The Audio-Technica ATW-R5220DAN is a cutting-edge dual-channel wireless receiver designed for professional audio environments. Featuring Dante network output, this receiver provides exceptional audio quality and reliable performance for live sound applications, including concerts, festivals, and houses of worship. With advanced features such as dual-compander circuitry, true diversity operation, and extensive tuning bandwidth, it ensures optimal sound transmission in any setting.

Features

• Dante Network Output: Seamlessly integrates into digital audio networks, providing flexibility and ease of use.
• True Diversity Operation: Minimizes dropouts and interference by utilizing two separate receivers to process signals.
• Dual-Compander Circuitry: Processes high and low frequencies separately for enhanced audio clarity.
• Wide Tuning Bandwidth: Offers a tuning bandwidth of 230 MHz (470–700 MHz) for optimal channel selection.
• IR-Sync Functionality: Quickly transfers settings between transmitter and receiver for efficient setup.
• Auto Squelch Function: Automatically adjusts squelch settings to maximize range while minimizing interference.
• Antenna Cascade Output: Connects up to eight receivers, allowing a single pair of antennas to support multiple channels.
• Backup Frequency Switching: Quickly switch to a backup frequency in case of unexpected interference.

Specifications

• Frequency Range: G1 Band (470–700 MHz)
• Tuning Bandwidth: 230 MHz
• Outputs: Two balanced XLR outputs and one Dante output
• Receiver Type: Dual-channel diversity receiver
• Dimensions (W x H x D): 482 x 44 x 200 mm
• Weight: 1.6 kg
• Operating Temperature: 0°C to 50°C
• Power Supply: 100–240V AC, 50/60 Hz
