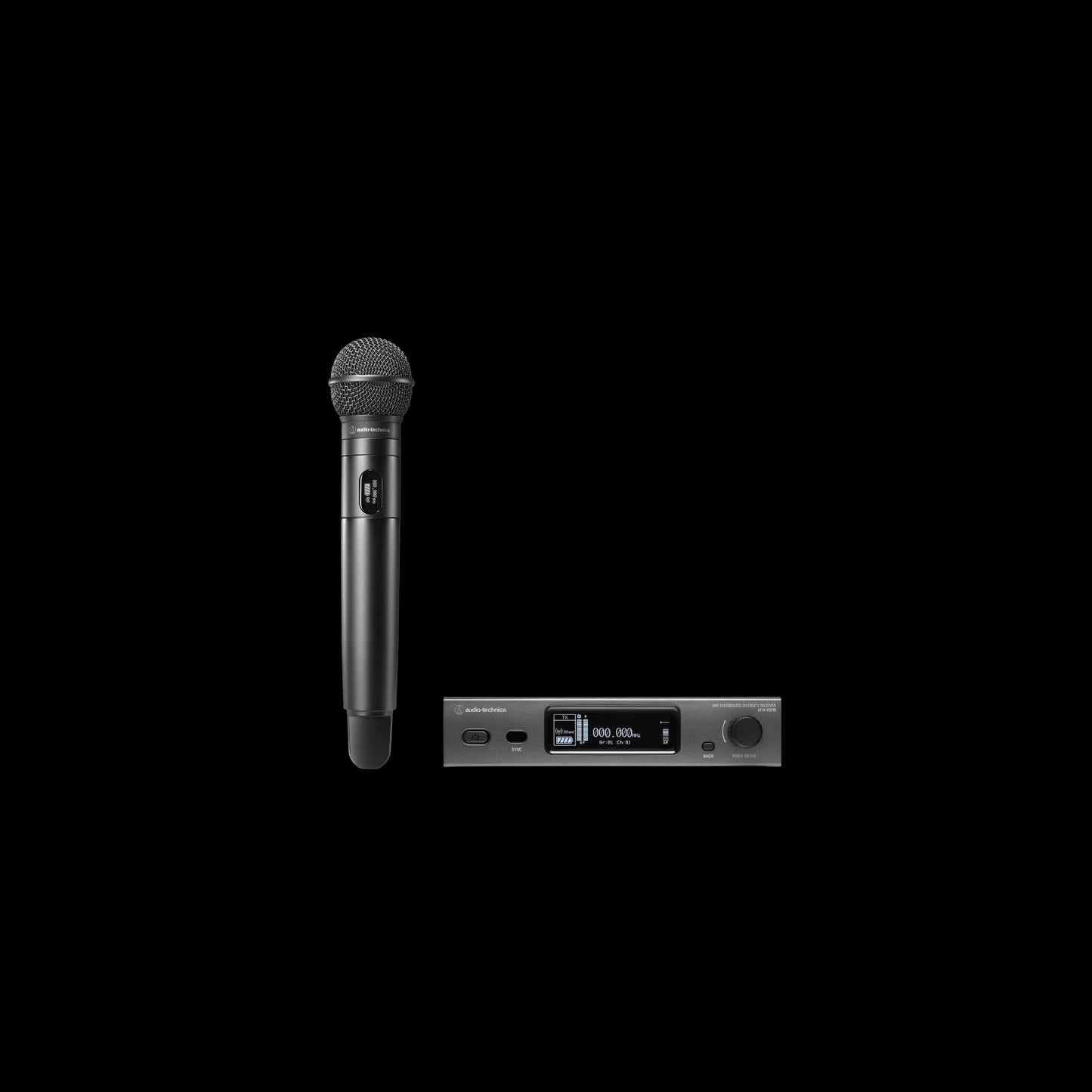

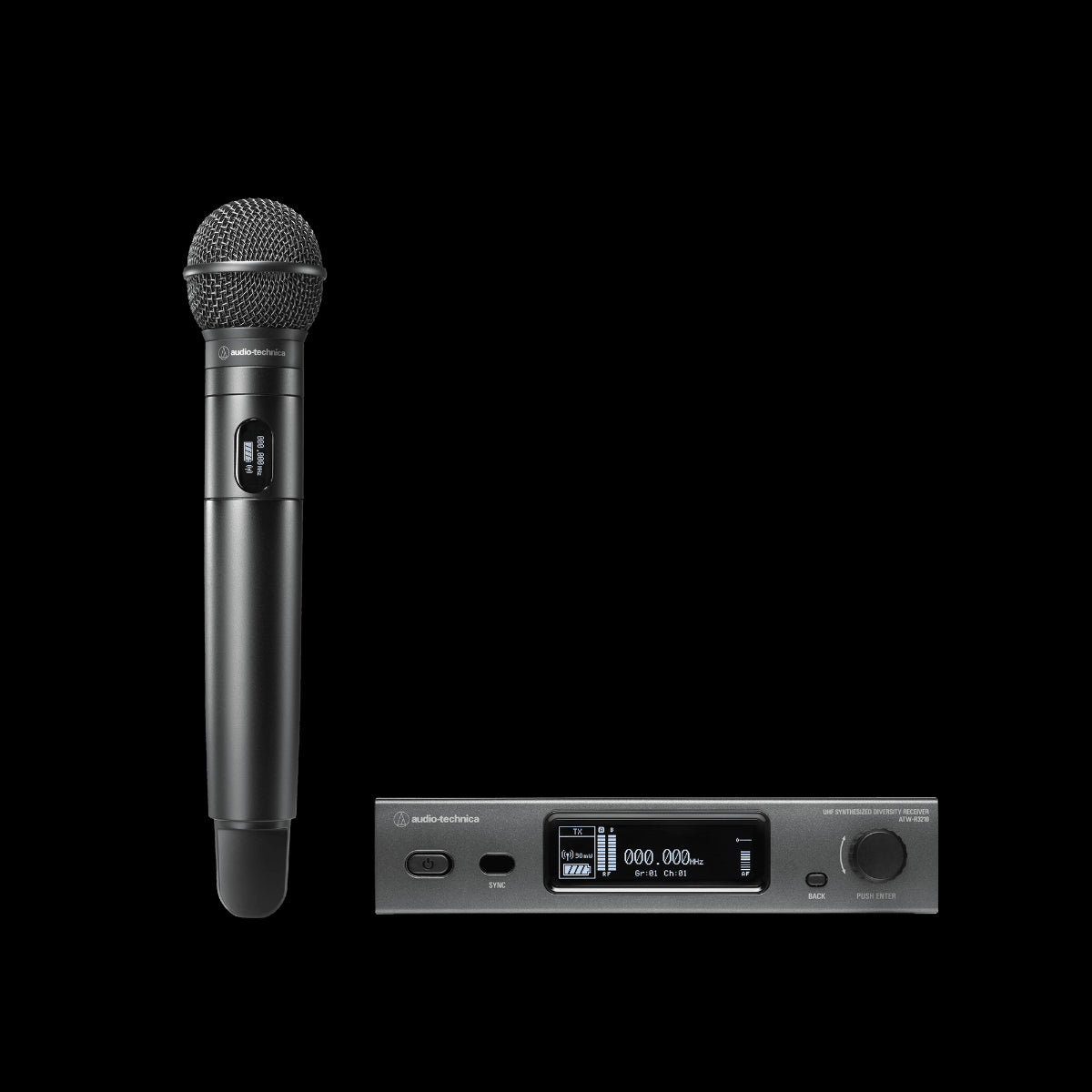

Audio-Technica ATW-3212/C510 3000 Series Wireless System with ATW-R3210 Receiver and ATW-T3202 Handheld Transmitter with C510 Capsule, FG1 Frequency Band

The Audio-Technica ATW-3212/C510 is a professional-grade wireless microphone system designed for superior audio performance. It features the ATW-R3210 receiver and the ATW-T3202 handheld transmitter, equipped with the ATW-C510 cardioid dynamic microphone capsule. This system is ideal for live performances, presentations, and broadcasting, offering a reliable wireless connection with a robust frequency range and exceptional sound quality.

Features

• True Diversity Receiver: Ensures reliable reception by utilizing two antennas to minimize dropouts and interference.
• Interchangeable Microphone Capsule: The ATW-C510 cardioid dynamic microphone capsule provides excellent sound capture and is easily replaceable.
• Wide Frequency Range: Operates within the FG1 frequency band (650.000 to 699.875 MHz) with 1996 frequencies available, allowing for flexible channel selection.
• Extended Operating Range: Up to 100 meters (328 feet) in open environments, providing freedom of movement during performances.
• Long Battery Life: High power output options (30 mW and 10 mW) with up to 9 hours of usage on a single charge, depending on conditions.
• Robust Build Quality: Designed to withstand the rigors of live performance, ensuring durability and longevity.

Specifications

• Operating Frequencies: FG1: 650.000 to 699.875 MHz
• Modulation Mode: FM
• Frequency Response: 25 Hz to 16,700 Hz (depends on microphone element)
• Total Harmonic Distortion: <1.0% at 1 kHz
• Operating Temperature Range: -5°C to +45°C (23°F to 113°F)
• RF Power Output: High: 30 mW, Low: 10 mW
• Receiver Dimensions: 210 mm x 191 mm x 43.4 mm
• Receiver Weight: 1100 g (38.8 oz)
• Transmitter Dimensions: 265 mm x 54 mm
• Transmitter Weight: 330 g (11.6 oz)
